PRODUCT INFO

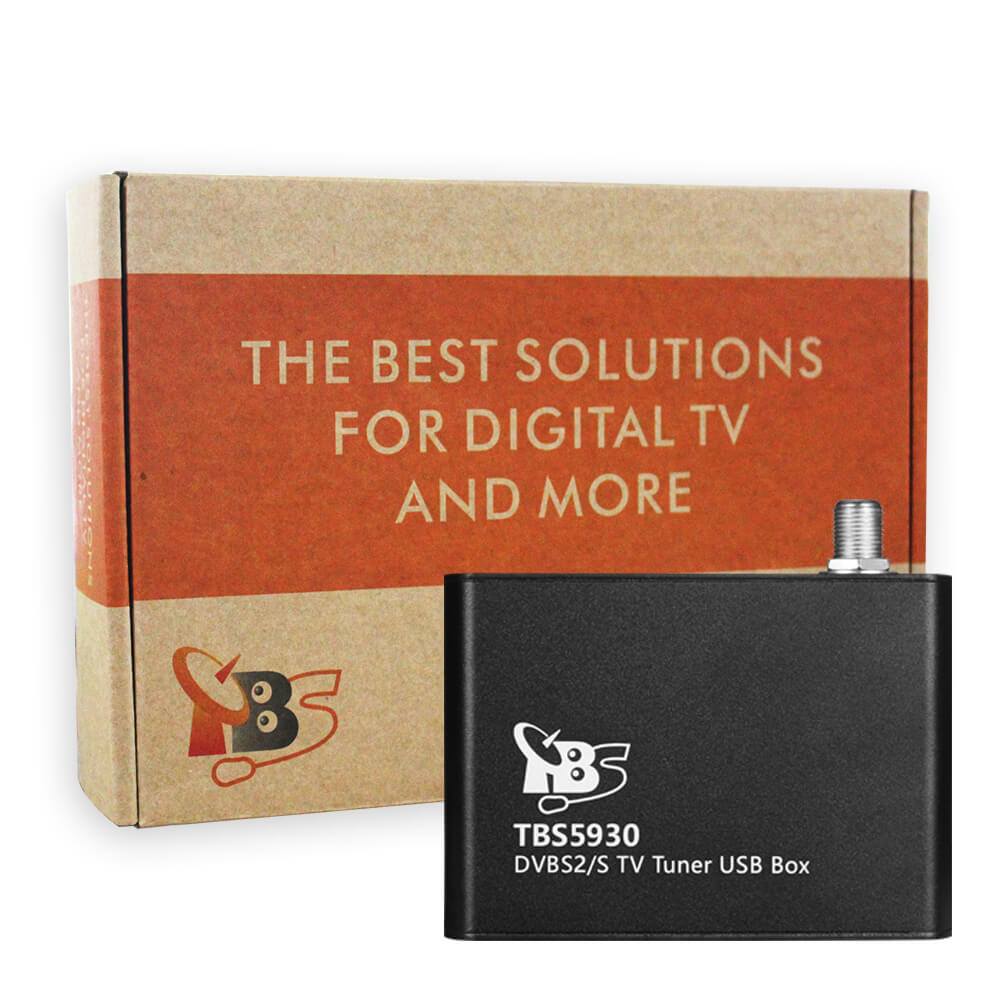

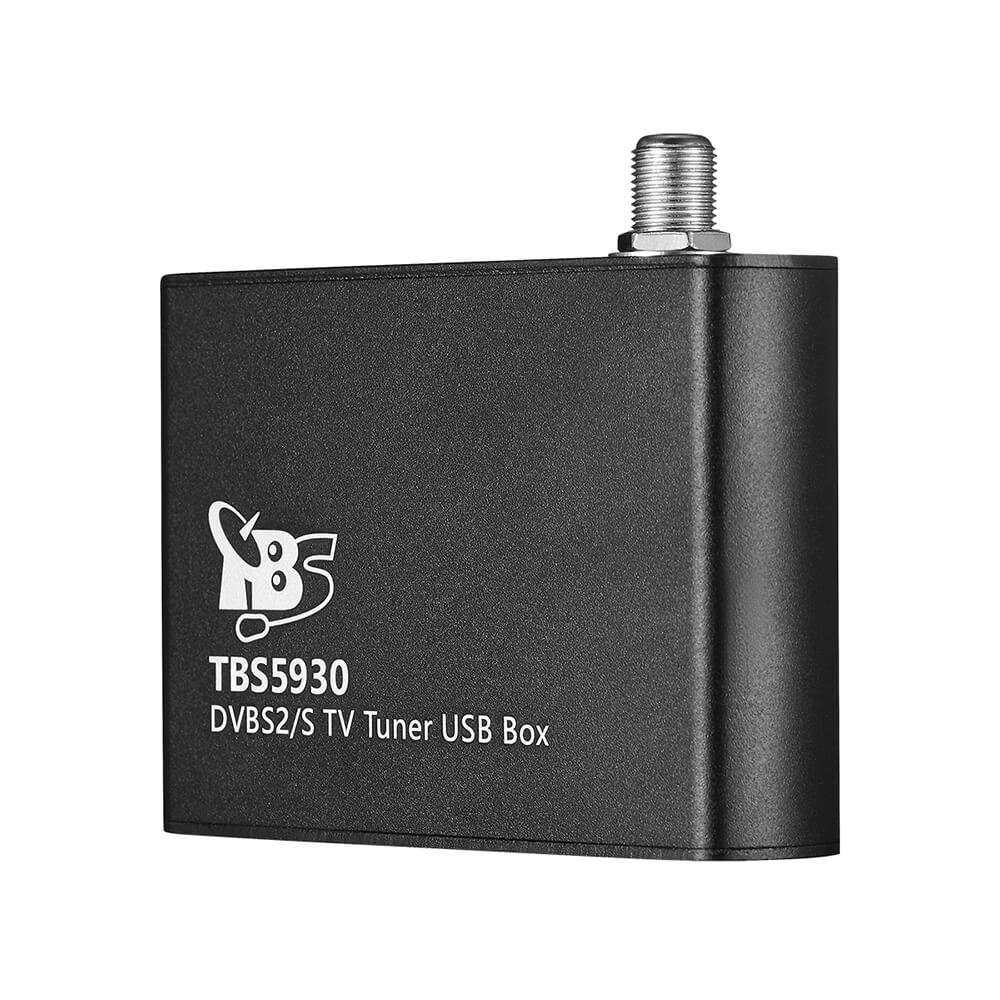

TBS5930 DVB-S2X/S2 TV Tuner USB card is an USB interface digital satellite external TV Tuner box for watching and recording Free to Air satellite TV on both desktop and laptop PC. It supports both DVB-S2 and DVB-S programs receiving. It’s ready with Windows BDA driver and Linux driver. It’s compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV, VDR and many other popular DVB softwares.
TBS5930 equipped with advanced DVB-S2X RF/Demodulator chipsets and it’s built with high quality components, it’s ideal for watching many Free to Air (FTA) satellite TV programs and with VCM supports, which is considered as a professional TV tuner for industrial-level users. The built in hardware blinds can capability allows you to scan satellite programs without knowing exact transponder details, this is very useful, especially for satellite feed hunting.
Main Features:
- Support DVB-S/S2/S2X
- Fast scanning functionality for all media
- Supports VCM and multi stream
- High-speed data download via satellite
- Watch & record satellite TV/ radio programs on PC
Applications:
- Data receiving
- IPTV streaming
- Media monitoring
- Digital content distribution
TECHNICAL DETAILS
Model | TBS5930 | |
Connection | USB 2.0 | |
1x RF in | ||
DVB-S/S2/S2X | ||
DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
DVB-S2X | QPSK | 1/4, 1/3, 2/5 (S2-MODCODs) |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
8/9, 9/10 (S2-MODCODs) | ||
11/45, 4/15, 14/45, 7/15, 8/15, 32/45 | ||
8PSK (8APSK-L) | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
7/15, 8/15, 26/45, 32/45 | ||
16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
7/15, 8/15, 26/45, 3/5, 32/45 | ||
32APSK(32APSK-L) | 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs) 32/45 , 11/15, 7/9, (2/3) |
|
VCM | Yes | |
Symbol rate | 1 ~ 45Msymb/s | |
Power consumption | ||
Input/ Power: | 1 ~ 6W | |
temperature | 0° ~ 78° | |
System Requirements | Windows XP / Vista/ 7/8/10, Linux | |
Available USB 2.0 slot | ||
Dimension: | ||
TV card size | 9 * 7.5 * 2.5 (cm) | |
Gift Box Size | 16.5 * 16 * 8.5 (cm) | |
Weight | 490g | |
Package Contents | 1 * TBS5930 | |
1 * USB cable | ||
1 * Power adapter |
TBS5930 Sensitivity Test
Test conditions: | symbol rate :30Msym/s modulate:8psk FEC :2/3 roll off: 0.35 polit off Unit:dBm |
Frequency (MHz) | Tuner 0 |
950 | -84 |
1000 | -86 |
1050 | -86 |
1100 | -87 |
1200 | -87 |
1300 | -87 |
1400 | -87 |
1500 | -87 |
1600 | -86 |
1700 | -86 |
1800 | -85 |
1900 | -85 |
2000 | -85 |
2100 | -85 |
2150 | -83 |
RF level :-45dBm
CN :11.4dBm
