TBS6281SE

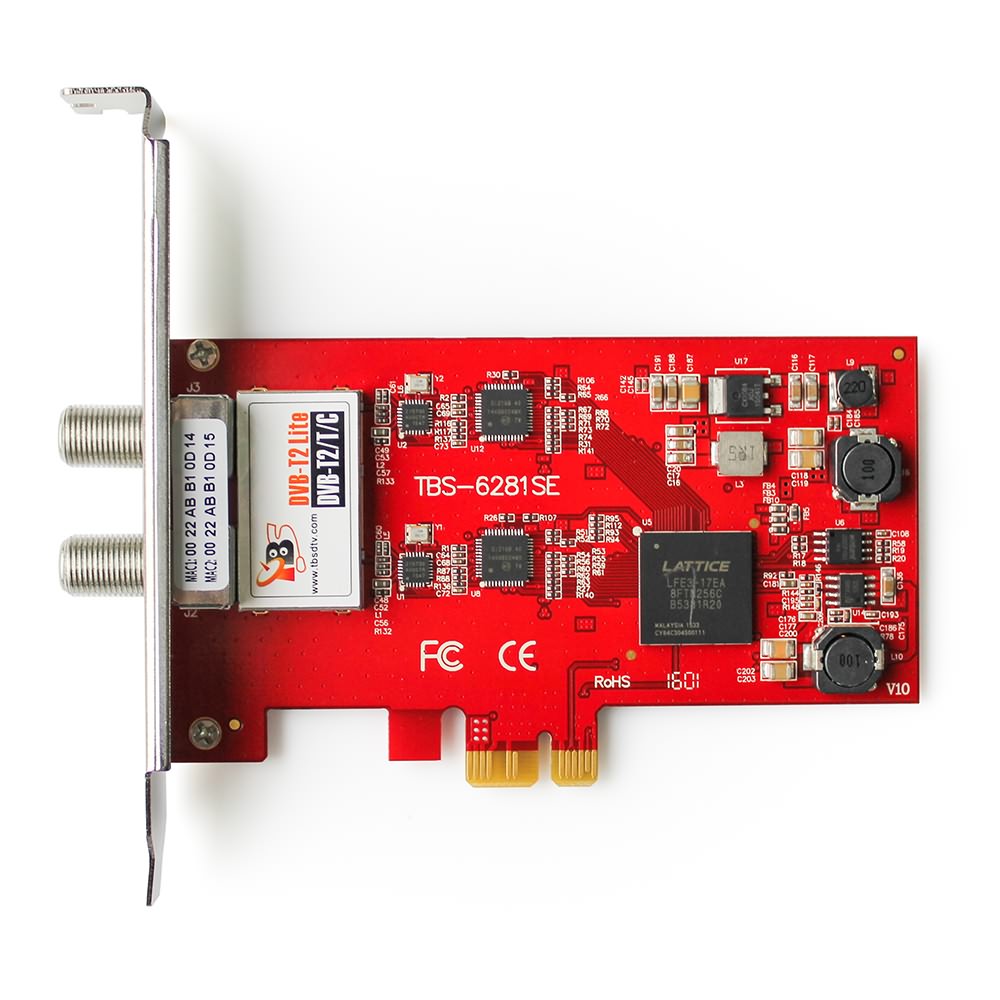

TBS6281SE DVB-T2/T/C TV Tuner PCIe Card

TBS6281SE is a dual tuner PCI-Express interface DVB-T2/T TV Tuner Card which supports watching or recording two different channels from two different frequencies simultaneously.

tbs6281se__main

PRODUCT INFO

TBS6281SE is a dual tuner PCI-Express interface DVB-T2/T TV Tuner Card which supports watching or recording two different channels from two different frequencies simultaneously. TBS 6281 DVB-T2/T Dual Tuner Card can be used as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. It also enables you to pause a live broadcast and continue from where you left with the Time-shifting function.

Main Features:

  • Dual Channel Receiving simultaneously
  • DVB-T2/T/C SD or HD TV receiving
  • Low profile size
  • High-definition video, real-time and scheduled video recording
  • High sensitivity DVB-T2 dual tuner for the best digital TV reception

TECHNICAL DETAILS

Model TBS6281se
DVB-T2/T2Lite/T Receiving Channel VHF band and UHF band
Channel Bandwidth 6, 7, 8 MHz
DVB-T2/ T modulation type QPSK, 16QAM, 64QAM, 256QAM
FFT mode 1K, 2K, 4K, 8K, 16K, 32K
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
IF mode Low IF
Center IF Frequency 3 ~ 5 MHz
Note default 4MHz
RF-Input Impedance 75Ω (IEC-DIN female)
RF-Output Impedance 75Ω (IEC-DIN male)
DVB-C DVB-C and ITU J83 A/B/C
Receiving Frequency 47~862 MHz Tuning Range
Input level -65~-10dBm
Symbol Rate 0.87 to 9Mbaud
16QAM, 32QAM, 64QAM, 128QAM and 256QAM
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
