AS264-4C

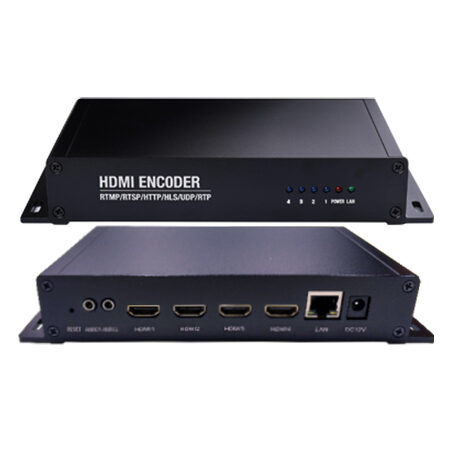

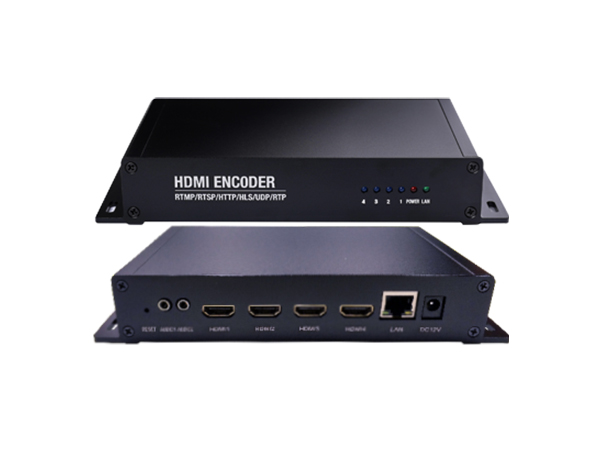

ALPSAT 4 HDMI Input H.264 IP Encoder

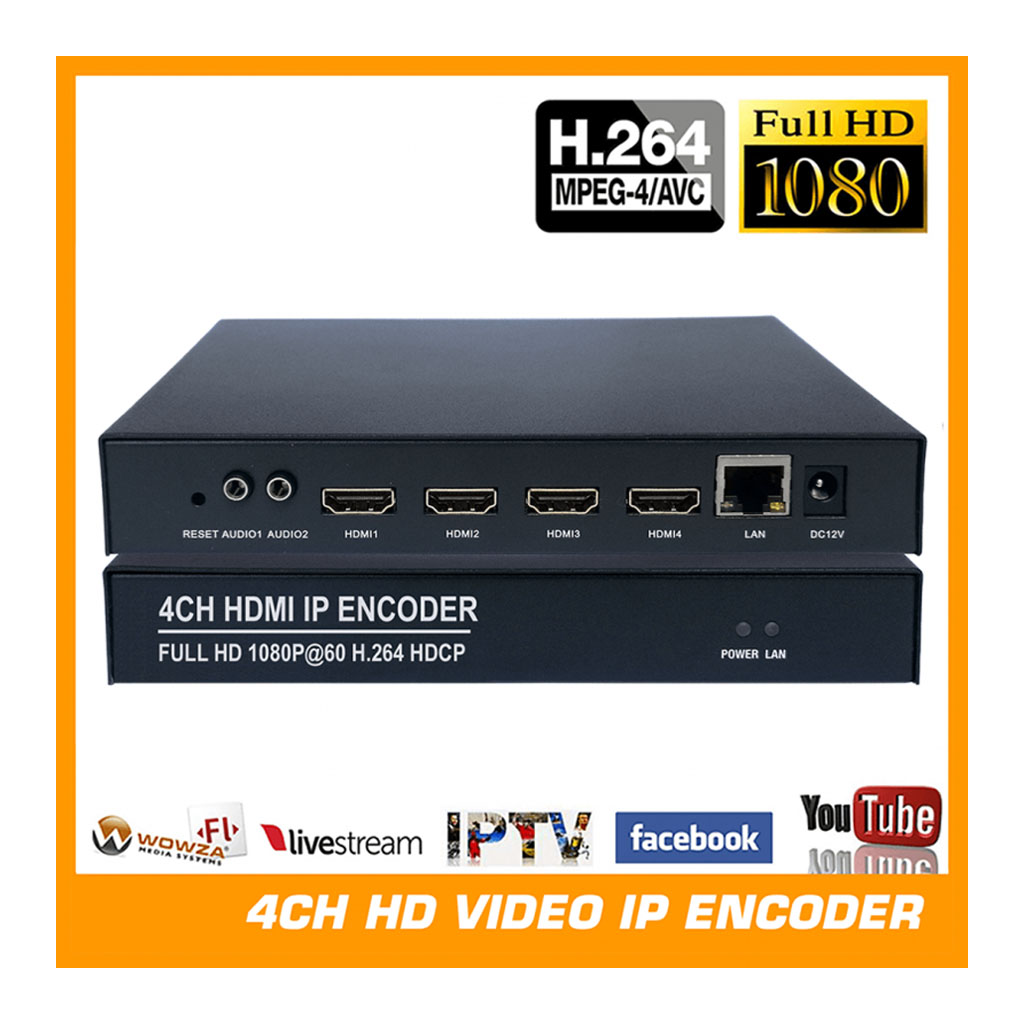

AS264-4C Mini H.264 IP ENCODER is a professional audio and video stream product with 4-channel HDMI input.
KEY FEATURES

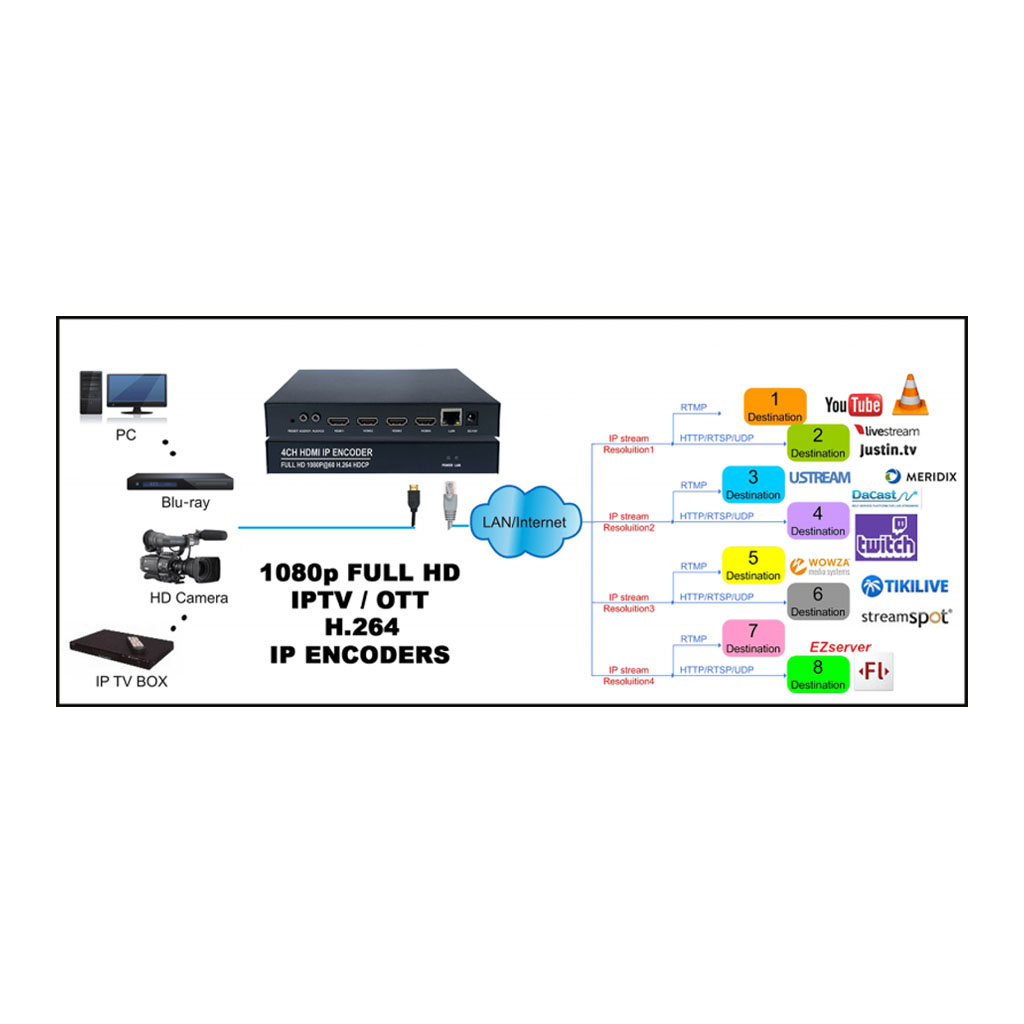

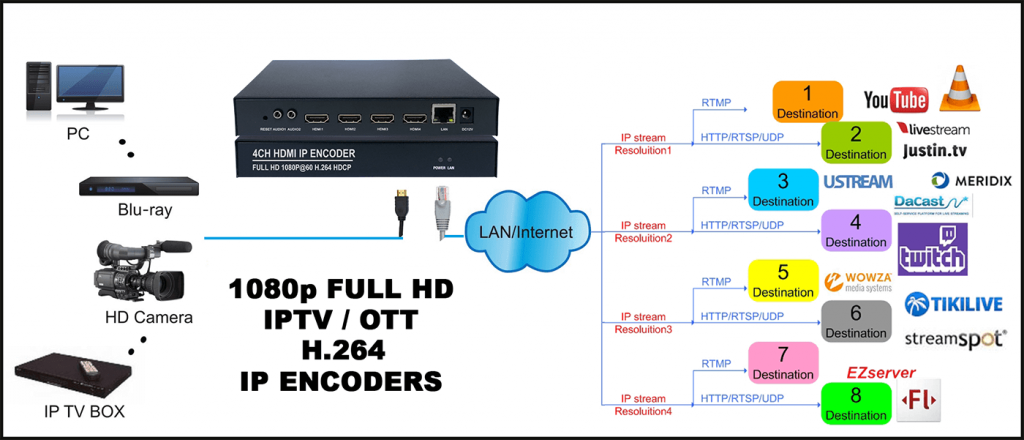

AS-264-4C professional H.264 HDMI encoder is our newest HD audio & video encoding device with powerful functionality. It supports 4 channel HDMI stream of H.264 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264 encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.
TECHNIC DETAILS
| Video | |
| Input | 4x HDMI( 1.4) HDCP |
| Resolution | 1920×1080@60P/50p,1920×1080@60i/50i/1280×720@60p/50p 720x576i/720x480i |
| Encoding | H.264/AVC Baseline/Main/High Profile Level 4.2 |
| Encoding Output FPS | 1080P60(only input 1080P60) |
| Data Rate | 0.16Mbps~32Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, Image Enhancement,Noise Reduction, Sharpening |
| Latency Time | 200ms |
| Audio | |
| Encoding | AAC/AAC+/MP3 |
| Sampling rate | 44100/48000 Hz |
| Bit-rate | 32K/48K/64K/96K/128K/160K/192K/384K |
| Sampling precision | 24 bit |
| System | |
| Ethernet | 1000 Base-T Ethernet interface |
| Protocol | HTTP RTSP RTMP HLS FLV UDP unicast/multicast |
| control interface | WEB Manager |
| General | |
| Dimension (W× L× H) | 200x103x30mm |
| Net Weight | 1kg |
| Temperature | 0-45(work),-20-80(storage) |
| Power | 12V DC 1A |
| Consumption | 10w |
