AS-264WIFI

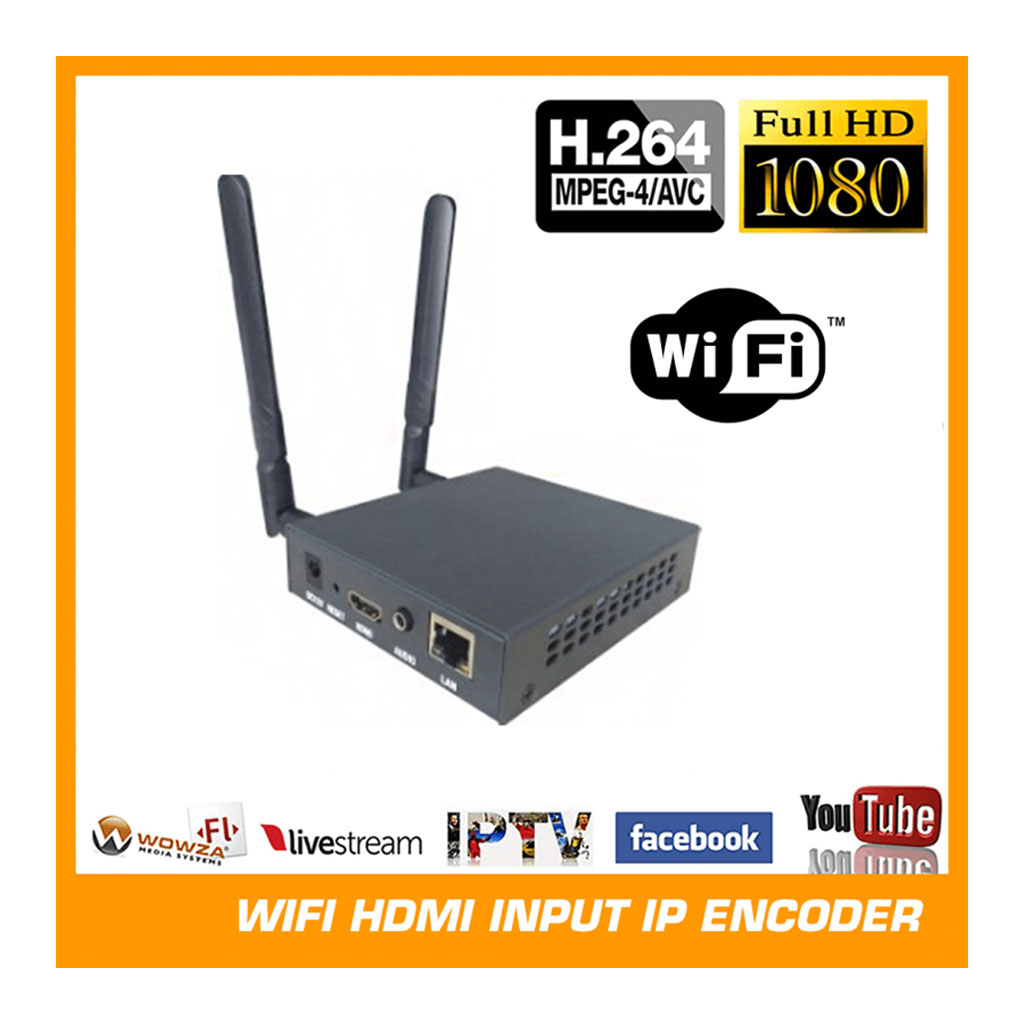

ALPSAT H.264 HDMI IP Encoder WIFI

H.264 IP Encoder with HDMI input HTTP / RTSP / RTP / RTMP / UDP / TS / HLS stream via WiFi-Lan Connection.

AS-264WIFI_main

BASIC FEATURES

AS-264WIFI – H.264 WiFi HDMI Video Encoder is a professional audio & video encoding device. From any HDMI input source, it generates H.264/MPEG-4 video encoding and AAC/MP3 audio code 4 streams compliant via WIFI or LAN with RTMP/RTSP/UDP/HTTP/HLS/FLV/TS protocols.

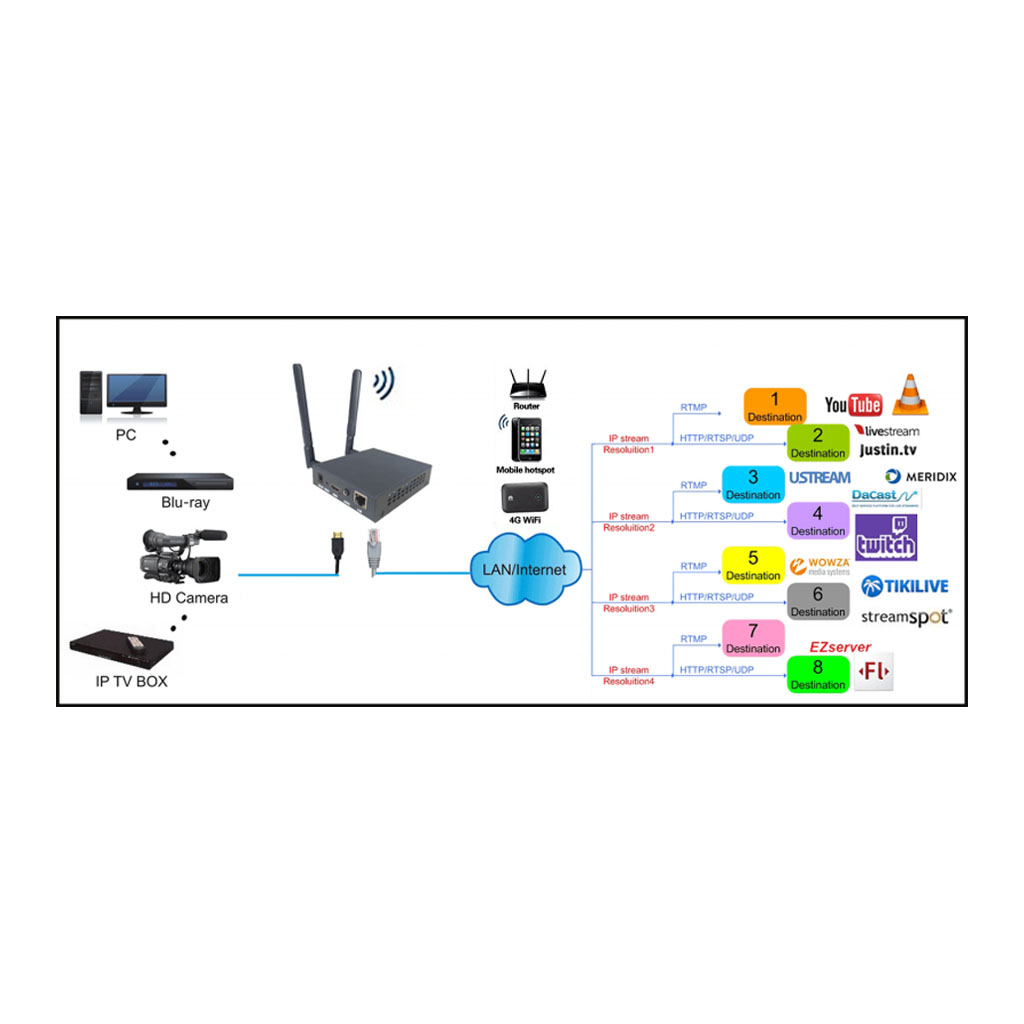

It can be widely applied in IPTV, live stream, broadcast, video conference, remote education, network video record. Have been compatible with most of streaming platforms, you can go live at any time you like ,such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using WOWZA Streaming Server..

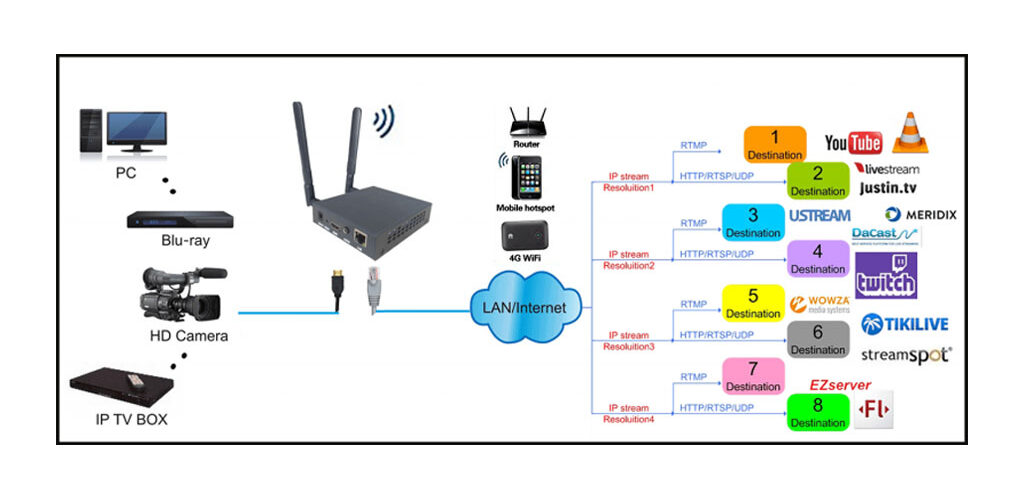

AS-264WIFI (1)

TECHNIC DETAILS

Video Input : 1 channel HDMI input, support HDCP
Resolution : 1920×1080P,1920×1080i,1280×720P
Frame Rate : 60fps
Video Encoding : H.264 High/Main/Baseline Profile
Code Bit Rate : 0.32Mbps~32Mbps
Bit Rate Control : CBR/VBR
GOP Type : IBBP
Video Advanced Pretreatment : De-interlacing, Noise Reduction, Sharpening

Audio
Audio Encoding : AAC,MP3
Sampling Rate : 32K/48K/64K/96K/128K/160K/192K/256K
Sampling Accuracy : 24 bit
Audio Bit Rate : 64Kb/s~384Kb/s

System
RJ45 : 1000 Base-T Ethernet interface
WiFi : Dual band 300M HG WiFi
Protocol : HTTP, UTP, RTSP, RTMP, HLS, FLV, TS,ONVIF
Configuration Interface : WEB operation

Dimension : 77*106*26mm
Weight : 0.45kg
Temperature : 0~45℃(work),-20~80℃(storage)
Power : 12V/DC
Consumption : 7W
