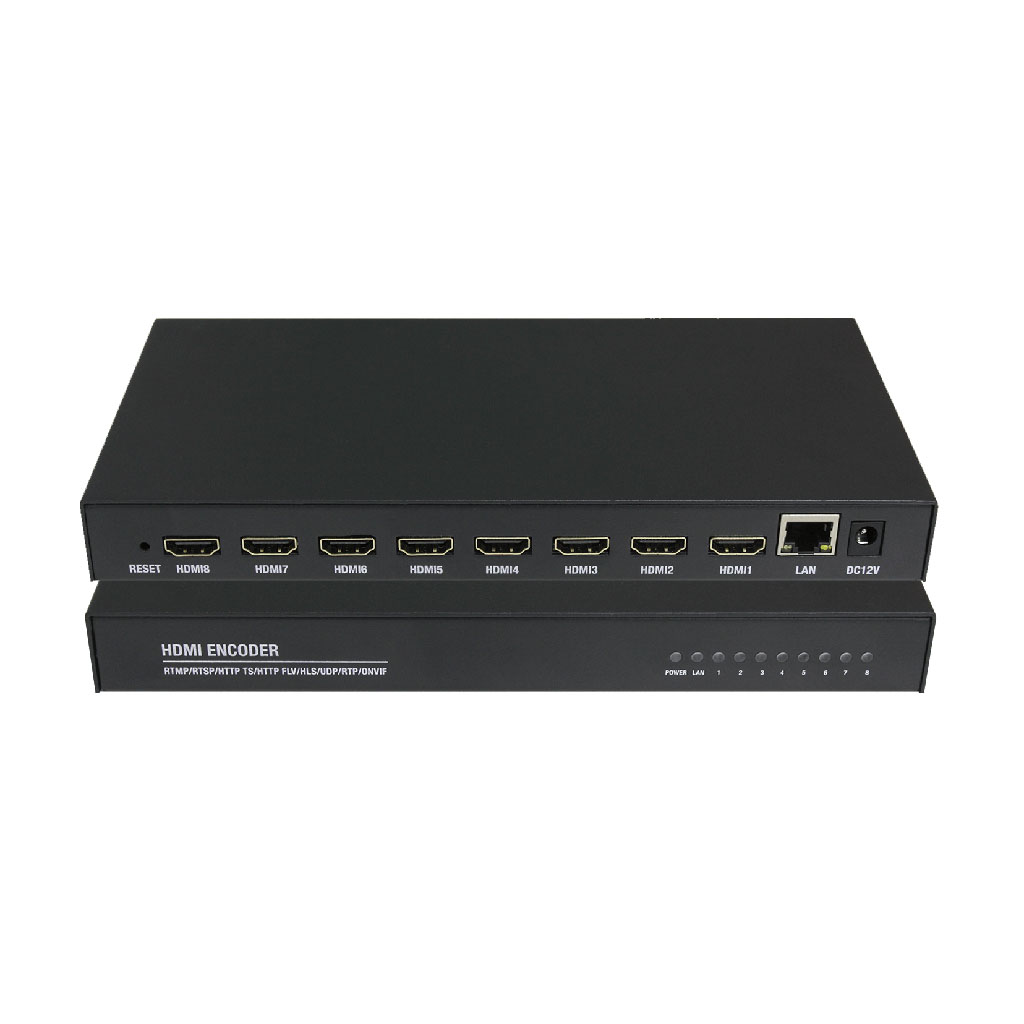

AS264-8C

ALPSAT 8 HDMI Input H.264 IP Encoder

AS264-8C Mini H.264 IP ENCODER is a professional audio and video stream product with 8-channel HDMI input.

AS264-8C_Main

KEY FEATURES

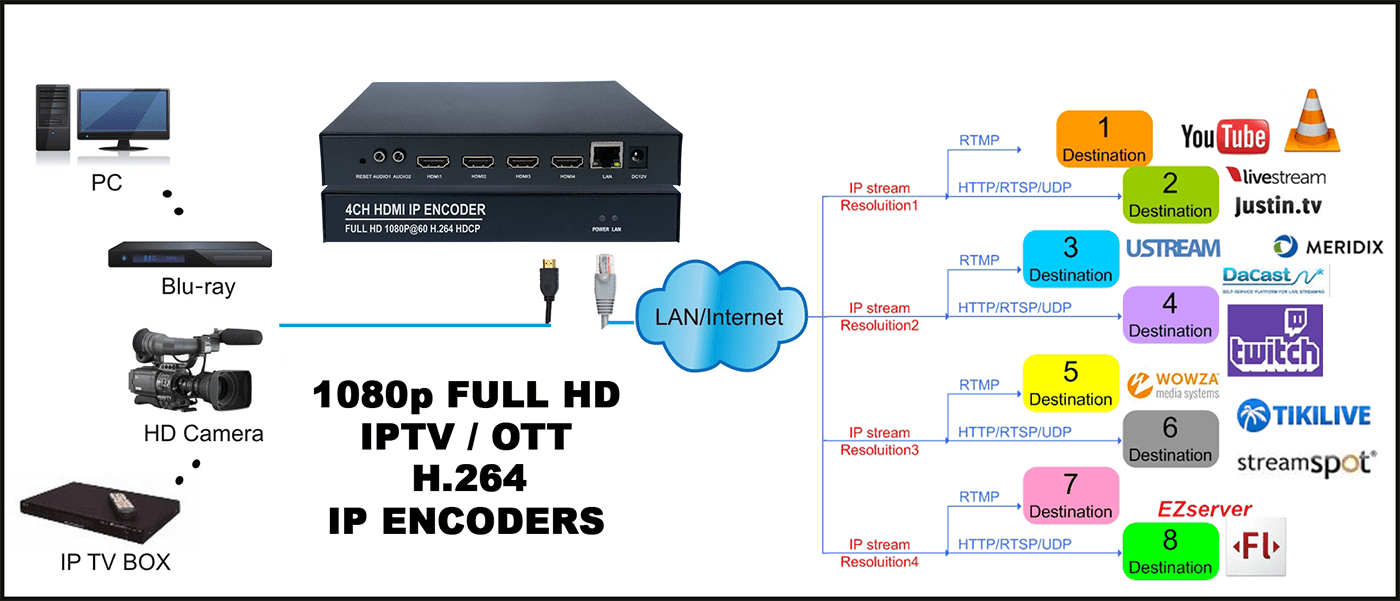

AS-264-8C professional H.264 HDMI encoder is our newest HD audio & video encoding device with powerful functionality. It supports 8-channel HDMI stream of H.264 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264 encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

TECHNICAL DETAILS

Video
Input 8 x HDMI( 1.4) HDCP
Resolution 1920×1080@60P/50p,1920×1080@60i/50i/1280×720@60p/50p 720x576i/720x480i
Encoding H.264/AVC Baseline/Main/High Profile Level 4.2
Encoding Output FPS 1080P60(only input 1080P60)
Data Rate 0.16Mbps~32Mbps
Rate Control CBR/VBR
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Image Enhancement,Noise Reduction, Sharpening
Latency Time 200ms
Audio
Encoding AAC/AAC+/MP3
Sampling rate 44100/48000 Hz
Bit-rate 32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision 24 bit
System
Ethernet 1000 Base-T Ethernet interface
Protocol HTTP RTSP RTMP HLS FLV UDP unicast/multicast
control interface WEB Manager
General
Dimension (W× L× H) 200x103x30mm
Net Weight 1kg
Temperature 0-45(work),-20-80(storage)
Power 12V DC 1A
Consumption 12w
