AS4219-CI

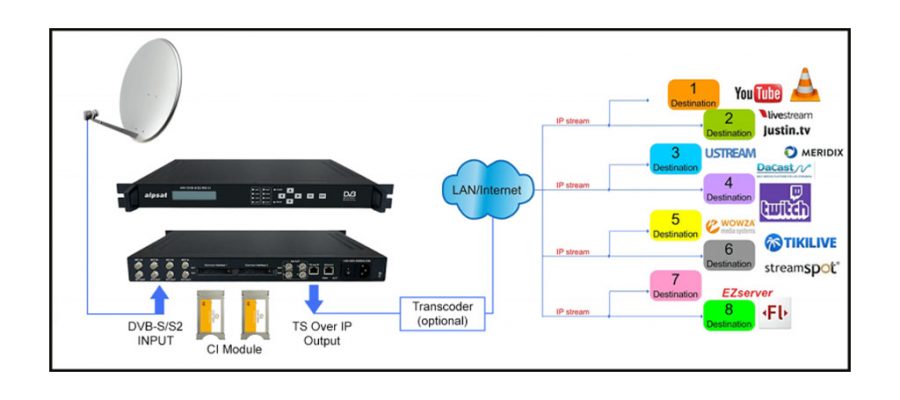

CI Input IRD Gateway has 4 DVB-S / S2 Tuner Rf inputs and 32 SPTS IP stream outputs

OVERVIEW

DVB-S/S2 4-channel IRD with CI supports 4xDVB-S/S2 RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (32×SPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS Pc Software (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.

FUATURES

Support DVB-S/DVB-S2 input
Support 4×CI slots
Support ASI/IP (32×SPTS, TS over UDP) output
Common interface with 4 slots (PCMCIA) supports multi-type of CAM cards
4 slots of PCMCIA module could descramble multi-program stream
Frequency Range: 950~2150Mhz

TECHNICAL DETAILS

Input	RF (DVB-S/S2)	4xDVB-S/S2(950-2150MHz),F-head
Output	4×ASI	DVB standard, 4xBNC interface
Output	IP	32×SPTS,TS over UDP 1000M RJ45 port
General Features	Size	482mm×280mm×44mm
	Temperature Range	0~45°C (Operation); -20~80°C (Storage)
	Power	100-240VAC, 50Hz, 25W
