AS690

ALPSMART Smart WiFi Wireless Dome Camera

With Apple and Andorid devices, you can watch your home, your baby and any place 360º panoramic view from anywhere in the world.

2MP IP Camera that can be viewed from anywhere in the world via WiFi with Apple and Andorid application.
Wherever you are in the world, you can watch your home, your baby and any place 350º Horizontal and 90° vertical night or day from your mobile phone.
You only need to have WiFi Internet for the installation, the AlpSmart Smart Products are devices that everyone can install with the Do It Yourself concept.

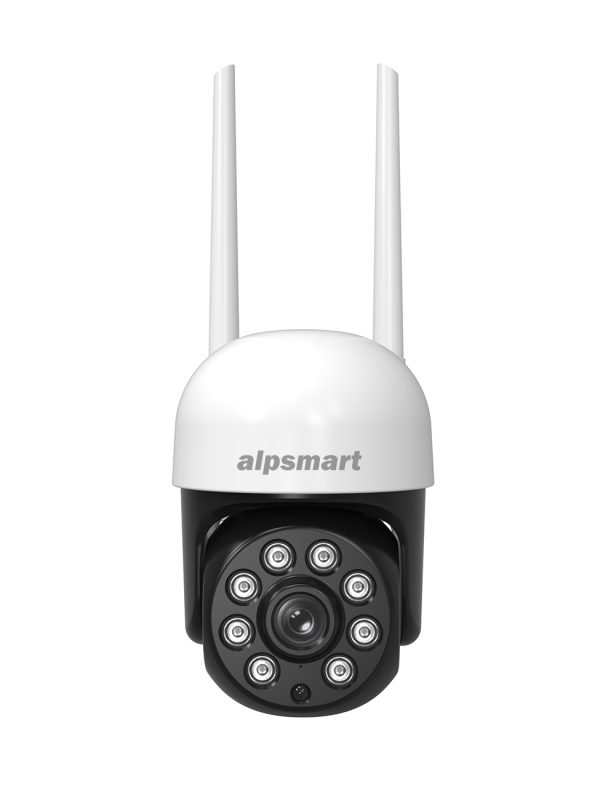

AS690_4
google_home_logo

GOOGLE HOME

Compatible with Google Home. You can control Alpsmart Products with voice commands.

amazonalexa_logo

AMAZON ECHO

Compatible with Amazon Echo. You can control Alpsmart Products with voice commands.

TECHNICAL DETAILS

Sensor: 1/2.7” Full HD CMOS
Resolution: 1920×1080(2MP)
Lens: 3.6mm
Infrared Light: 850nm infrared LED, effective distance of 15 meters
White Light: 2W, 8 meters effective distance
Luminous Color mode: 1Lux,night vision mode 0 Lux
Signal to noise ratio: ≥52dB
Video processing: Auto gain, auto white balance, auto backlight compensation, 3D digital noise reduction
Audio Input: Built-in -38dB noise reduction microphone
Audio Output: Built-in 8 ohm 2W high quality speaker
Wired network: RJ-45 10M/100M
Wireless network: 2.4G IEEE802.11b/g/n
Pairing Way Support: Smart connection, Scan QR code, Wired connection
Other Installation: Wall mountable
Storage: Micro SD card Max 128GB
Waterproof: IP65
Angle: Horizontal 350°, vertical 90°
Power Supply: External DC12V-1A power adapter
Application: AlpSmart Android and iOS

FEATURES

• Resolution 1920×1080
• H.264 encoding method
• Built-in high-quality speaker and high-definition microphone, two-way voice intercom with echo cancellation function
• Equipped with high-power 850nm infrared light, the effective distance of night vision can reach 20 meters.
• High power 2W ambient lighting light.
• Built-in 2 megapixel, 3.6 mm HD lens, maximum 100 degree viewing angle
• Support motion detection, automatic alarm sending to mobile phone
• Supports Alexa and Google Home
• Comes with Micro SD card slot, supports memory card up to 128GB
• Support for various network distribution methods, Smart connection, scan code connection, wired connection
• Supports privacy masking, four privacy masking areas can be set
• WIFI, wired multi-networking to meet different demand environments

USAGE AREAS

In Outdoor Environments for Security and Monitoring
At Doors and Garden Entrances (Lighting with White Light)
In environments where mutual voice communication is required
at work
In environments where image recording is required
In environments where motion and sound detection is required

ADVANTAGES

An application that supports Apple and Android with the name AlpSmart.
Easy installation and fast operation
Image via Application
Screen sizes based on how you hold the phone (vertical/horizontal)
will change.
If you want the image to be more precise, it says SD
You can tap the tile and convert the image to HD.
You can talk to each other by tapping the microphone icon.
You can hear the sounds in the camera environment by pressing the sound icon
or you can turn it off.

BOXES INCLUDES

1 Smart Wi-Fi Dome Camera
1 User Manual
1 USB Cable
1 Pcs Supply Adapter
1 Piece Screwing Accessory Pack

Product Introduction Video

DISCOVER

Phone_app_web

Alpsmart
Mobile App

DOWNLOAD Alpsmart Mobile App on Google Play Store and Apple Store NOW and start using it!

Alpsmart products are smart wifi devices that can be used by everyone with the Plug and Play concept. It is also compatible with Amazon Alexa and Google Home. In this way, apart from the Alpsmart application, you can control your smart home products with voice commands.
