AS-265B

ALPSAT H.265 HDMI IP Encoder

H.265 HDMI input IP Encoder streams 4 different resolution with HTTP / RTSP / RTP / RTMP / UDP / TS / HLS

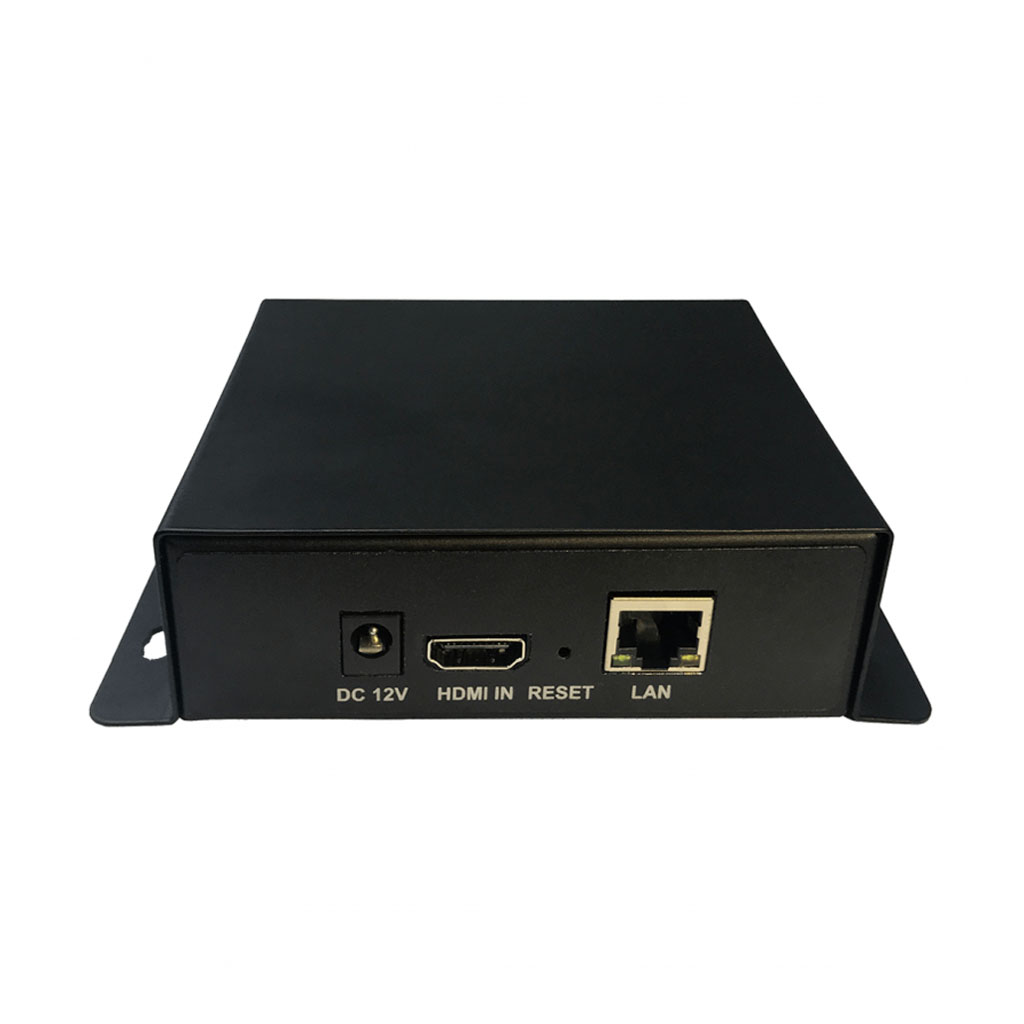

AS-265B_Main

BASIC FEATURES

AS-265A IP ENCODER professional H.265&H.264 HDMI encoder is our newest HD audio & video encoding device with powerful functionality. It supports 1 channel HDMI stream of H.264/H.265 encoding 4 different resolution streams output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

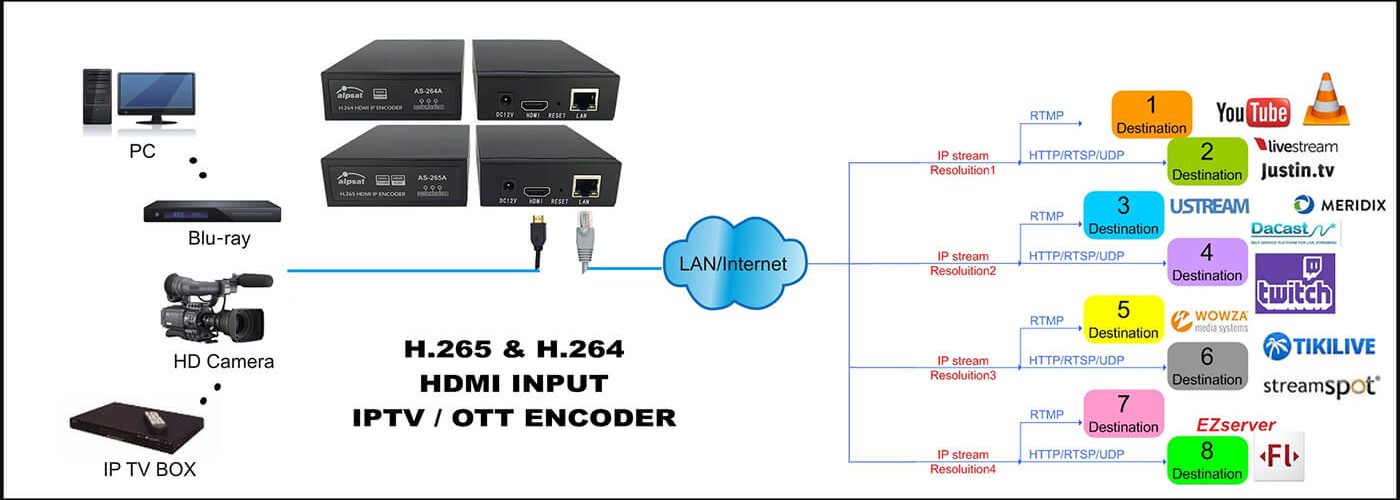

ipencoder_diagram

TECHNIC DETAILS

VIDEO
Input 1x HDMI( 1.4) HDCP
Resolution 1920×1080@60P/50p,1920×1080@60i/50i/1280×720@60p/50p 720x576i/720x480i
Encoding H265 HEVC Main, H.264/AVC Baseline/Main/High Profile Level 4.2
Encoding Output FPS 1080P60(only input 1080P60)
Data Rate 0.16Mbps~32Mbps
Rate Control CBR/VBR
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Image Enhancement,Noise Reduction, Sharpening
Latency Time 200ms
AUDIO
Encoding AAC/AAC+/MP3
Sampling rate 44100/48000 Hz
Bit-rate 32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision 24 bit
SYSTEM
Ethernet 1000 Base-T Ethernet interface
Protocol HTTP RTSP RTMP HLS FLV UDP unicast/multicast
control interface WEB Manager
GENERAL
Dimension (W× L× H) 89x103x29mm (100x70mm PCBA)
Net Weight 0.3kg
Temperature 0-45(work),-20-80(storage)
Power 12V DC 1A
Consumption 5w
