SF03-BT

ALPSAT SF03-BT

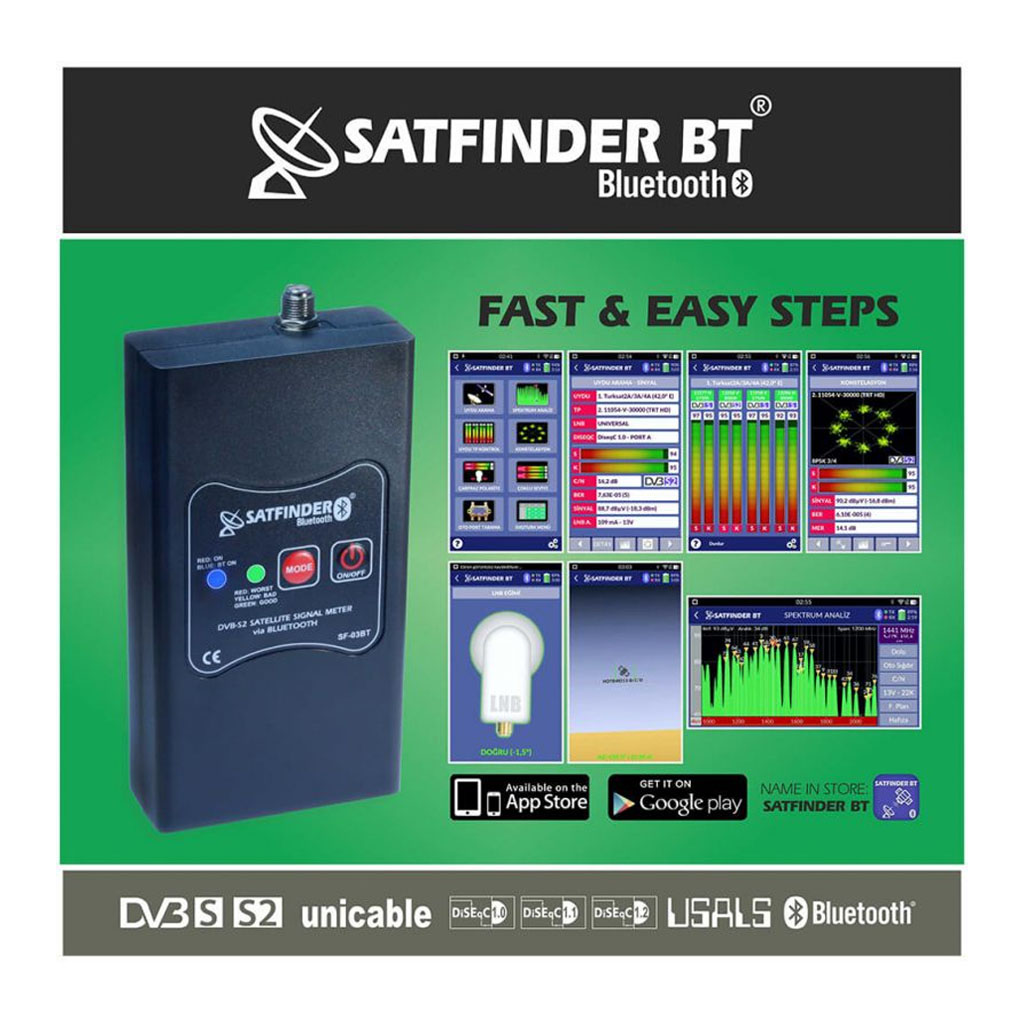

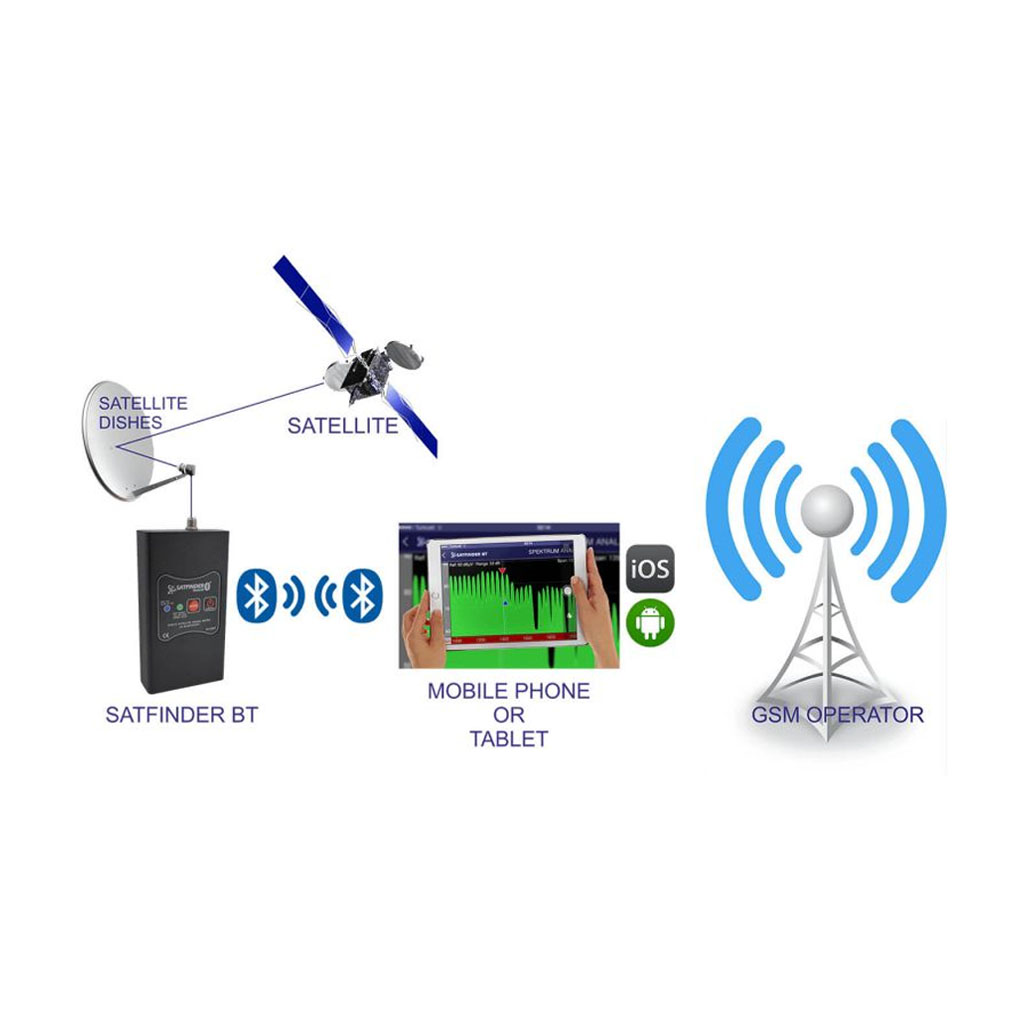

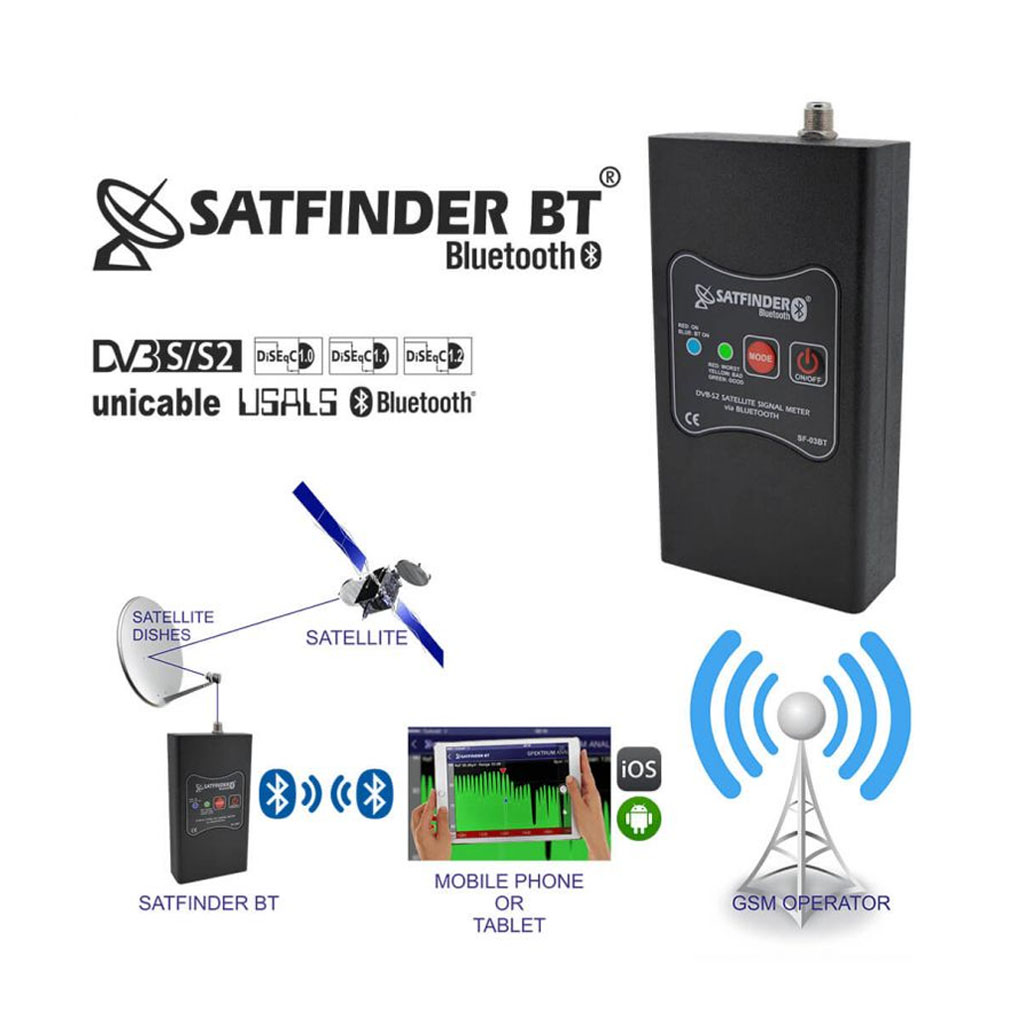

SATFINDER BT communicates via Bluetooth for DVB-S2 Satellite Antenna Signal measurement.

SF03-BT_Main

FEATURES

SATFINDER BT DVB-S2 application, the satellite signal is measured and analyzed with the making an additional patented electronic device. That communicates via Bluetooth; Satellite Antenna Signal measurement dont work without additional equipment.
SATFINDER BT can measure DVBS/S2 Satellite Signals with F.Plan Function Real-Time Spectrum Analyzers . And you can find LNB Skew and Satellite Position with GPS datas.

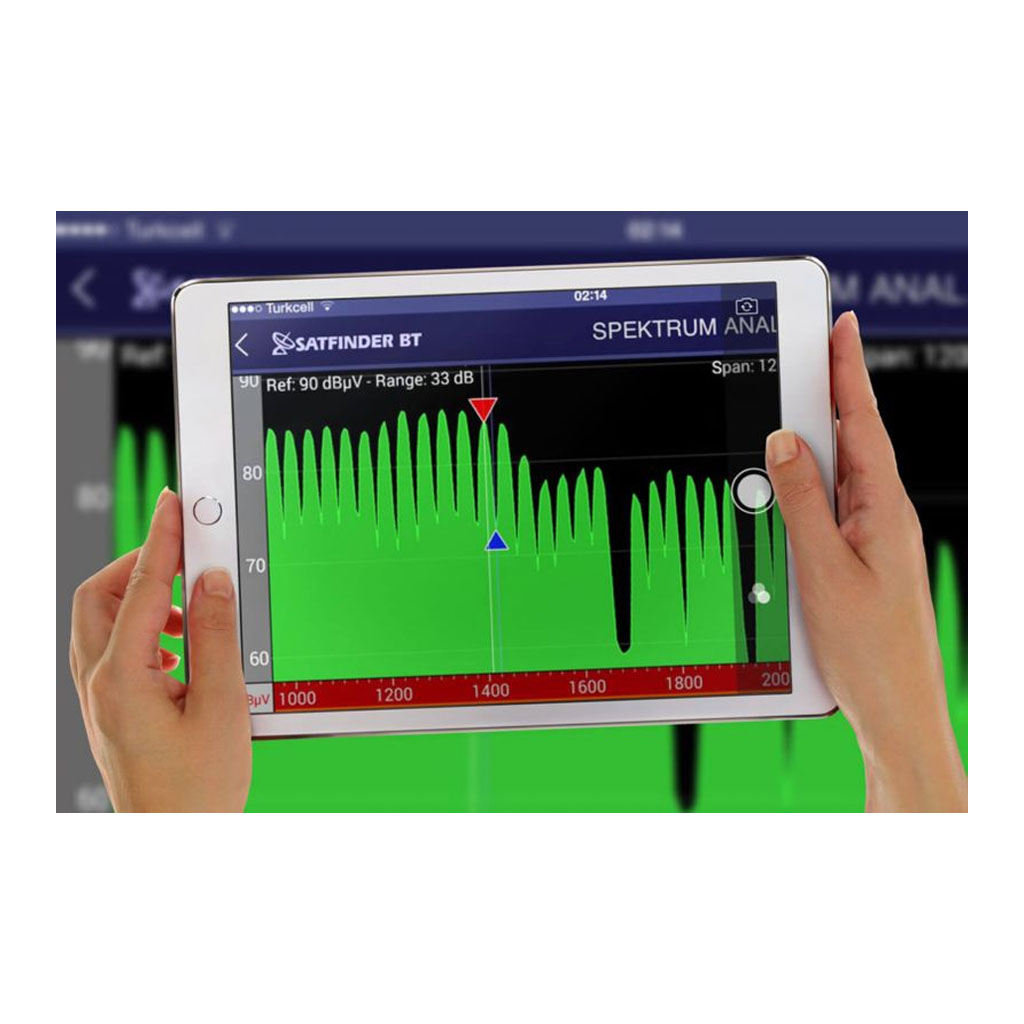

SATFINDER BT is the most accurate professional measurement instrument for to make dish antenna installation. Device can Show 950- 2150MHz frequency spectrum with Android and IOS products.
There are 32 different LNB type memory. In addition, three special User Lnb can be changed . 22KHz Tone – 13/18V can choose .Diseq- C 1.0-1.1-1.2 and supports Multiswitch systems.
You can make installation USALS motor systems and can measure UNICABLE systems over a single cable systems. LNB supply is protected against short
circuit and on-screen alerts are available.
Device 3.7V 2000mAh Lithium Polymer rechargeable battery can also be used via an external 220V AC charger and in-car cigarette lighter charger can charge with the apparatus . Battery packs and charging circuits are protected against short-circuit and over-current. Average working time is up to 3 hours.
English, Turkish, German, French, Portogues, Spanish, Italian Languages OSD Menu is available. Along with carrying case and battery with a weight of just 400 grams is super light measuring instruments .

MAIN MENU

SATELLITE SEARCH

SIGNAL DETAILS

CONSTELLATION

TP CONTROL

MULTI LEVEL CONTROL

AUTO DISEQC SEARCH

TABLE SEARCH

SATELLITE DIRECTION

LNB SKEW

SPEKTRUM ANALİZ

TECHNIC DETAILS

• Full Band Spectrum Analyzer Real-time ( 350ms )
• dBuV , dBmV or dBm signal strength indicator
• Level and BER measurement
• Detailed display of signal quality (BER evaluation)
• S/N and C/N measurement
• Constellation I/Q Diagram
• 250 Satellite Capacity
• High quality gold-plated motherboard .
• LNB Supply : 13/18V , 22 kHz – 500/650mA
• Ka/Ku/C band support.
• V/H and L/R selectable polarity .
• KA-BAND L.O. Frequency: 17.25-20.25 GHz selectable
• 32 LNB Type and 3 Type interchangeable User Lnb

• Low Threshold level DVBS2 Tuner with ST Processor
• Level range: -65 dBm to – 25dBm
• FEC Qpsk 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
• FEC 8psk 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
• Symbol Rate: 2 to 45Msps DVBS,DSS,QPSK and 8PSK-DVBS2
• Auto DiSEqC 1.0 , 1.1, 1.2 Recognition
• DiSEqC 1.2 and USALS Motor Control
• F – Connector Input
• Software update via Smart Phones.
• Satellite position detection max 1 second.
• Easy to use with small and light weight design
• Long life Lithium- Poly battery ( 2000mAh )
• 3 hours of battery lifetime (80-100mA LNB current)
• 2-hour shorter battery charging time

SATFINDER BT TEST RESULTS

BOX INCLUDES

1 pc SATFINDER BT
1 pc Black Cover Bag
1 pc User Guide
1 pc Charger
1 pc Car Charger
1 pc Phone Strap
1 pc F-F Connector

FILES AND DOCUMENTS

File Name Version Date Software Firmware Manual Brochure
SATFINDER BT 31.12.2018  Open  Download  Open  Download
