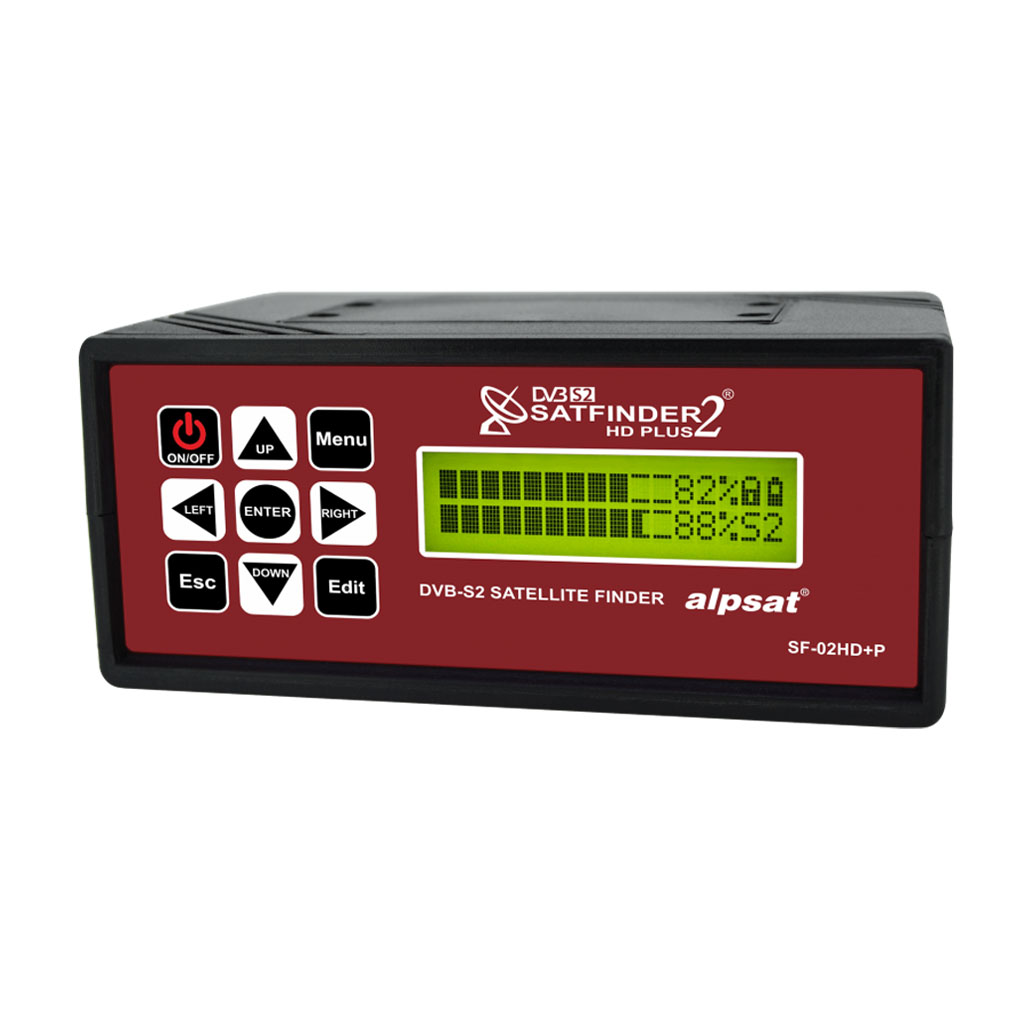

SF02HD+PLUS

ALPSAT SATFINDER 2 HD+PLUS

SATFINDER 2 HD PLUS fast and easy satellite finder equipments for semi professional DVB-S/DVB-S2 installers.

SF02HD+PLUS

SATFINDER 2 HD PLUS BASIC FEATURES

SATFINDER 2 HD PLUS fast and easy satellite finder equipments for semi professional DVB-S/DVB-S2 installers.
Touch screen membrane: Easy and fast usage with the sensitive touch screen buttons.
DVB-S2 Tuner : You may adjust the signals quickly and with precision via DVB-S / DV-S2 Serit Tuner
ComPort Connection: You can update the software of your unit and download frequencies by means of the COM Port connection.
Easily Charged: You may easily charge your device in any condition with the charging adapter and with the lighter charging equipment in your vehicle.
LCD Screen : You may use your device at noon and night with its 16X2 led illuminated LCD screen.
Protection Bag: Your device will be even more durable with its robust and durable bag which may be worn on your waist and neck.
6 Different Languages : Turkish – English – Dutch – German – Spanish – French

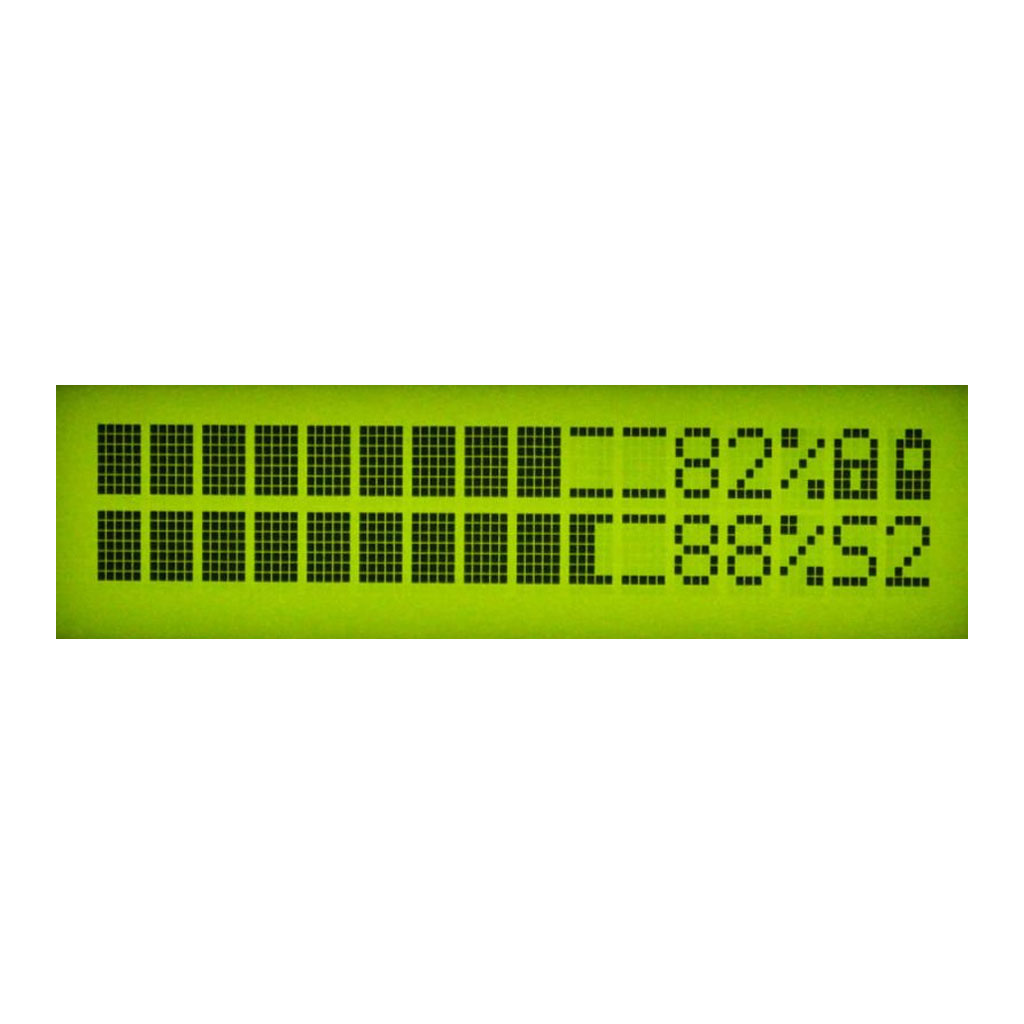

SATFINDER 2 HD PLUS SCREEN SHOTS

LNB SELECT

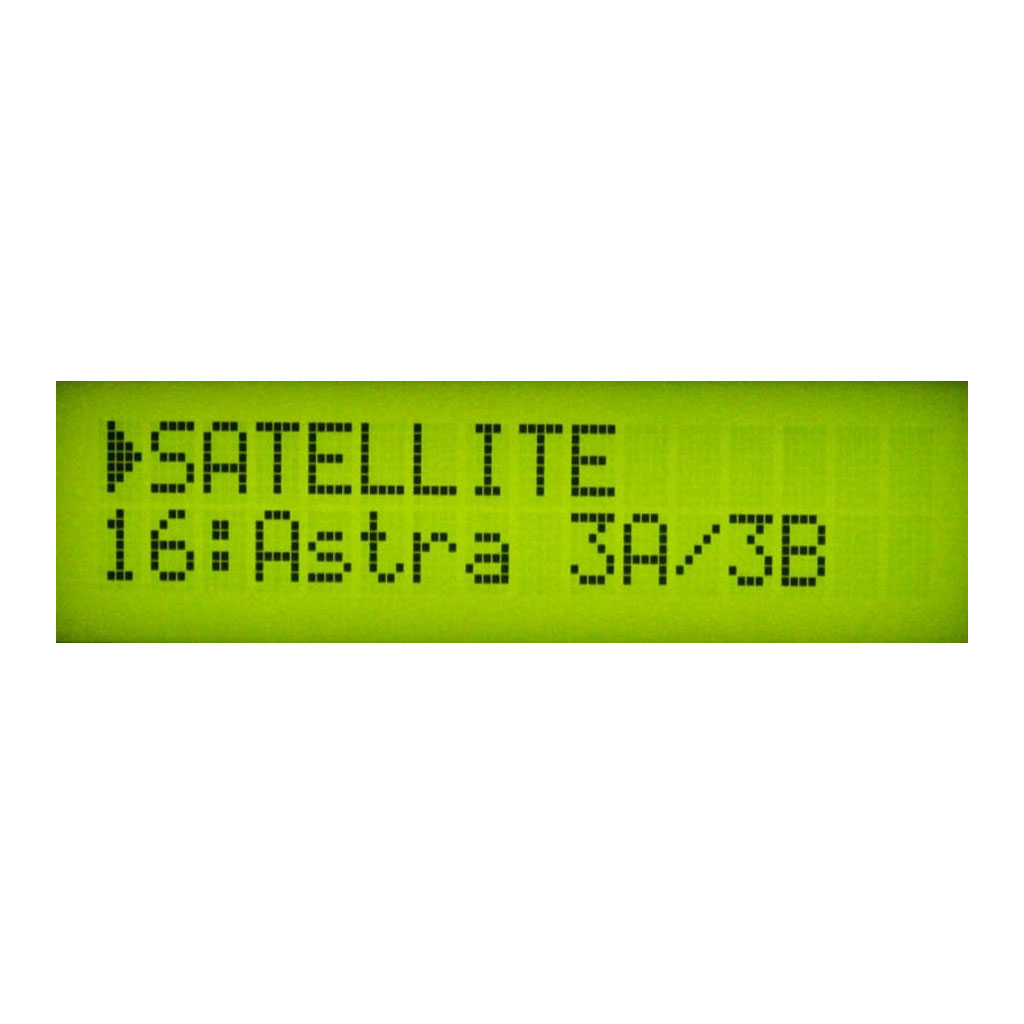

SATELLITE SELECT

TP SELECT

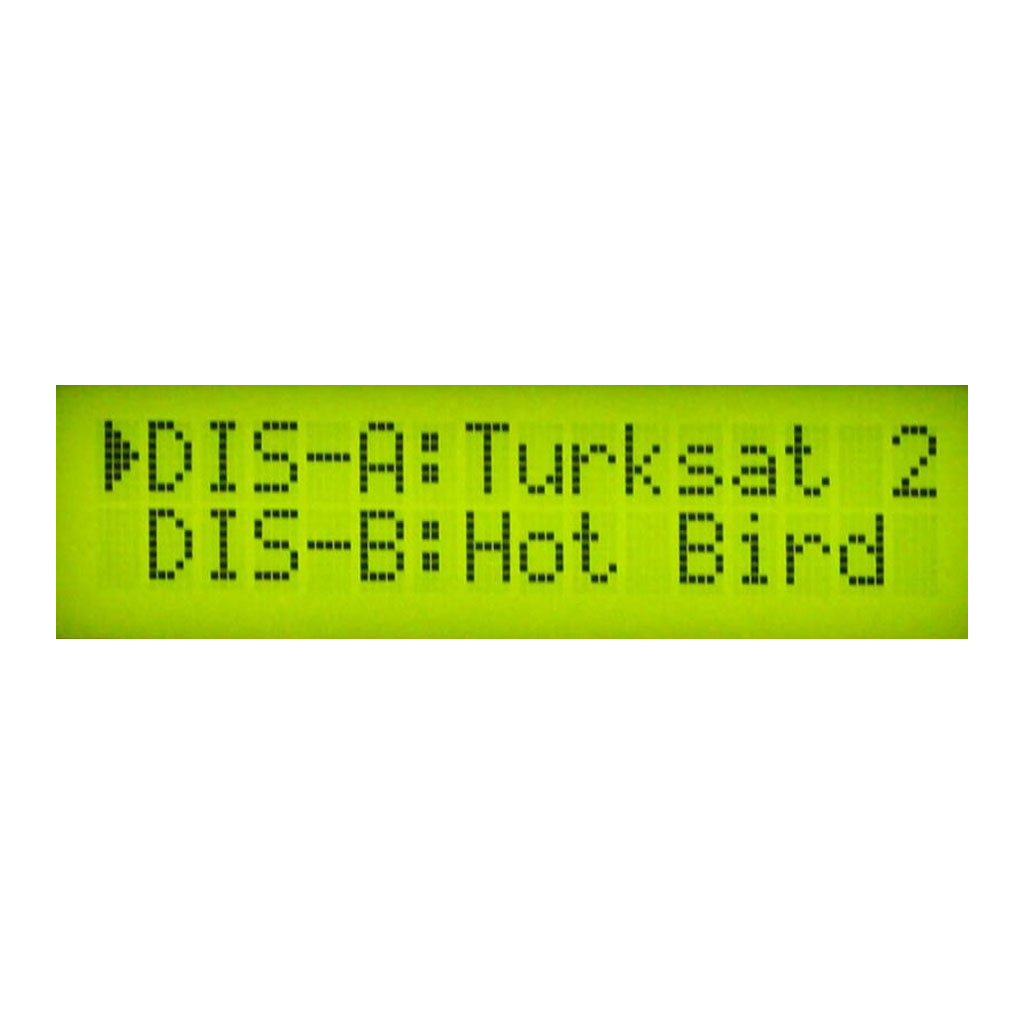

DISEQ-C SELECT

SATELLITE SEARCH

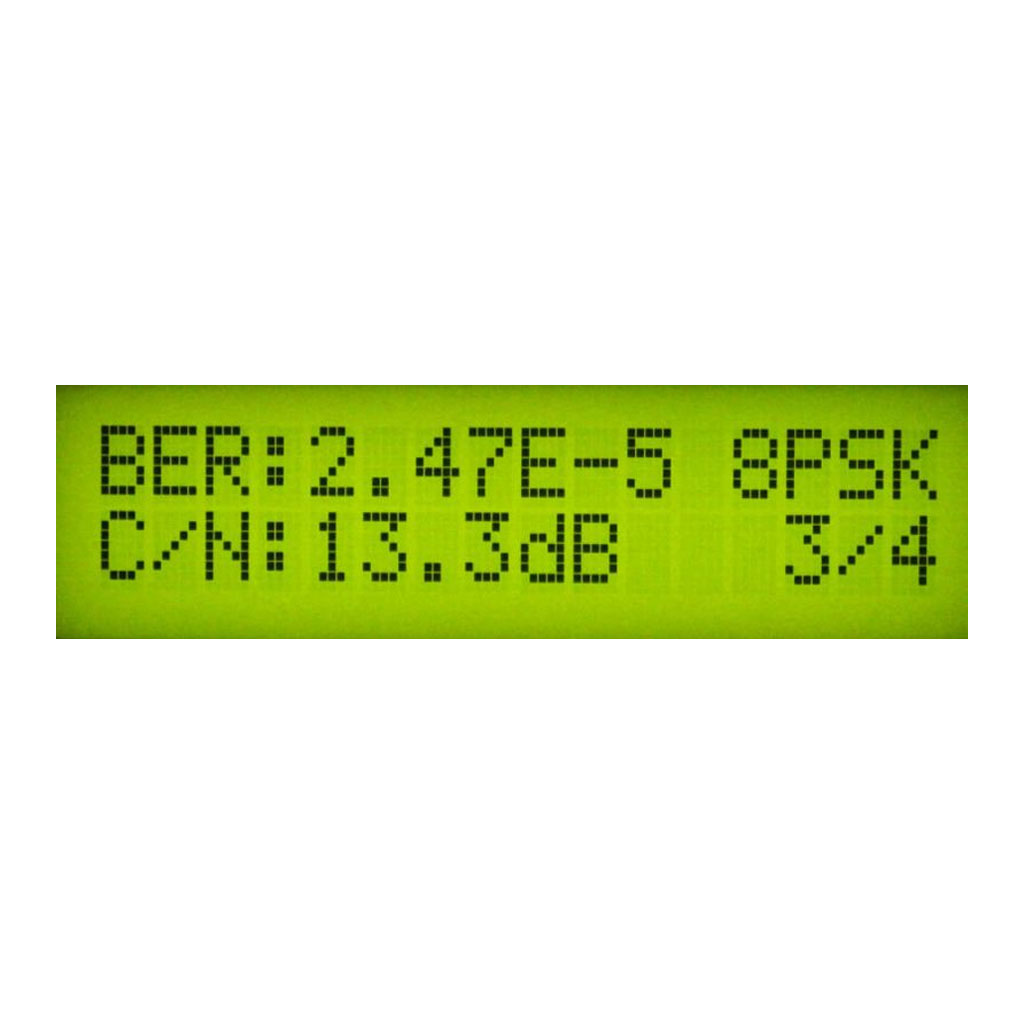

SIGNAL DETAILS

AUTO SAT FIND

MULTI LEVEL SCREEN

TECHNICAL SPECIFICATIONS

IF Frequency Range : 950 Mhz – 2150 Mhz
Satellite : 16 Satellites
Transponder : Each Sat 8 TP , Total 128 TP Memory
Symbol Rate : 2000-45000 MBaud
Tuner : DVB-S/S2 SERIT
FEC : QPSK / 8PSK / 16APSK / 32 APSK
Signal Level Range : -65 dBm ~ -15dBm
RF Connektor : F Type Connektor
Diseq-C Protocol : DiseqC – 1.0 , 1.1
Shotcut Circuit : LnbP21
22 KHZ : Auto
LNB Types : 32 Lnb Type
Multi Level : 2 Satellite Signal in one screen
Auto Sat Search : Fast Sat Identify
Neq Frequency Editor : Frequency and Sat name changeble with EDIT button.
Level Types : BER , PER , C/N  Levels
Screen Type : 16X2 LCD
Screen Backlight : Yellow-Green Backlight
Dimensions : 6cm x 14cm x 8cm
Weight : 500 gr
LNB Supply : 13V – 18V / 650mA
Max. Power Consuption : 750 mA
Battery : 2000maH 7.4V Lit-Ion
Charging Time : 3-4 Hours
Battery Work Range : ~180-220 Minutes
Charger : 220V-AC input , 12V-DC output,1A
Car Charger : 12V-1 A
PC Connection : RS 232 ComPort
PC Software : Windows Xp/Vista/Win7/10 – 32&64 Bit
Sound : Buzzer
Lanugage : English, French, German, Turkish , Deutch, Spanish
Component : SMD

DESTEKLENEN LNB TİPLERİ

  • UNIVERSAL LNB : 9750 – 10600
  • C BAND LNB : 5150
  • MDU 1 LNB : 10000-10450
  • MDU 2 LNB : 9925 – 9550
  • MDU 3 LNB : 12930 – 9830
  • MDU 4 LNB : 12650 – 13035 – 12930
  • MDU 5 LNB : 12976 – 12646 – 12584 – 12894
  • UNIVERSAL 2 LNB : 9750 – 10700
  • DBS LNB : 1350
  • SINGLE 9750
  • SINGLE 10000
  • SINGLE 10250
  • SINGLE 10500
  • SINGLE 10600
  • SINGLE 10700
  • SINGLE 10750
  • SINGLE 11250
  • SINGLE 11300
  • C BAND 5760
  • C BAND 5950
  • UNIVERL 3 CIR : 9750 – 10700
  • C BAND CIR 5760 – 5950
  • C BAND MDU 5150 – 5950
  • KA BAND 17250
  • KA BAND 18250
  • KA BAND 18750
  • KA BAND 19250
  • KA BAND 21000
  • IF 21SCR- 0MHz
  • IF NO POWER

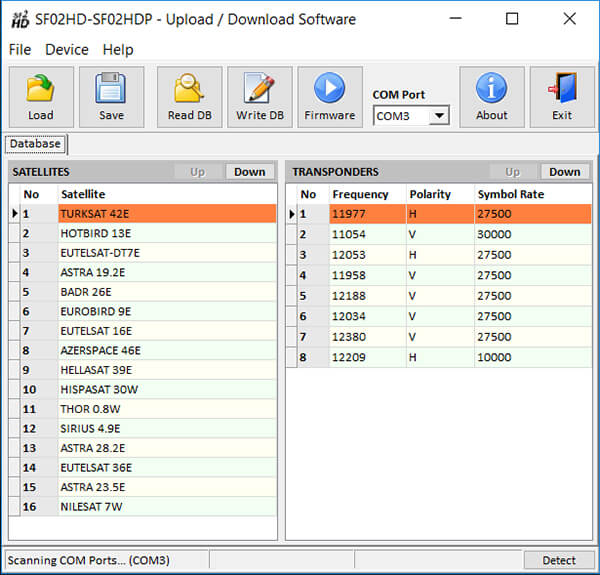

PC EDITOR PROGRAM

BOX INCLUDES

1 piece Black Leather Bag Cover
1 piece English-Turkish User Guide
1 piece Charge Adaptor
1 piece Car Charge
1 piece F-F Connector
1 piece RS 232 Cable

OVERVIEW VIDEOS

FILES AND DOCUMENTS

File Name Version Date Software Firmware Manual Brochure
SATFINDER 2HD+PLUS v2.48 27.01.2020  Download  Open  Download
SATFINDER 2HD+PLUS v2,46 21.01.2019  Download  Open  Download
SATFINDER 2HD+PLUS v2.45 28.05.2018  Download  Open  Download
