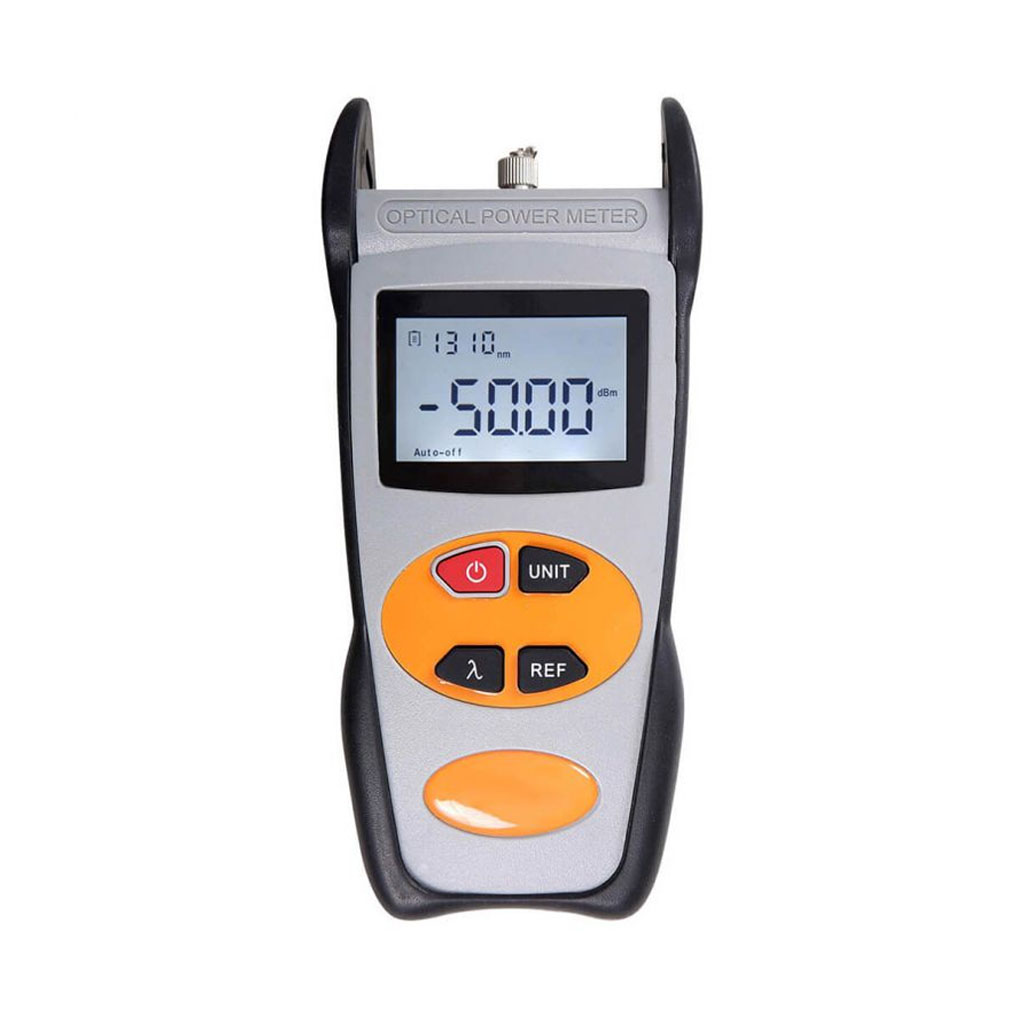

AS-352
ALPSAT Fiber Optical Power Meter
AS-352 Handheld Optical Power Meter is a measuring device for fiber optic network maintenance and installation.
PRODUCT INFO
This optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.
Features:
• Comfortable LCD display and optional backlight LCD display supports night operation;
• Power measurements in dBm or mw and insertion loss in dB;
• Reference power level storage(Ref Setting)
• Low battery consumption, more than 200 hours continual operation time with three 1.5V alkaline batteries;
• 10 minutes Auto-off function can be activated or deactivated.
Applications:
- Maintenance in Telecom
- Maintenance in CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
TECHNIC DETAILS
| Wavelength(nm) | 800~1700nm |
| Detector | InGaAs |
| Measurement Range (dBm) | -50~+26 |
| Uncertainty | ±5% |
| Calibrated Wavelength(nm) | 850,,1300,1310,1490,1550,1625 |
| Resolution(dB) | 0.01 |

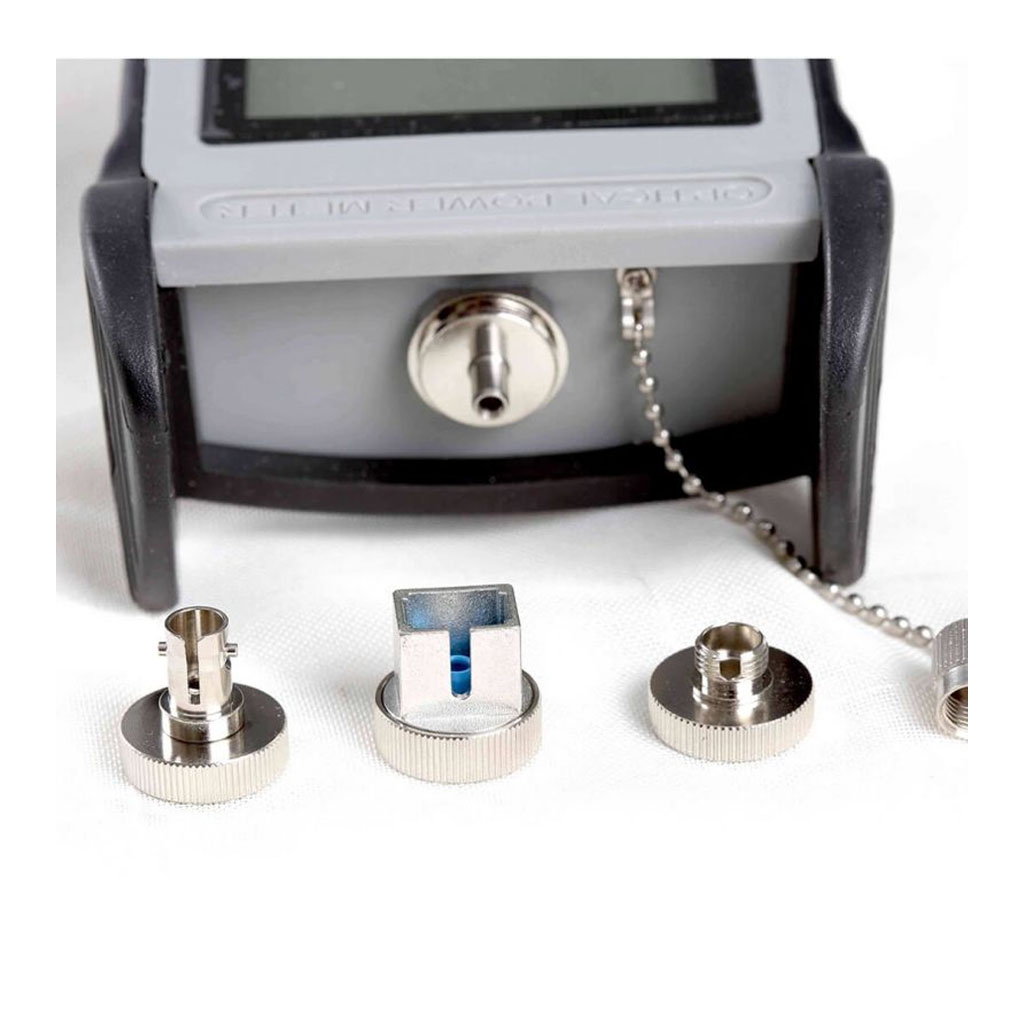

| Optical Connector | FC(interchangeable SC,ST) as well as 2.5mm universal |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) |
| Battery Operating Time | 240 h with 1.5V Battery(3) |
| Operating Temperature(℃) | -10 ~ +60 |
| Storage Temperature(℃) | -25 ~ +70 |
| Relative Humidity | 0 to 95% (yoğunlaşmamış) |
| Dimension(mm) | 200 X90 X50 |
| Weight(g) | 285 gr |
