BASIC FEATURES
SATFINDER 5 PRO-AHD Real Time and NIT Function Spectrum Analyzer, HD Video Display 3.5″ Lcd Tft , DVBS/S2 Satellite Signal Meter Device.
SATFINDER 5 PRO-AHD is a professional measuring device for ensuring most accurate installation of dish antenna. With the device 3.5″ Lcd Tft color monitor you can display SD and HD Digital TV programs and also the frequency spectrum between 950-2150 Mhz. (in normal and advanced mode).
The device has 32 different LNB type memory. It also has user-customizable LNB types. 22Khz Tone – 13/18V selectable. Supports Diseq-C 1.0-1.1-1.2-2.0 and Multiswitch central systems. It may perform USALS motor system installations and may measure UNICABLE I&II (SCR,dCSS) EN50494/EN50607 JESS systes on a single cable. The Lnb supply has protection against short circuits, and has screen warnings. You can also use SATFINDER 5 PRO-AHD as an AHD-TVI-CVI-ANALOG cctv camera test monitor.
You may use the device with 3000mAh 7.4V Lithium Polymer charging batteries, and charge it with External 220V AC charging device and Car lighter charging device. Battery packs and charging circuits are protected against short circuits and high currents. Its average Operating span is about 4 hours. This sensitive device has many functions, it is versatile and easy to use with bakclight keypad. It has got Led Lantern light for dark areas.
English, Turkish, German, French, Spanish, Portuguese, Russian, Arabic, Dutch and Italian OSD Menu Languages are available. It is a super lightweight measuring device weighing only 1kg. with protective cover and batteries.
TECHNICAL FEATURES
• Digital HD video Picture.
• Satellite orbit and recognition from Spectrum NIT.
• Full Band Spectrum Analyzer Real-time ( 350ms )
• dBuV, dBmV or dBm signal strength indicator
• Level and BER measurement
• Detailed display of signal quality (BER evaluation)
• S/N and C/N measurement
• Constellation I/Q Diagram
• 800 MHz processor speed
• 8MB Memory / 512Mb Ram
• 5000 TP Capacity
• 8000 Tv Channels Capacity
• 250 Satellite Capacity
• Keyboard with Backlight
• Led Torch Light
• LNB Supply : 13/18V/21V , 22 kHz – 500/650mA
• Ka/Ku/C band support.
• V/H and L/R selectable polarity
• KA-BAND L.O. Frequency: 17.25-20.25 GHz
• 32 LNB Type and 3 Type interchangeable User Lnb
F – Male Connector Input
• Low Threshold level DVBS2 Tuner ST Processor
• Level range: -65 dBm to – 25dBm
• FEC Qpsk 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
• FEC 8psk 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
• Symbol Rate: 1 to 45Msps
• DVBS, DSS (DirecTv), DVBS2 / QPSK and 8PSK
• DiSEqC 1.0 , 1.1 , 1.2 , 2.0
• DiSEqC 1.2 and USALS Motor Control
• Support UNICABLE I&II (SCR,dCSS) EN50494/EN50607 JESS
• USB 2.0 Memory Interface.
• Tp frequency update from USB Memory.
• Software update via USB Memory.
• XP/7/8/10 compatible with Windows ( 32/64-bit )
• Satellite position detection max 1 second.
• Easy to use with small and light weight design
• Long life Lithium- Poly battery ( 3000mAh )
• 4 hours of battery work time
• AHD-TVI-CVI CCTV Input
• Dimensions (WxHxD) : 18 x 11 x 6 cm
• Carrying Cover Bag
• Weight: about 1 kg including battery
SATFINDER 5 PRO+AHD SCREEN SHOTS
CHANNEL LIST
VIDEO AND INFO SCREEN

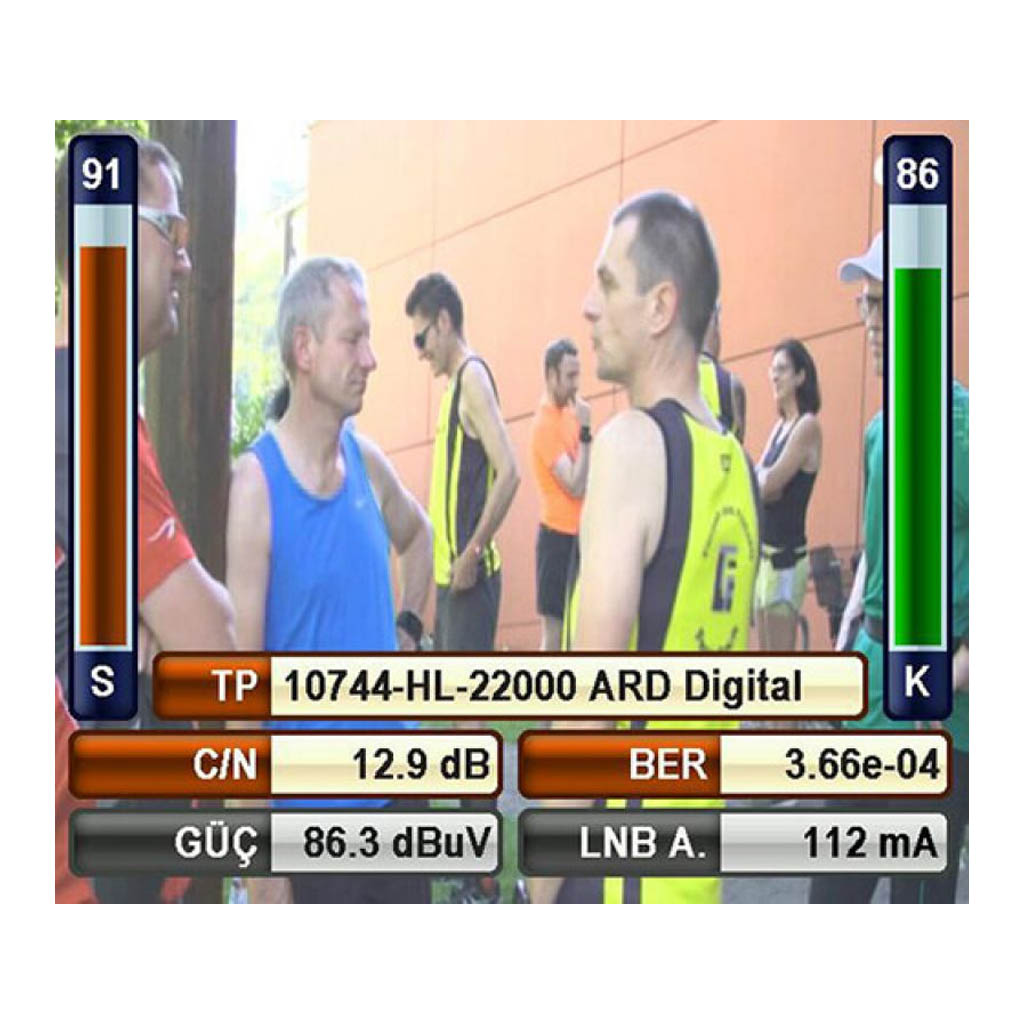

VIDEO AND SIGNAL SCREEN

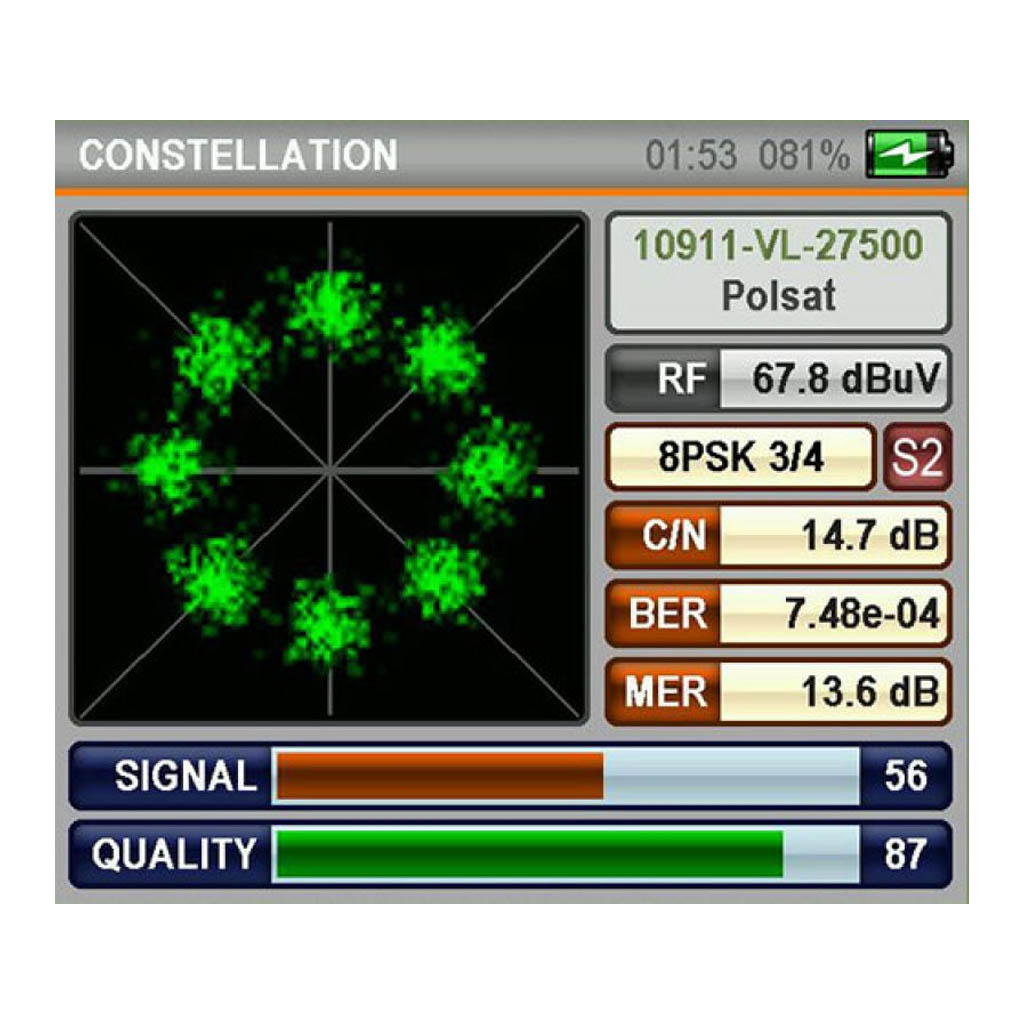

CONSTELLATION

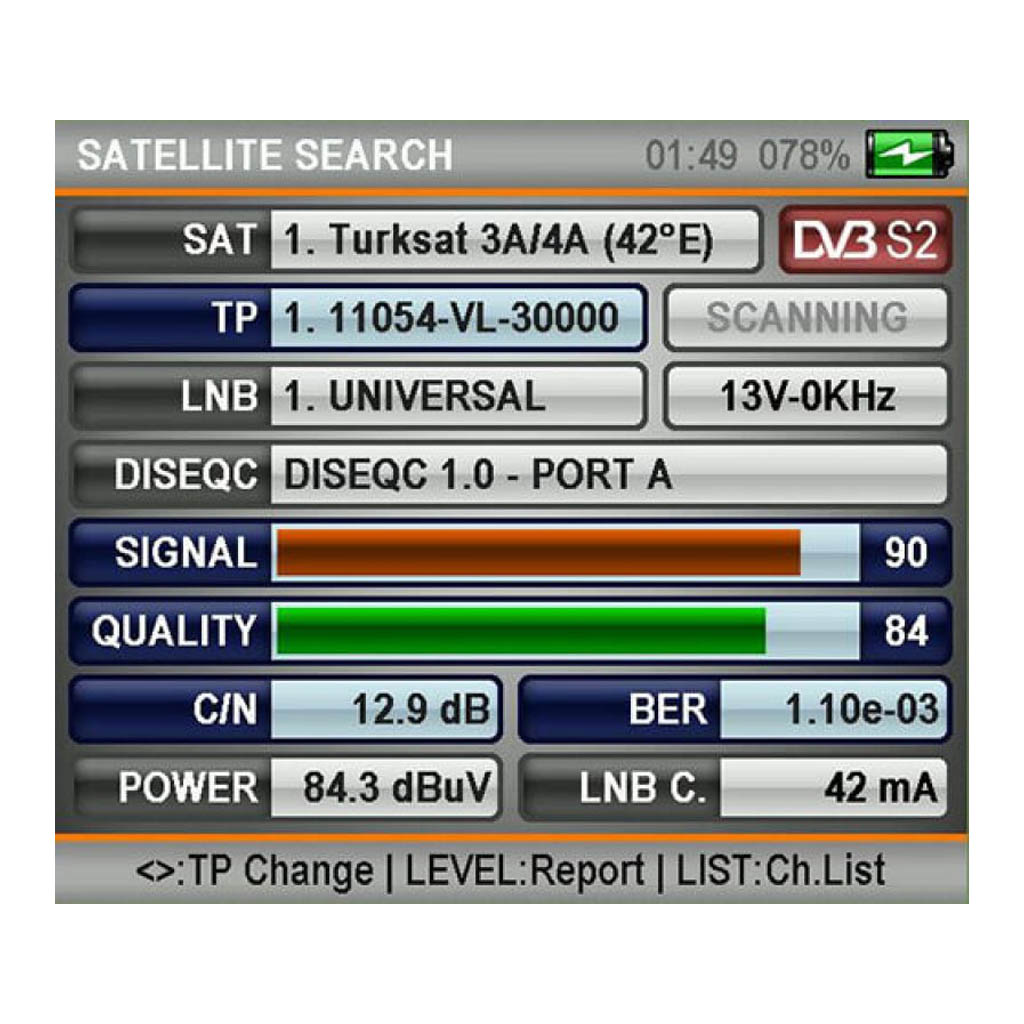

SATELLITE SEARCH
SIGNAL REPORT
SINGLE TP CONTROL

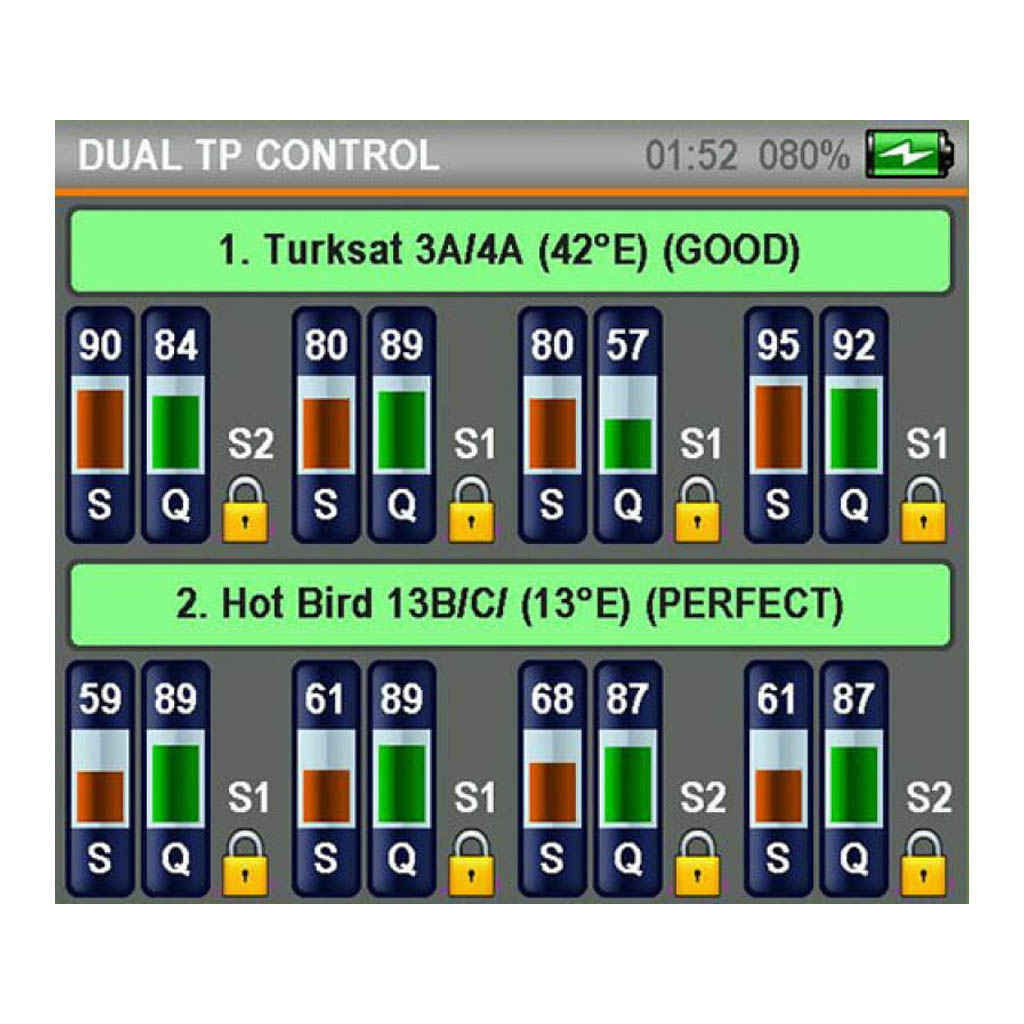

DUAL TP CONTROL

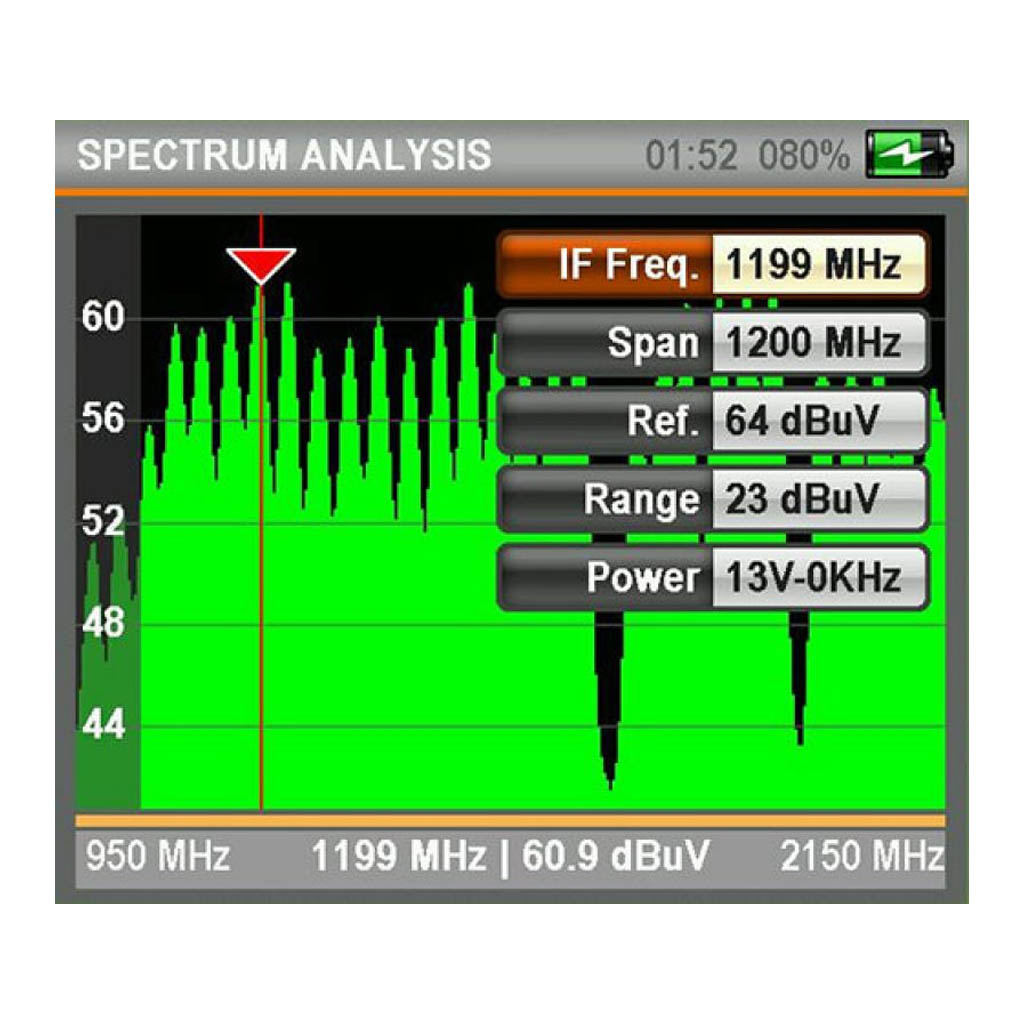

SPECTRUM ANAYZER
SPECTRUM DETAIL
CROSS POLARISATION
MULTI LEVEL CONTROL
AUTO SAT SEARCH
AUTO DISEQC PORT SCAN
AHD-TVI-CVI-Analog AV IN
VOLTAGE TEST

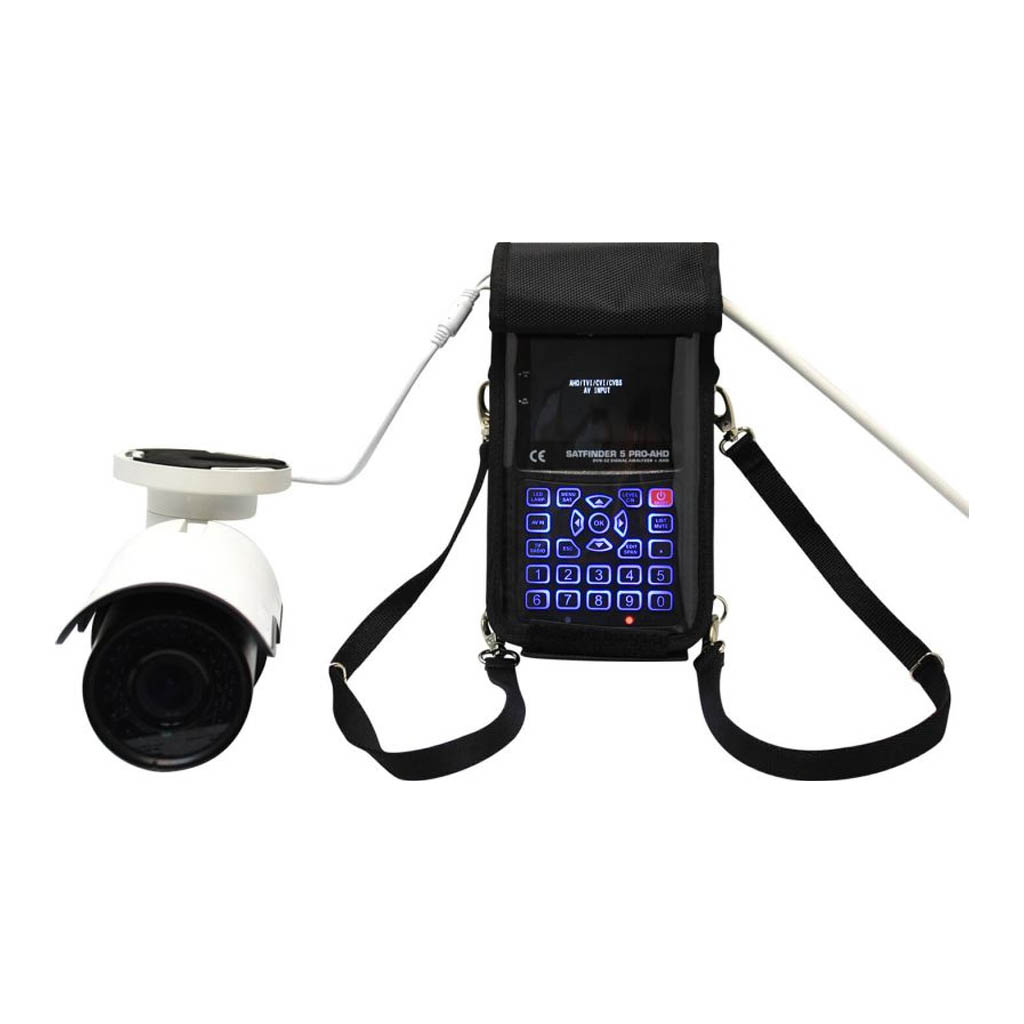

AHD -TVI - CVI - Analog CCTV Test Monitor Supported
- 8MP AHD Cameras
- 8MP TVI Cameras
- 5MP CVI Cameras
- 576px Analog Video Sources

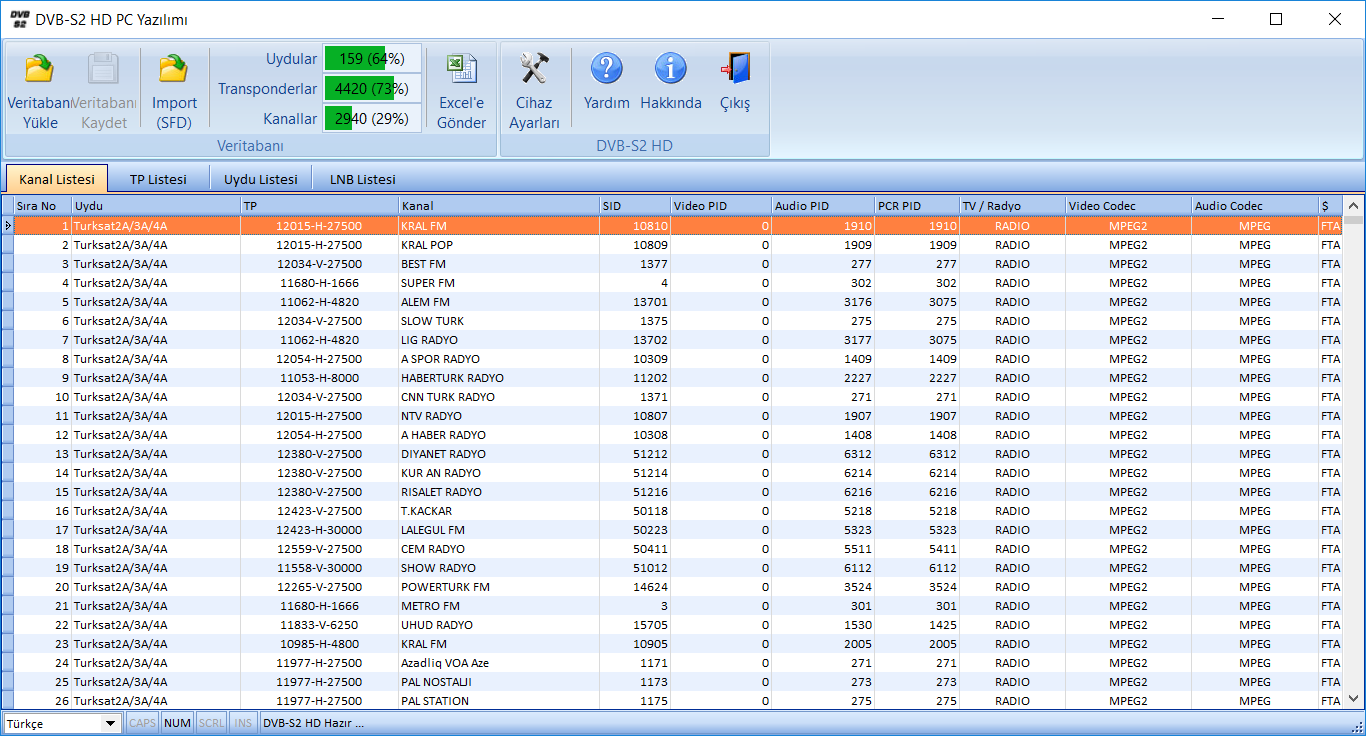

PC EDITOR SOFTWARE:

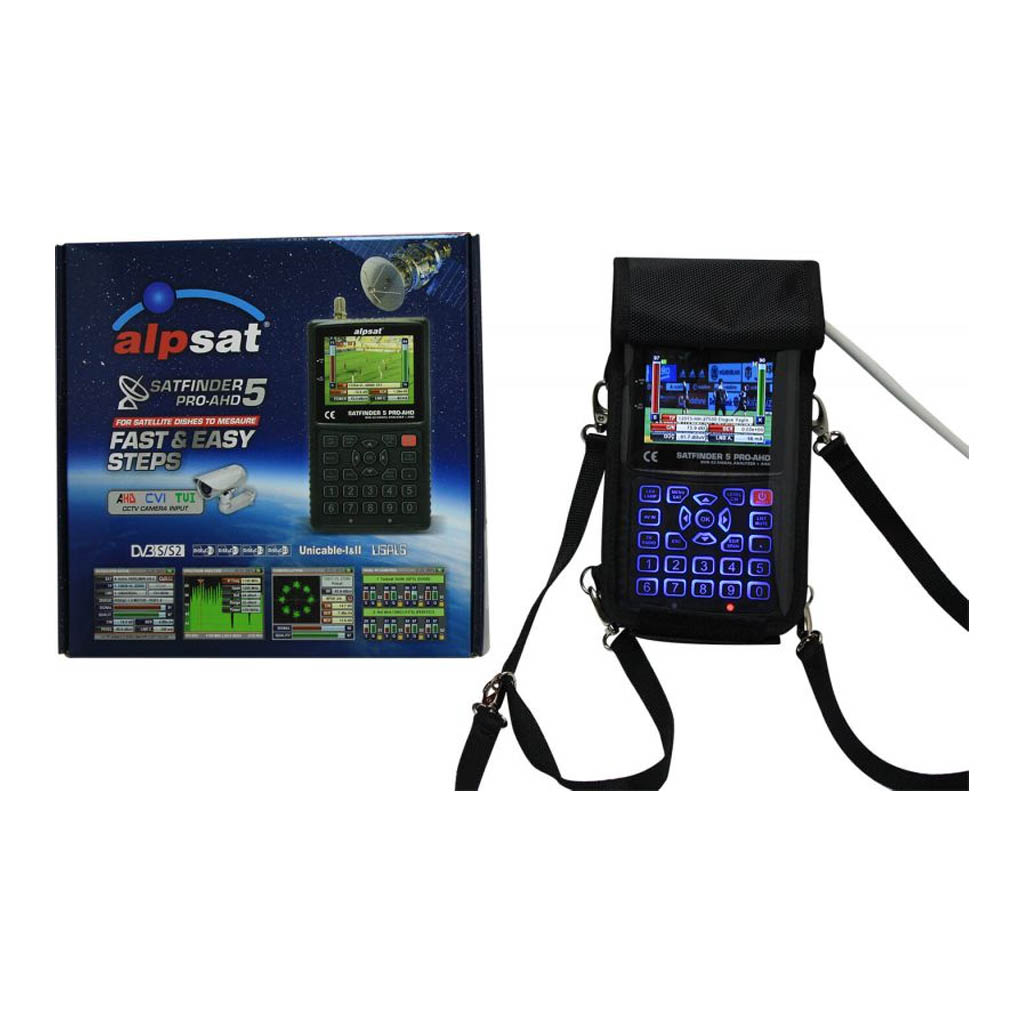

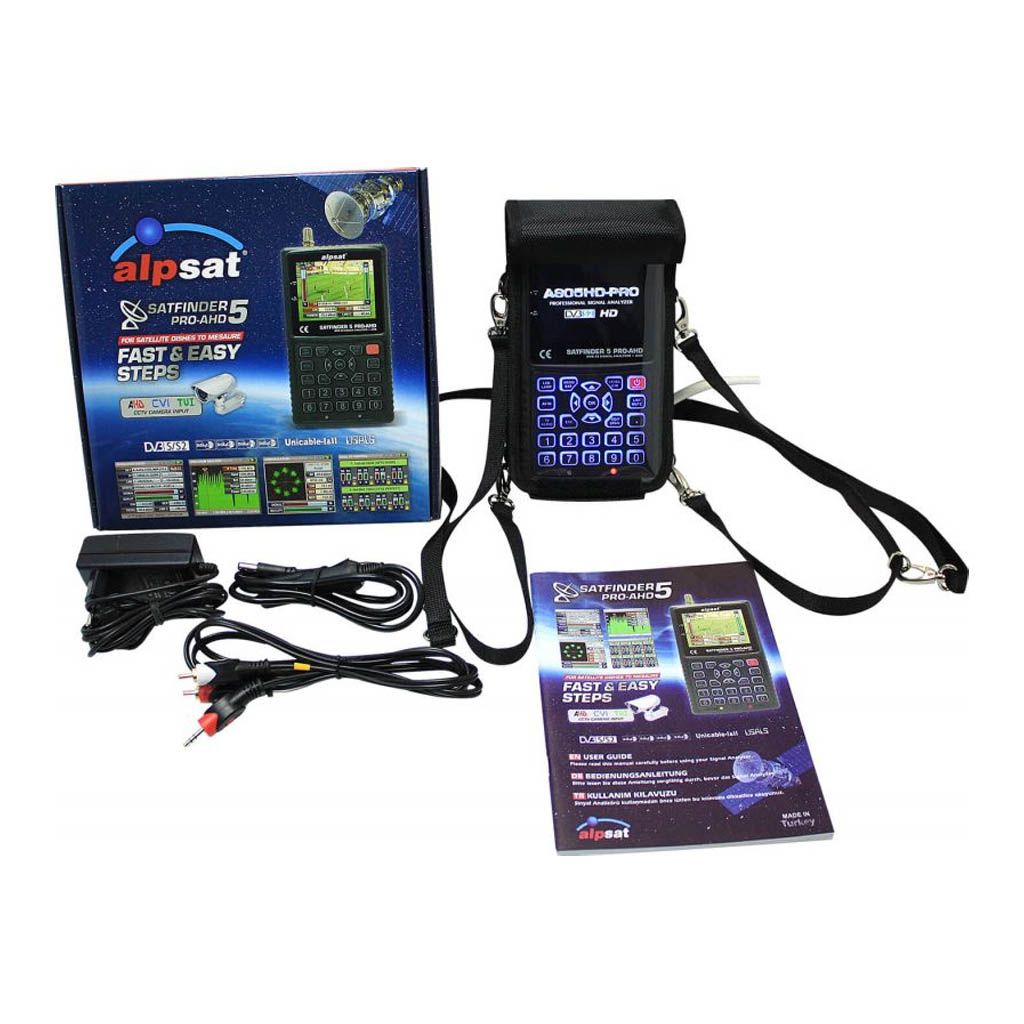

BOX INCLUDES
1 piece Black SATFINDER 5 PRO AHD
1 piece Black Carrying Bag
1 piece Audio-Video Cable
1 piece F-F Connector
1 piece Bnc Connector
1 piece Climp Aparatus
1 piece Charge Adaptor
1 piece Car Charger
1 piece User Guide (English-German-Turkish)
