AS400-AHD

ALPSAT Rf Modulator

AS400-AHD used to convert the output signals of AHD-TVI-CVI-Analog Cctv cameras to RF TV signals.

AS400-AHD_Main

PRODUCT INFO

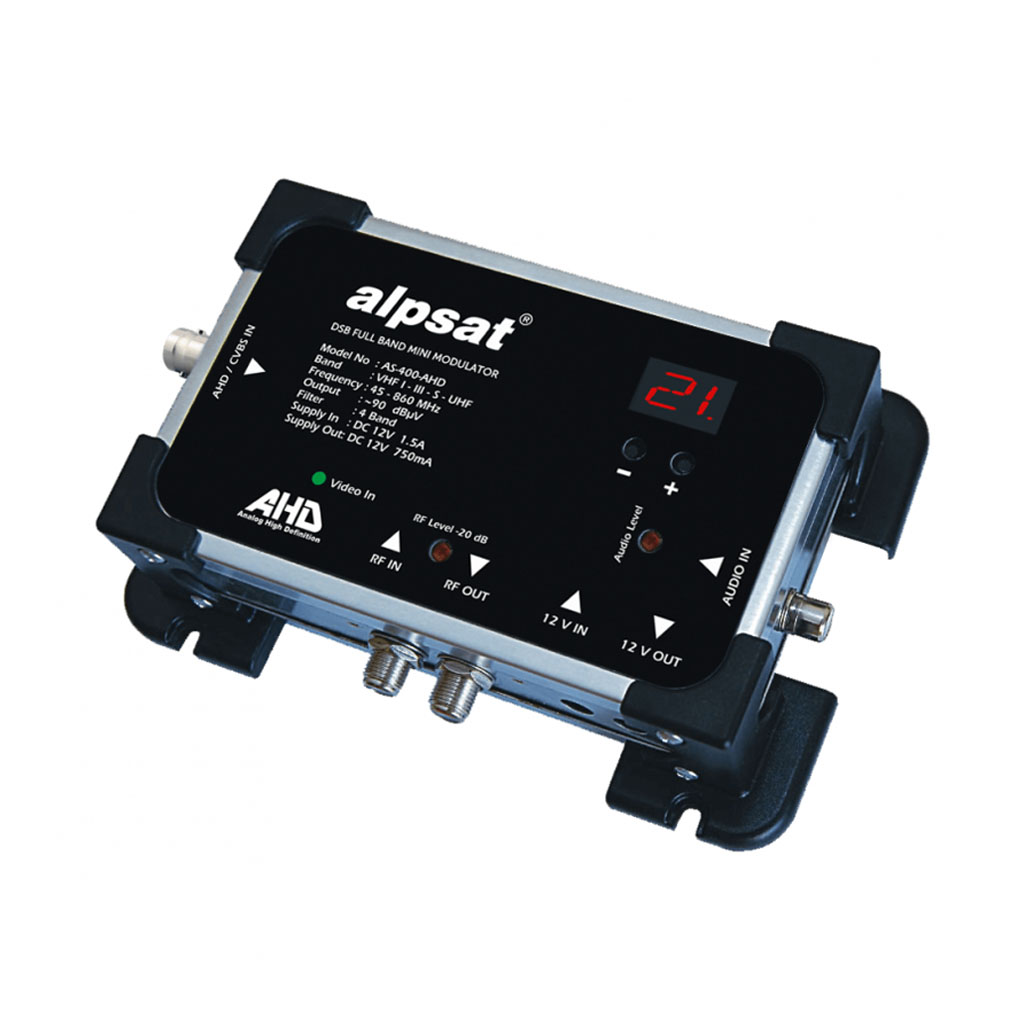

AS400-AHD is a programmable modulator device used to convert the output signals of AHD-TVI-CVI-Analog Cctv cameras to RF TV signals. The camera images taken on this site are monitored on TV standards. Produced by Dual Side Band technology, this wall-mounted device has 4 filtered outlets.

Usage:

AHD-TVI-CVI-Analog Cctv Camera Systems

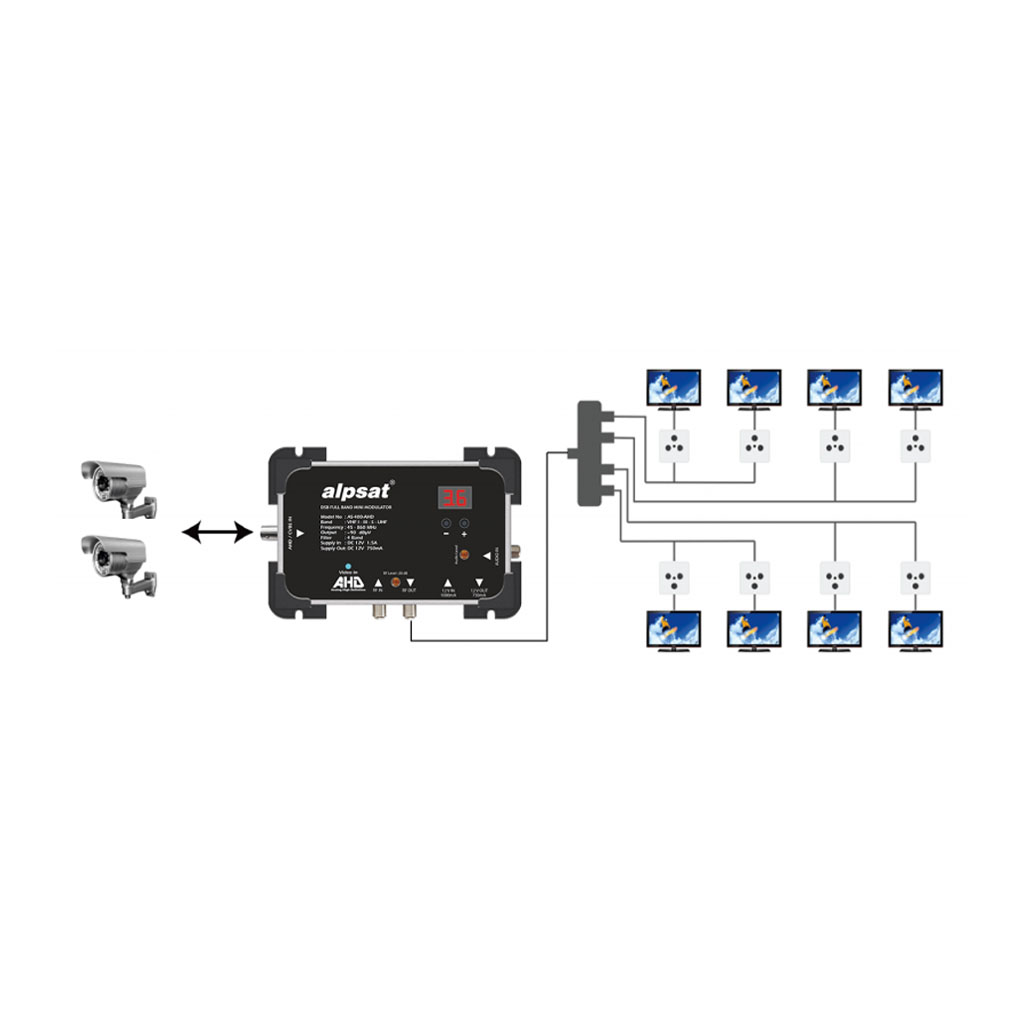

Transmission of Security Camera Images
Small Diameter Tv Distribution Systems
Closed Circuit Info Channel Distributions
12 Volt Output for Cctv Cameras

TECHNIC DETAILS

Band                      : VHF I-III – S – UHF
Frequency               : 45-860 Mhz
Rf Output                : ~90 dBuV
Rf Attenuation         : ~20db
Tv Standart             : PAL B/G, D/K, I
Video Input              : AHD-TVI-CVI-Analog
Filters                     : 4 Band
Supply In                : DC 12V 1A
Supply Out              : DC 12V 600mAh
Power Supply          : 110V-220VAC / 12V-1A
