AS8135
ALPSAT 8xDVBS2 Tuner > 64 SPTS IP Stream

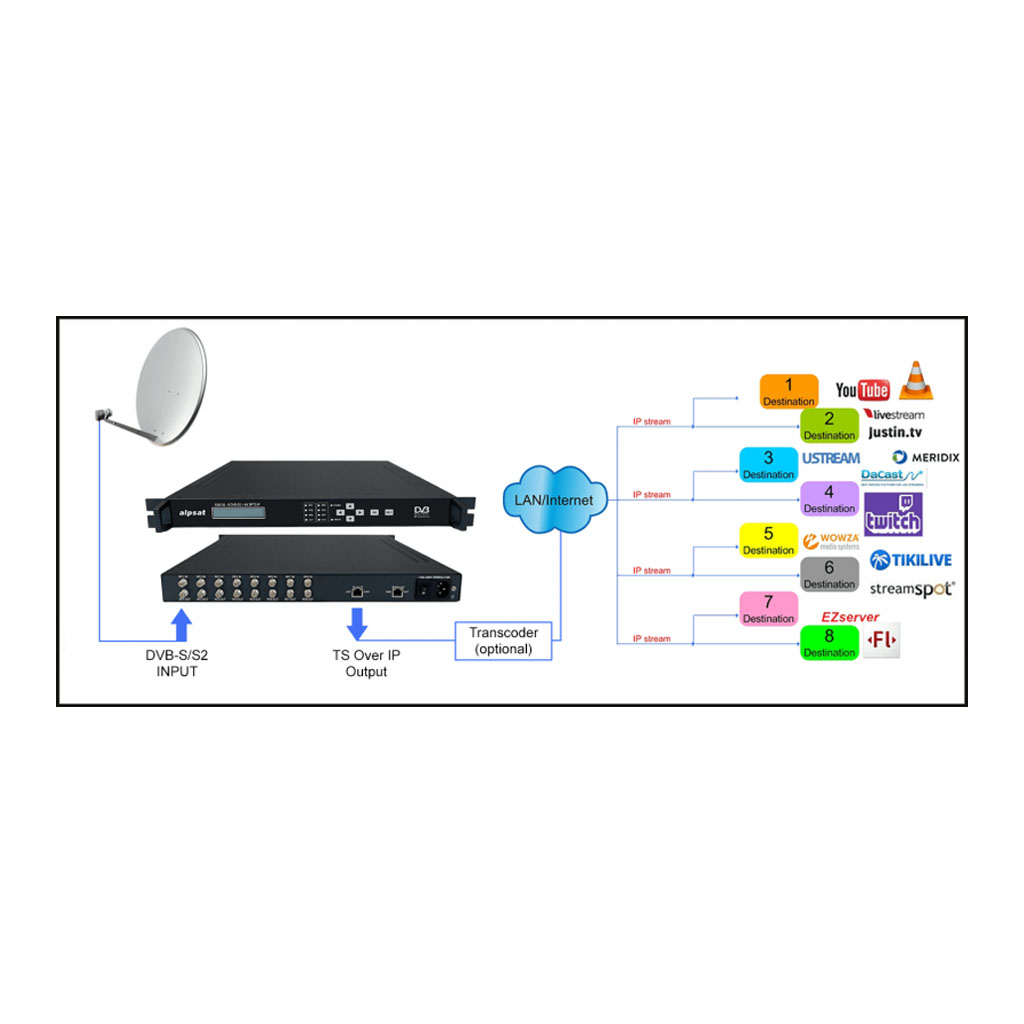

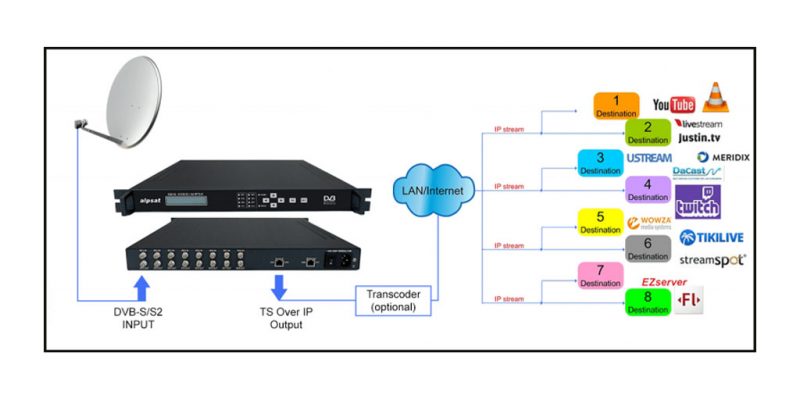

The AS-8135 has 8 x DVB-S / S2 RF inputs and 64 SPTS Stream TS over IP outputs.
BASIC FEATURES
AS-8135 8in1 DVB-S/S2 IP receiver (IRD) is one of the main equipments for digital TV head-end. It can receive 8 channels DVB-S/S2 signal (RF) transponders and output 64*SPTS IP transport stream (TS over UDP). It can convert 64 programs and is mainly applied to IPTV live broadcast system.
TECHNIC DETAILS
| Input | RF (DVB-S/S2) | 4xDVB-S/S2(950-2150MHz),F-head |
| Output | ||
| IP | 32×SPTS,TS over UDP 1000M RJ45 port |
|
| General Features | Size | 482mm×280mm×44mm |
| Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
| Power | 100-240VAC, 50Hz, 25W |
