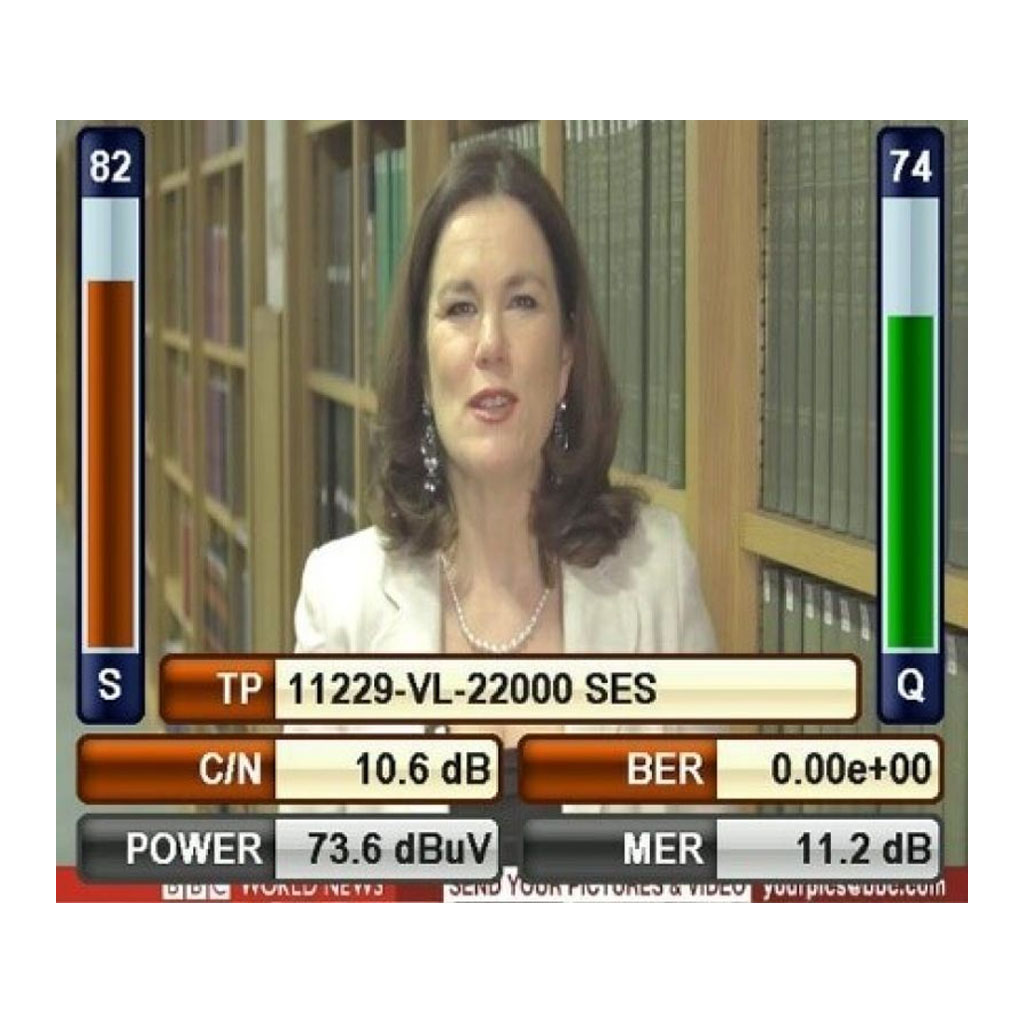

SATFINDER 4 HD ULTRA is a satellite meter device for ensuring most accurate installation of dish antenna. With the device 3.5″ Lcd Tft color monitor you can display SD and HD Digital TV programs and also the frequency range between 950-2150 Mhz. (in normal and advanced mode).

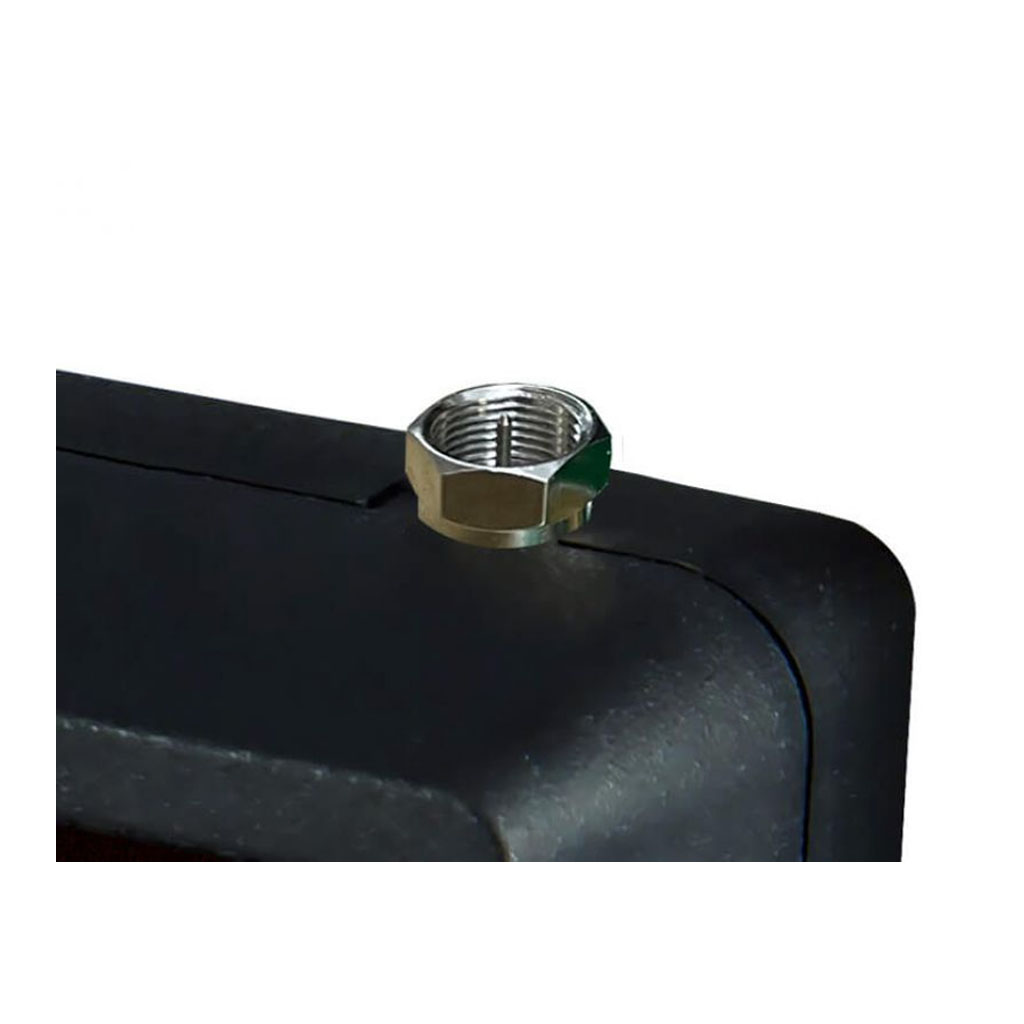

The device has 34 different LNB type memory. It also has user-customizable LNB types. 22Khz Tone – 13/18V selectable.  Supports Diseq-C 1.0-1.1-1.2 and Multiswitch central systems. It may perform USALS motor system installations and may measure UNICABLE I&II types on a single cable. Changable F connector and The Lnb supply has protection against short circuits, has screen warnings.

You may use the device with 2400mAh 7.4V Lithium Polymer charging batteries, and charge it with External 220V AC charging device and Car lighter charger device. Battery packs and charging circuits are protected against short circuits and high currents. Its average Operating span is about 3 hours.

English, Turkish, German, French, Spanish, Portuguese,  OSD Menu Languages are available. It is a super lightweight measuring device weighing only 800 grams with cover and batteries.

• Digital HD video Picture.
• dBuV, dBmV or dBm signal strength indicator
• Level and BER measurement
• Detailed display of signal quality (BER evaluation)

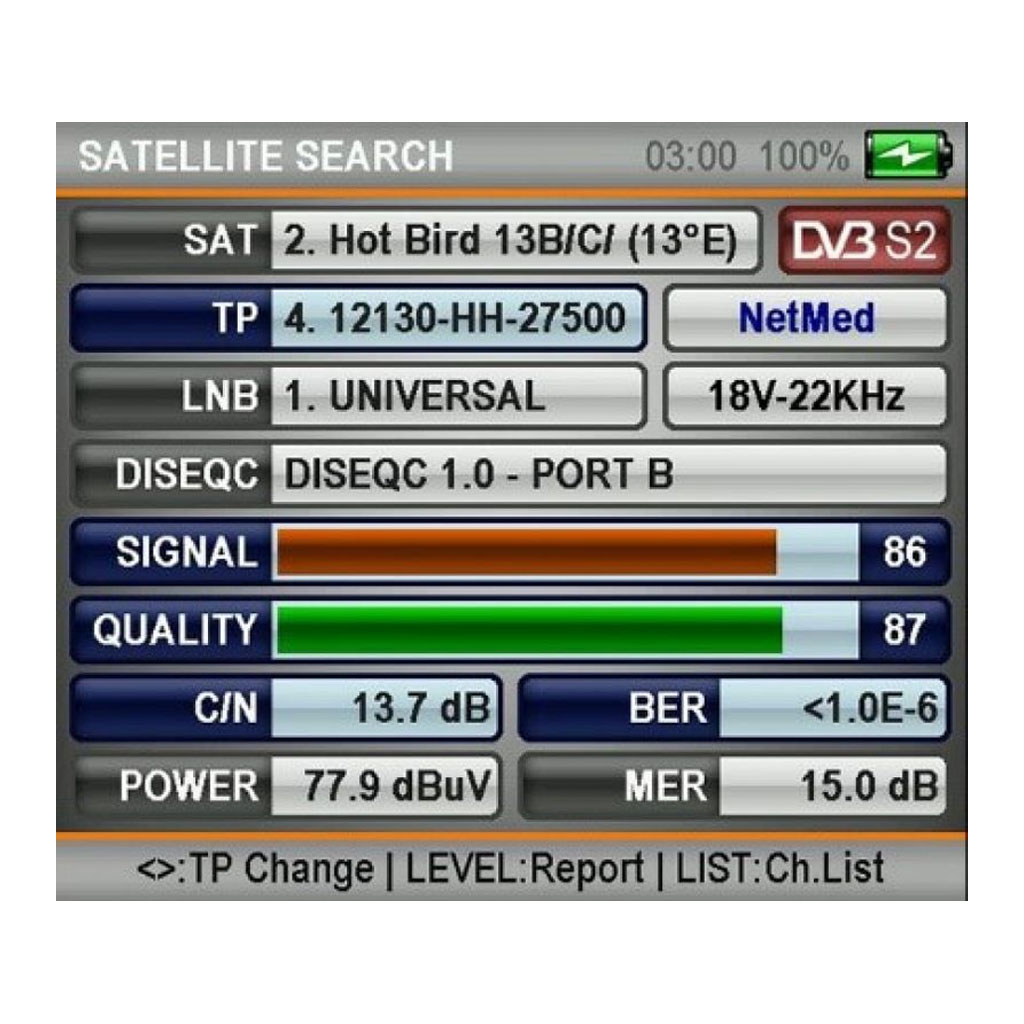

• MER and C/N measurement
• 800 MHz processor speed
• 8MB Memory / 512Mb Ram
• 5000 TP Capacity
• 8000 Tv Channels Capacity
• 250 Satellite Capacity
• LNB Supply : 13/18V/21V , 22 kHz – 500/650mA
• Ka/Ku/C band support.
• V/H and L/R selectable polarity
• KA-BAND L.O. Frequency: 17.25-20.25 GHz
• 34 LNB Type and 3 Type interchangeable User Lnb
