AS515

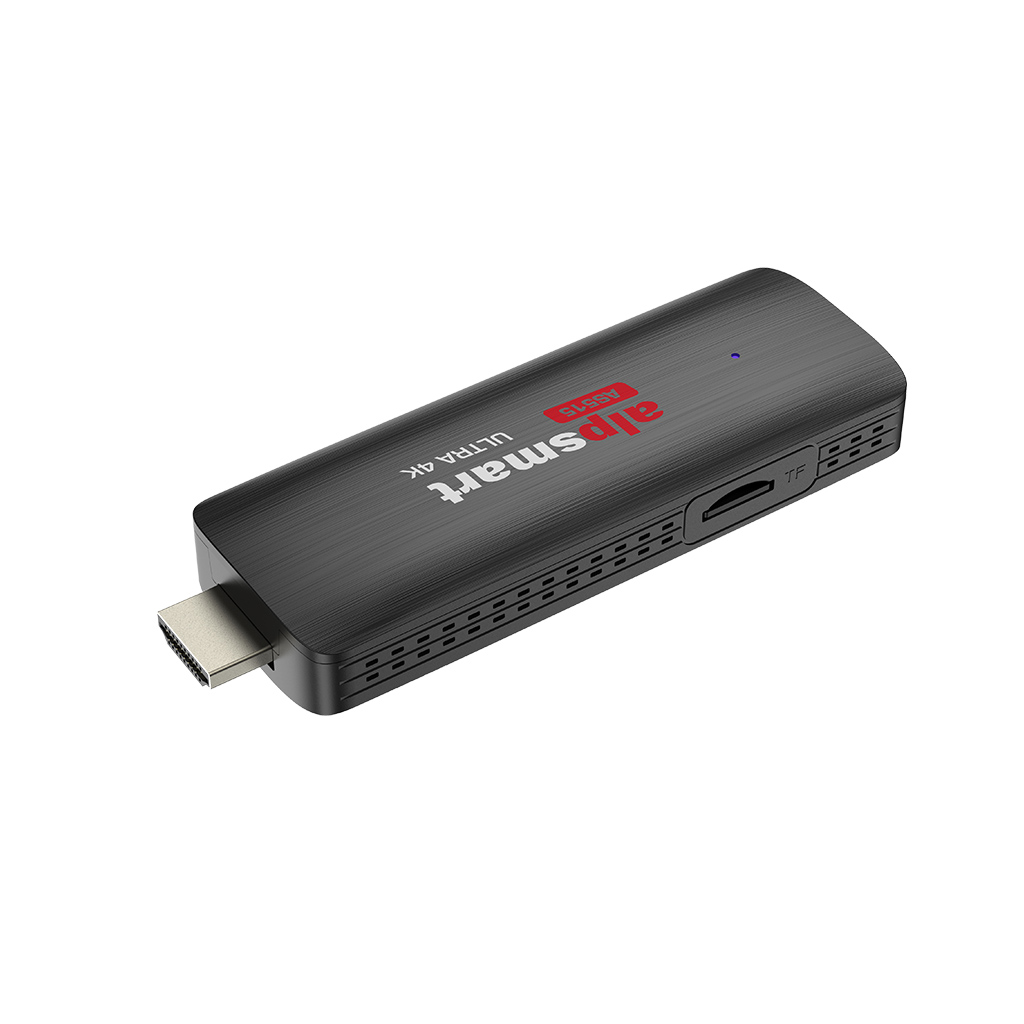

ALPSMART ANDROID TV BOX

You will enjoy 4K technology with ALLwinner H618 processor, Android 12.0 operating system, 2GB Ram + 16GB Rom memory.

AS515_Main

MAIN FEATURES

CPU

Allwinner H618 Quad core ARM CortexTM-A53 64-bit

GPU

High Performance Multi-Core G31 GPU, OpenGL ES3.2/Vulkan 1.1 support

RAM

2GB

Memory

16 GB

Wifi

IEEE 802.11 a/b/g/n 2.4G+5.8G

Allwinner H618 Quad core, one of the fastest processors in its category according to today’s technology, is used in the AlpSmart AS515 TV Box. AlpSmart AS515 plays 4K video with H.265, H.263BP and VP8 codecs, and also comes with HDR, HDMI 2.0, USB 3.0 features.

2GB DDR3 RAM, eMMC 16GB Flash Memory

2GB ensures smooth running of videos, and the use of 16GB eMMC memory allows the number of applications to increase, resulting in a richer end-user experience.

True 4K Media Player

AlpSmart AS515-W2 plays all 4K sources, plus videos with H.265, H.264 and VP8 hardware decoding.

MaxTv IPTV, Kodi, Netflix, Youtube and many ready-made applications

Like all Android-based media players, it provides full access to Google Play Store apps like Neflix, Youtube, apart from pre-installed KODI. Additionally, 1 year of MaxTv National Free IPTV broadcasts come with the device free of charge.

TECHNICAL DETAILS

OS

Android 12.0

Decoder Formats

H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps
AVS2 JiZhun 10bit decoder up to 4K@60fps
H.264 BP/MP/HP@L4.2 decoder up to 4K30fps
Multi-format 1080p@60fps video playback formats,
including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL,
MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun,

Media formats

RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV

Music formats

MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV

Photo formats

HD JPEG/BMP/GIF/PNG

HDR

HDR10 and HLG, SDR and HDR Support

HDD File System

FAT16/FAT32/NTFS

Subtitle Support

SRT/SMI/SUB/SSA/IDX+USB

UHD Video Output

4K (3840×2160 pixels)

Language Support

Multi-language support, Turkish/English/French/German/Spanish/Italian etc.

Wireless

Dual-frequency Built-in Antenna

Mouse/Keyboard

Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HDMI

HDMI 2.0a up to 4k2k Output with HDR, CEC

IR Port

ɸ2.5mm infrared extension line

USB Port

1*USB 2.0

Card reader

1*TF Card / 128GB support

Power Light

Power On: Green / Power Off: Red

Feed

TYPE-C 5V@2A

BOX CONTENT

1 x AS515 Android TV Box
1 x HDMI Cable
1 x IR Eye
1 x USB-C Cable
1 x IR Remote
1 x User Manual
2 x Remote Battery

The device must be powered by the 1A USB output on the TV. If the USB output on your TV is not sufficient, it is recommended to use an external 5V-2A adapter.
