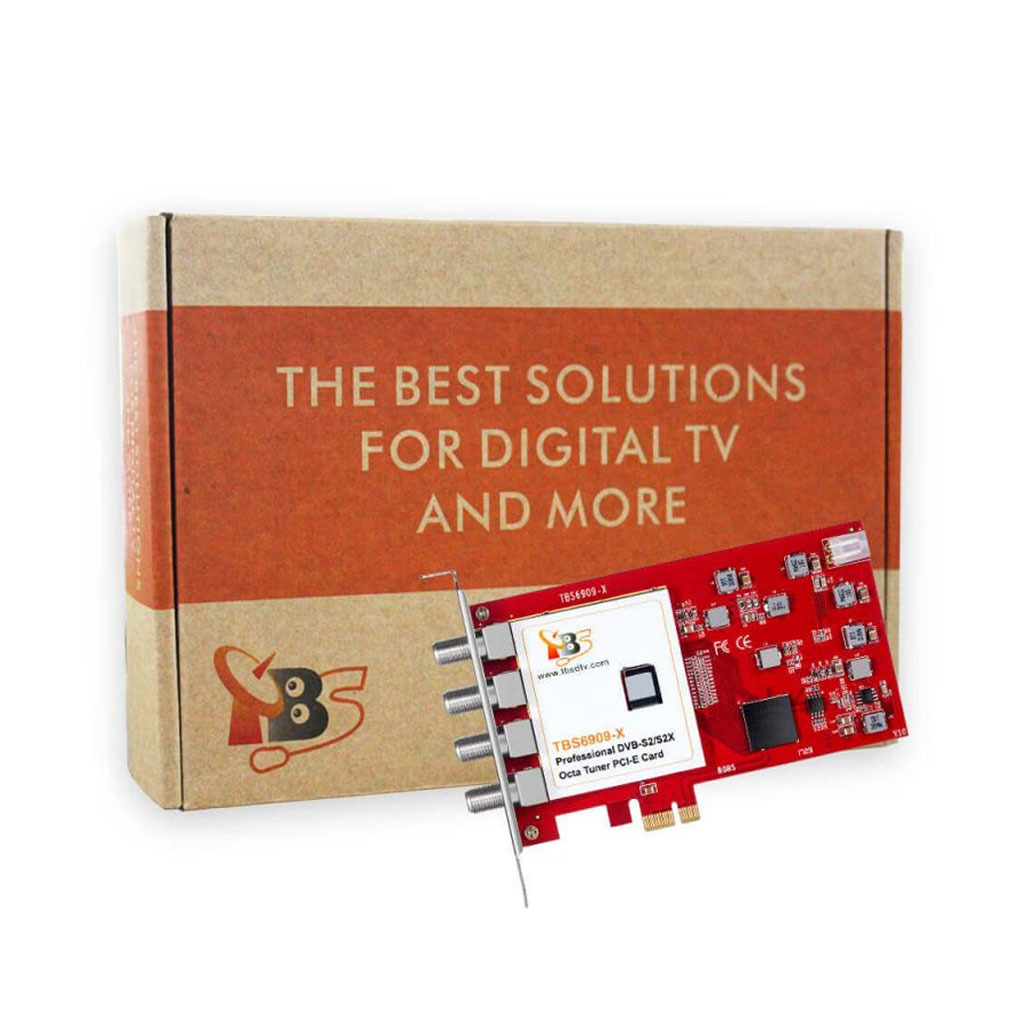

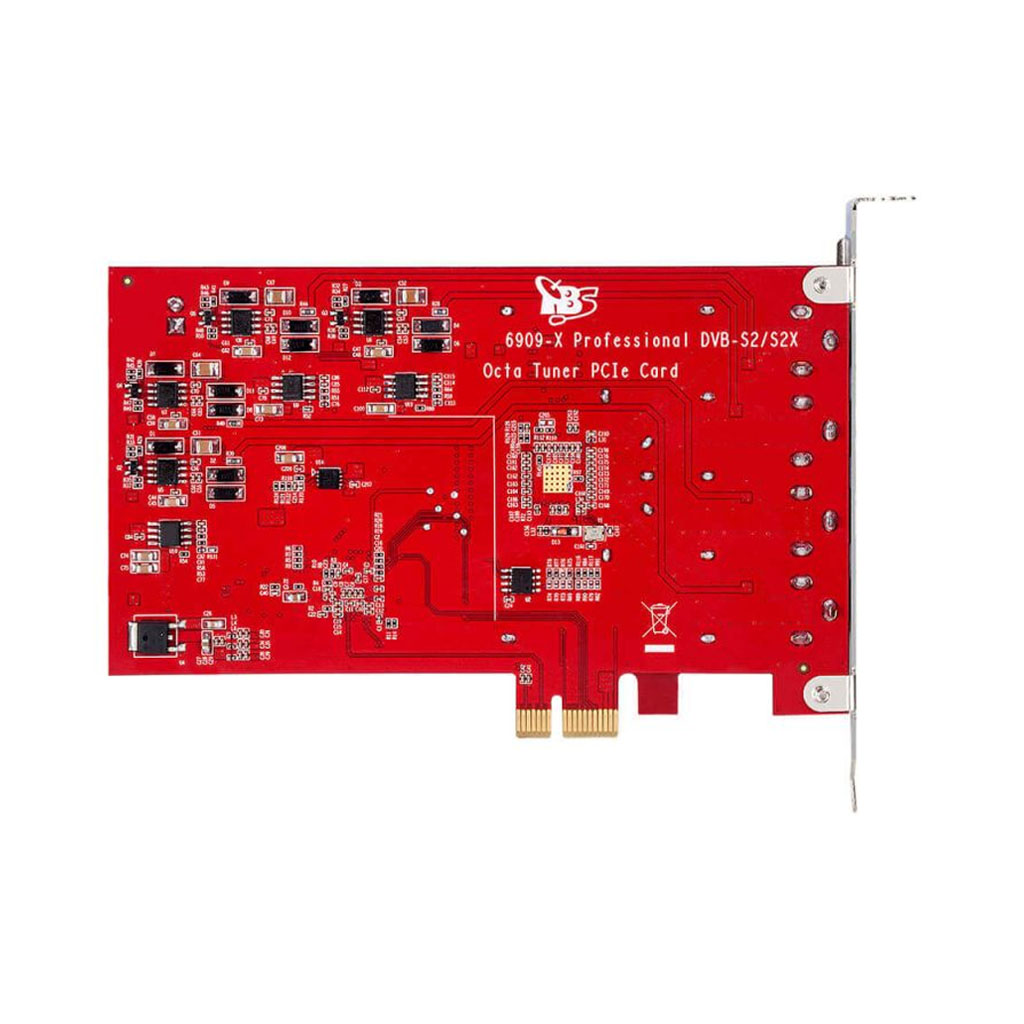

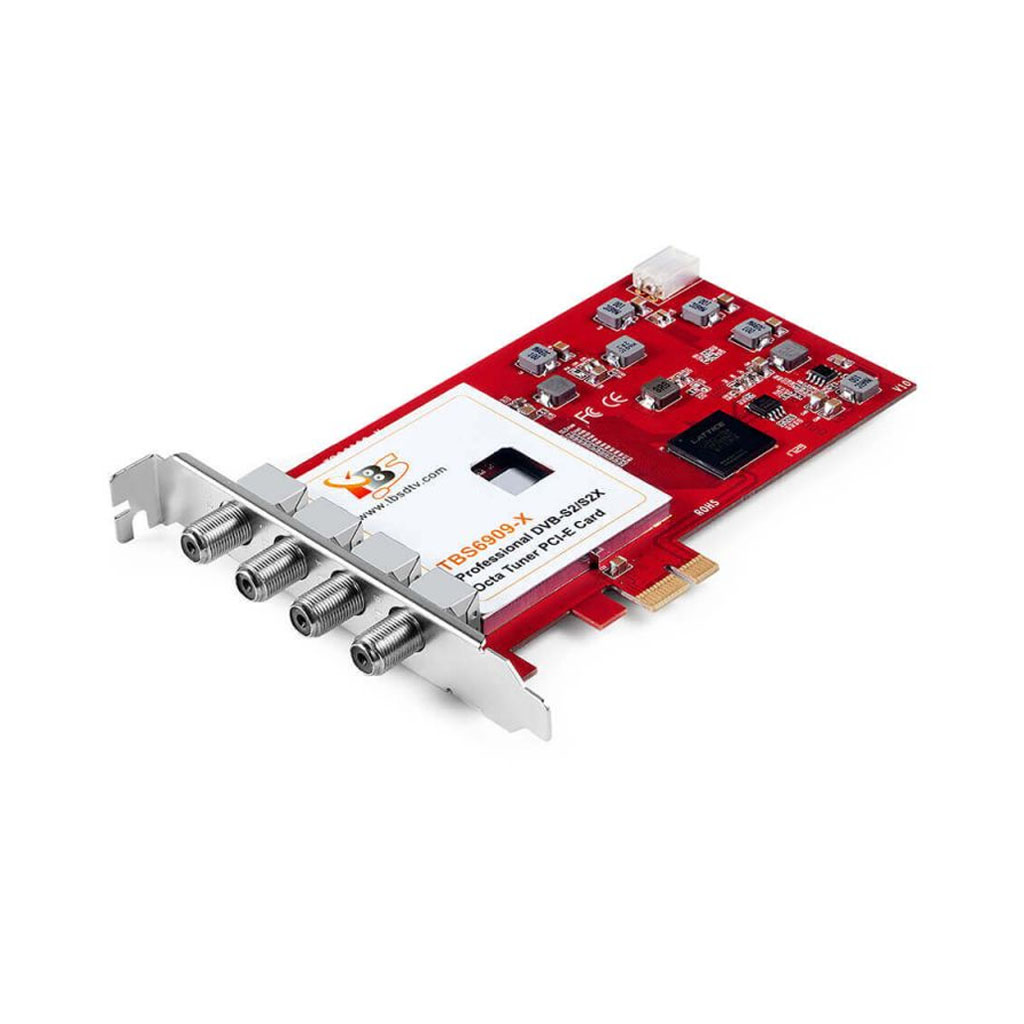

TBS6909-X
TBS DVB-S/S2/S2X Octa Tuner
TBS6909 is a DVB-S/S2/S2X TV tuner card with 8 tuners for watching, recording and streaming.
PRODUCTS INFO
TBS6909-X V2is a powerful DVB-S2X/S2 and annex M octa tuner card with PCI Express interface, it not only supports to receiveSD/HD digital TV channelsfrom8different satellite transponders simultaneously, but also supportsCCM, ACM, VCM and Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909-X V2 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for broadcasting system.
Main Features
Support Octa DVB-S/S2/S2X
Fast scanning functionality for all media
Supports CCM, ACM, VCM and Multi Input Stream
Support wide band
Applications
Data receiving
Media monitoring
Digital content distribution
TECHNIC DETAILS
| Model | TBS6909-X | ||
| Connection | PCI-express | ||
| 4x RF in | |||
| DVB-S/S2/S2X | |||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | ||
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) | |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | |||
| 8/9, 9/10 (S2-MODCODs) | |||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | |||
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | ||
| 7/15, 8/15, 26/45, 32/45 | |||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | ||
| 7/15, 8/15, 26/45, 3/5, 32/45 | |||
| 32APSK | 2/3, 32/45 | ||
| VCM | Yes | ||
| ACM | Yes | ||
| Power consumption | |||
| Input/ Power: | 12V/7~15W | ||
| temperature | 0°~ 60° | ||
| Other information: | |||
| System Requirements | Windows XP / Vista/ 7/8/10, Linux | ||
| Available PCI Express x1, x4, x8 or x16 slot | |||
| Dimension: | |||
| TV tuner card size | 145*92*1.6mm | ||
| Gift Box Size | 200*130*30mm | ||
| Weight | 400g | ||
