SF03-HDS

ALPSAT SATFINDER 3 HD SLIM

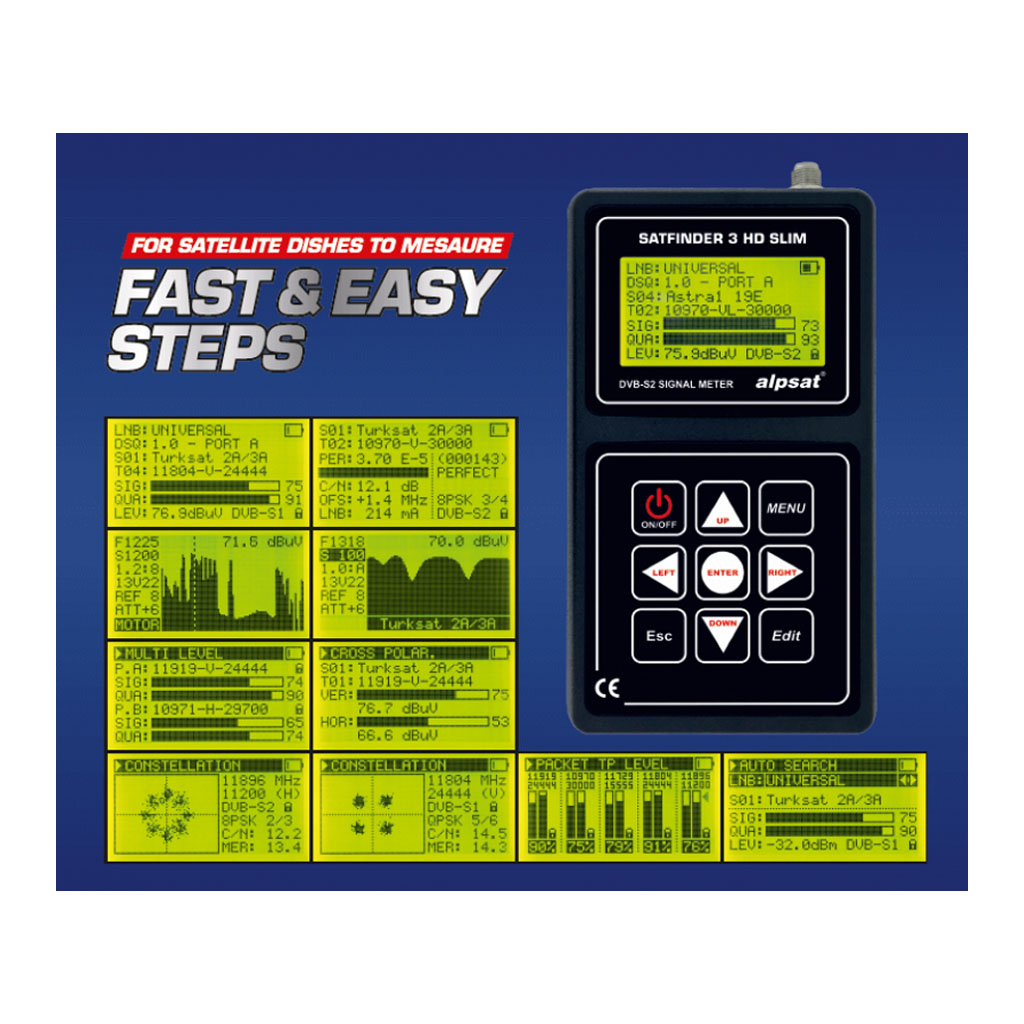

SATFINDER 3 HD SLIM is a DVB-S / DVB-S2 Satellite Signal Meter equipment with Spectrum and Constellation.

SF03-HDS_Main

SATFINDER 3 HD SLIM BASIC FEATURES

SATFINDER 3 HD SLIM is an affordable DVB-S / DVB-S2 Satellite Signal Meter equipment with Spectrum and Constellation for professional dish antenna installers.
USB Port Connection : You may update the software for your device and upload frequencies via the USB Port connection.
DVB-S / DVB-S2 ST Tuner : You may adjust DVB-S / DVB-S2 signals quickly and with precision via the ST processor Tuner.
Spectrum andConstellation Ekranları : Professional installers can make their measurements more precise.
Cross Polarisation: Vertical and Horizontal lnb setting by controlling the levels of signals.
Package Tp Level: You can see multiple frequencies on the same screen.
Touch Membrane : Quick and easy to use with touch-sensitive keys.
Easily Charger: You may easily charge your device in any condition with the charging adapter and with the lighter charging equipment in your vehicle.
LCD Screen : You may use your device at noon and night with its 128×64 pixel led illuminated LCD screen.
Carrying Cover Bag: Your device will be even more durable with its robust and durable bag which may be worn on your waist and neck.
Automatic Satellite and Diseqc Detection: You may use the AUTOMATIC SATELLITE or AUTOMATIC Diseqc option on the menu and your current satellite will be indicated on the screen.
6 Different Languages : Turkish – English – Dutch – German – Spanish – French

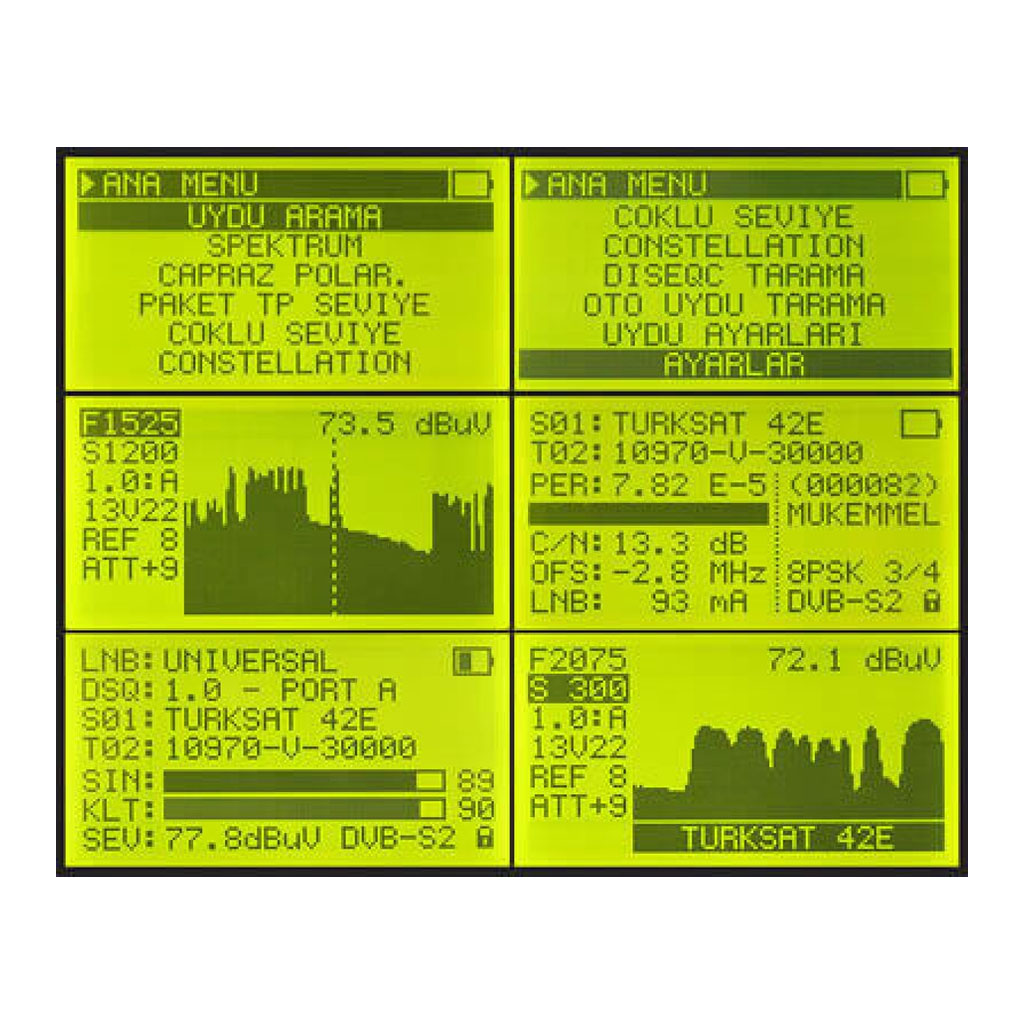

SATFINDER 3 HD SCREEN SHOTS

SATELLITE SEARCH

SIGNAL DETAILS

SPECTRUM

CROSS POLARISATION

PACKET TP LEVEL

MULTI LEVEL

CONSTELLATION DIAGRAM

BIG FONT SIGNAL LEVEL

SATFINDER 3 HD SLIM TECHNICAL SPECIFICATIONS

IF Frequency Range : 950 Mhz – 2150 Mhz
Satellite : 32 Satellite
Frequencies : 16 TP for a SAT , total 512 TP
Tuner  : ST Chipset Solution
RF Connektor : F Type Connector
Symbol Rate : 2000 – 45000 baud
Mod : Auto QPSK, 8PSK
Signal Range : -65 dBm ~ -15dBm
22 KHZ : Otomatik
LNB Types : 30 Lnb Types
ShortCut Circuit : LnbP21
Diseq-C Protocol : Diseq-C 1.0 , 1.1 , 1.2
Spectrum : Full band Spectrum with Span
Constellation : QPSK, 8PSK Data errors
Auto Diseq-C : Which port Which Satellite
Auto Satellite Scan : Fast Scan
Frequency Editting : With EDIT Button
Levels : BER , PER , C/N , OFFSET measurements
Measurement : dBuV, dBm, dBmV
Display : 128×64 LCD
Display Backlight : Yellow-Green Backlight
Sizes : 6cm x 14cm x 8cm
Weight : 500 gr
LNB Out Supply : 13V /18V – 650mA
Max. Power : 750 mA
Battery : 2200maH 7.4V Lit-Ion
Charge Time : 2 Hours
Useage Time : 180 ~220 Minutes
Charger : 220V AC  /  12VDC-1A
Car Charger : 12 V – 1 A
PC Connection : USB Port
PC Software : Windows Xp/Vista/7/10 – 32&64 Bit
Sound : Buzzer speaker
Companent : SMD
Languages : English-German-Turkish-Deutch-French-Spanish

SUPPORTED LNB TYPES

  • UNIVERSAL LNB : 9750 – 10600
  • C BAND LNB : 5150
  • MDU 1 LNB : 10000-10450
  • MDU 2 LNB : 9925 – 9550
  • MDU 3 LNB : 12930 – 9830
  • MDU 4 LNB : 12650 – 13035 – 12930
  • MDU 5 LNB : 12976 – 12646 – 12584 – 12894
  • UNIVERSAL 2 LNB : 9750 – 10700
  • DBS LNB : 1350
  • SINGLE 9750
  • SINGLE 10000
  • SINGLE 10250
  • SINGLE 10500
  • SINGLE 10600
  • SINGLE 10700
  • SINGLE 10750
  • SINGLE 11250
  • SINGLE 11300
  • C BAND 5760
  • C BAND 5950
  • UNIVERL 3 CIR : 9750 – 10700
  • C BAND CIR 5760 – 5950
  • C BAND MDU 5150 – 5950
  • KA BAND 17250
  • KA BAND 18250
  • KA BAND 18750
  • KA BAND 19250
  • KA BAND 21000
  • IF 21SCR- 0MHz
  • IF NO POWER

PC EDITOR SOFTWARE

BOX INCLUDES

1 pc Black SATFINDER 3 HD SLIM
1 pc Black Carrying Bag
1 pc English-Turkish User Guide
1 pc Charger
1 pc Car Charger
1 pc Spare F-F Connector
1 pc USB Cable

PREVIEW VIDEOS

FILES AND DOCUMENTS

File Name Version Date Software Firmware Manual Brochure
SATFINDER 3HD SLIM v2.23 07.11.2018  Download  Open  Download
