SF02-HDS

ALPSAT SATFINDER 2 HD SLIM

SATFINDER 2 HD SLIM fast and easy satellite finder equipments for semi professional DVB-S/DVB-S2 installers.

SF02-HDS_Main

SATFINDER 2 HD SLIM BASIC FEATURE

SATFINDER 2 HD SLIM fast and easy satellite finder equipments for semi professional DVB-S/DVB-S2 installers.
Touch screen membrane: Easy and fast usage with the sensitive touch screen buttons.
DVB-S2 Tuner : You may adjust the signals quickly and with precision via DVB-S / DV-S2 Serit Tuner
ComPort Connection: You can update the software of your unit and download frequencies by means of the COM Port connection.
Easily Charged: You may easily charge your device in any condition with the charging adapter and with the lighter charging equipment in your vehicle.
LCD Screen : You may use your device at noon and night with its 16X2 led illuminated LCD screen.
Protection Bag: Your device will be even more durable with its robust and durable bag which may be worn on your waist and neck.
6 Different Languages : Turkish – English – Dutch – German – Spanish – French

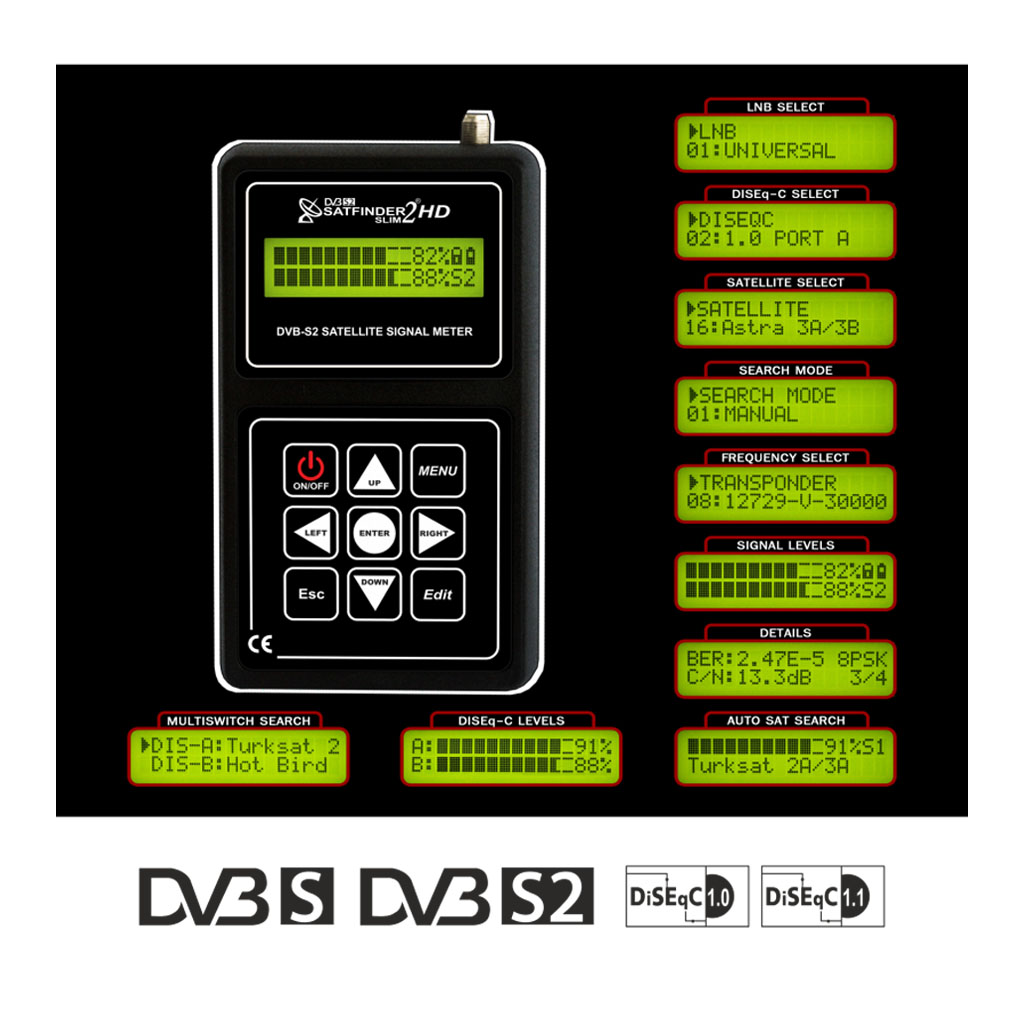

SATFINDER 2 HD SLIM SCREEN SHOTS

LNB SELECT

SATELLITE SELECT

TP SELECT

DISEQ-C SELECT

SATELLITE SEARCH

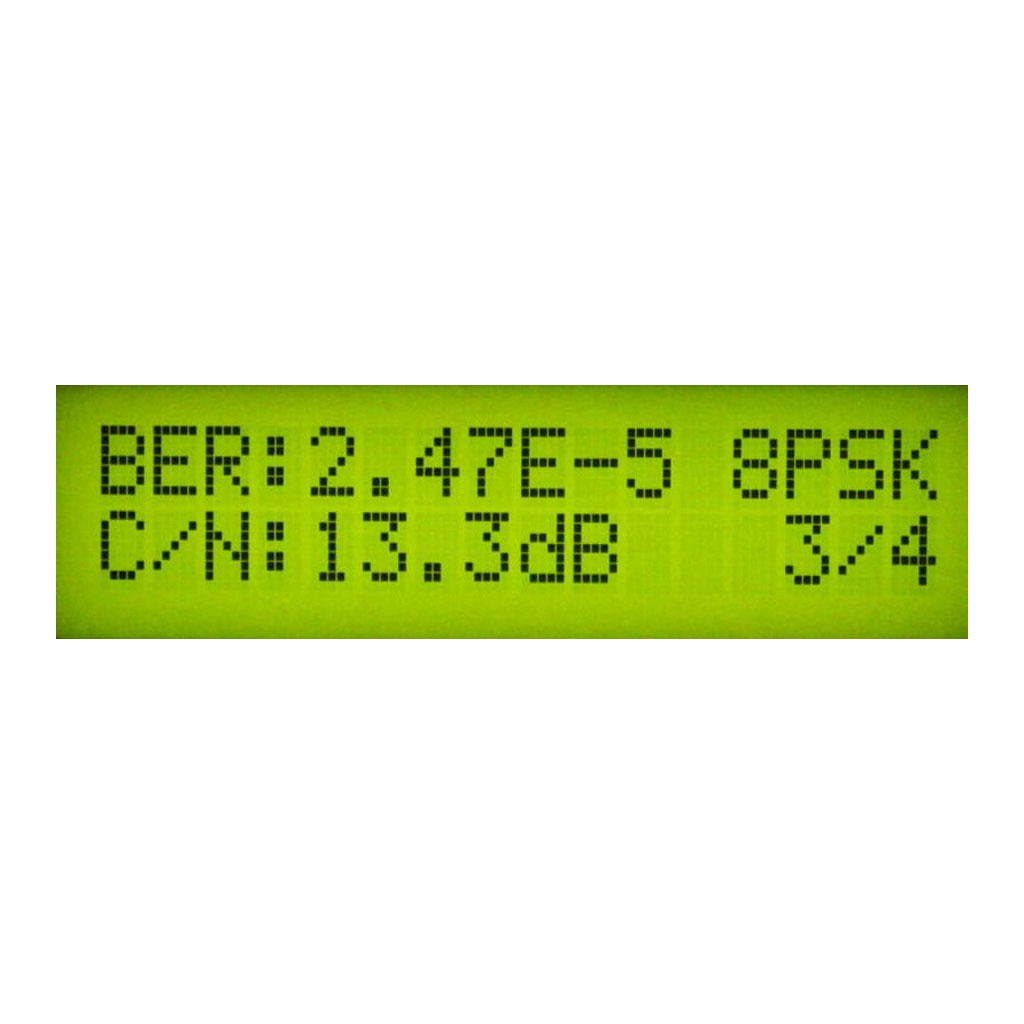

SIGNAL DETAILS

AUTO SAT FIND

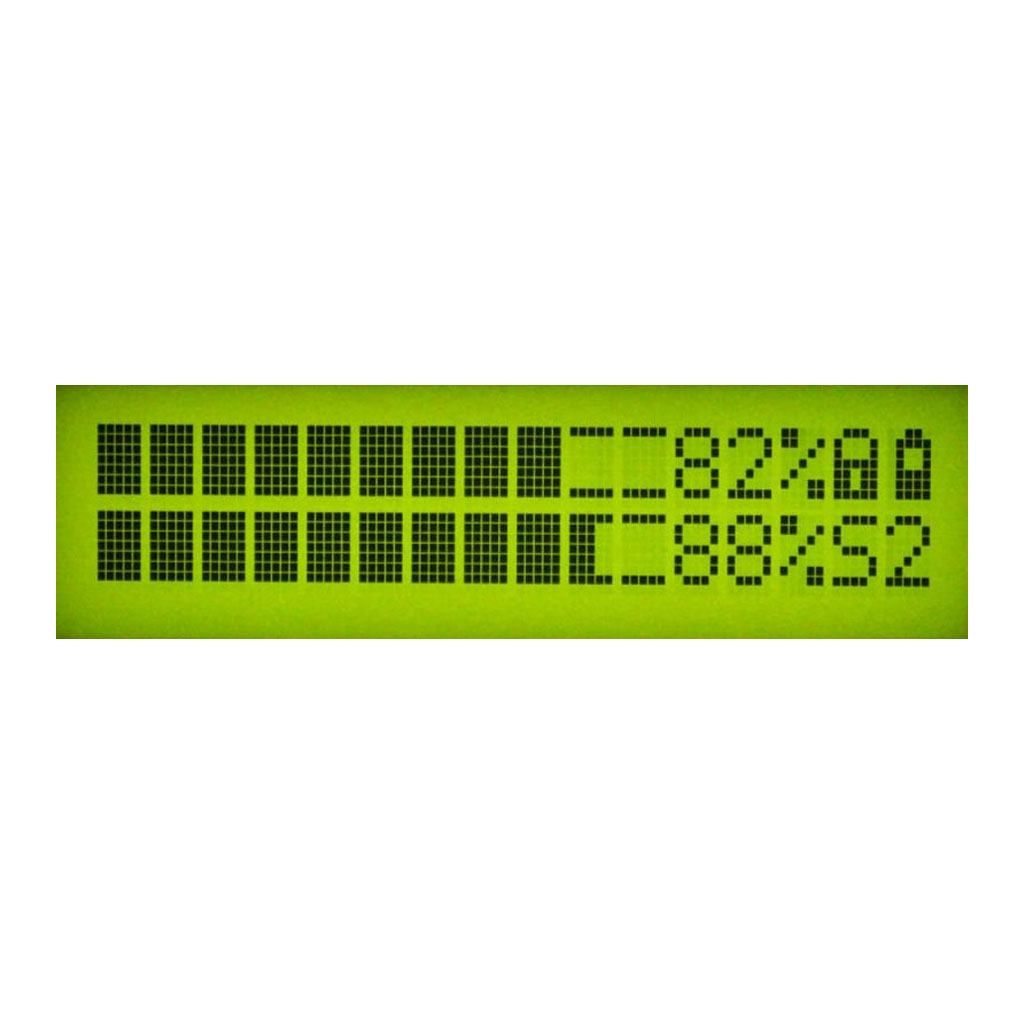

MULTI LEVEL SCREEN

TECHNIC DETAILS

IF Frequency Range : 950 Mhz – 2150 Mhz
Satellite : 16 Satellites
Transponder : Each Sat 8 TP , Total 128 TP Memory
Symbol Rate : 2000-45000 MBaud
Tuner : DVB-S/S2 SERIT
FEC : QPSK / 8PSK / 16APSK / 32 APSK
Signal Level Range : -65 dBm ~ -15dBm
RF Connektor : F Type Connektor
Diseq-C Protocol : DiseqC – 1.0 , 1.1
Shotcut Circuit : LnbP21
22 KHZ : Auto
LNB Types : 32 Lnb Type
Multi Level : 2 Satellite Signal in one screen
Auto Sat Search : Fast Sat Identify
Neq Frequency Editor : Frequency and Sat name changeble with EDIT button.
Level Types : BER , PER , C/N  Levels
Screen Type : 16X2 LCD
Screen Backlight : Yellow-Green Backlight
Dimensions : 6cm x 14cm x 8cm
Weight : 500 gr
LNB Supply : 13V – 18V / 650mA
Max. Power Consuption : 750 mA
Battery : 2000maH 7.4V Lit-Ion
Charging Time : 3-4 Hours
Battery Work Range : ~180-220 Minutes
Charger : 220V-AC input , 12V-DC output,1A
Car Charger : 12V-1 A
PC Connection : RS 232 ComPort
PC Software : Windows Xp/Vista/Win7/10 – 32&64 Bit
Sound : Buzzer
Lanugage : English, French, German, Turkish , Deutch, Spanish
Component : SMD

LNB TYPES

  • UNIVERSAL LNB : 9750 – 10600
  • C BAND LNB : 5150
  • MDU 1 LNB : 10000-10450
  • MDU 2 LNB : 9925 – 9550
  • MDU 3 LNB : 12930 – 9830
  • MDU 4 LNB : 12650 – 13035 – 12930
  • MDU 5 LNB : 12976 – 12646 – 12584 – 12894
  • UNIVERSAL 2 LNB : 9750 – 10700
  • DBS LNB : 1350
  • SINGLE 9750
  • SINGLE 10000
  • SINGLE 10250
  • SINGLE 10500
  • SINGLE 10600
  • SINGLE 10700
  • SINGLE 10750
  • SINGLE 11250
  • SINGLE 11300
  • C BAND 5760
  • C BAND 5950
  • UNIVERL 3 CIR : 9750 – 10700
  • C BAND CIR 5760 – 5950
  • C BAND MDU 5150 – 5950
  • KA BAND 17250
  • KA BAND 18250
  • KA BAND 18750
  • KA BAND 19250
  • KA BAND 21000
  • IF 21SCR- 0MHz
  • IF NO POWER

PC EDITOR SOFWARE

BOX INCLUDES

1 piece Black SATFINDER 2 HD SLIM
1 piece Black Leather Bag Cover
1 piece English-Turkish User Guide
1 piece Charge Adaptor
1 piece Car Charge
1 piece F-F Connector
1 piece RS 232 Cable

PREVIEW VIDEOS

FILES AND DOCUMENTS

File Name Version Date Software Firmware Manual Brochure
SATFINDER 2HD SLIM v2,46 21.01.2019  Download  Open  Download
SATFINDER 2HD SLIM v2.45 28.05.2018  Download  Open  Download
