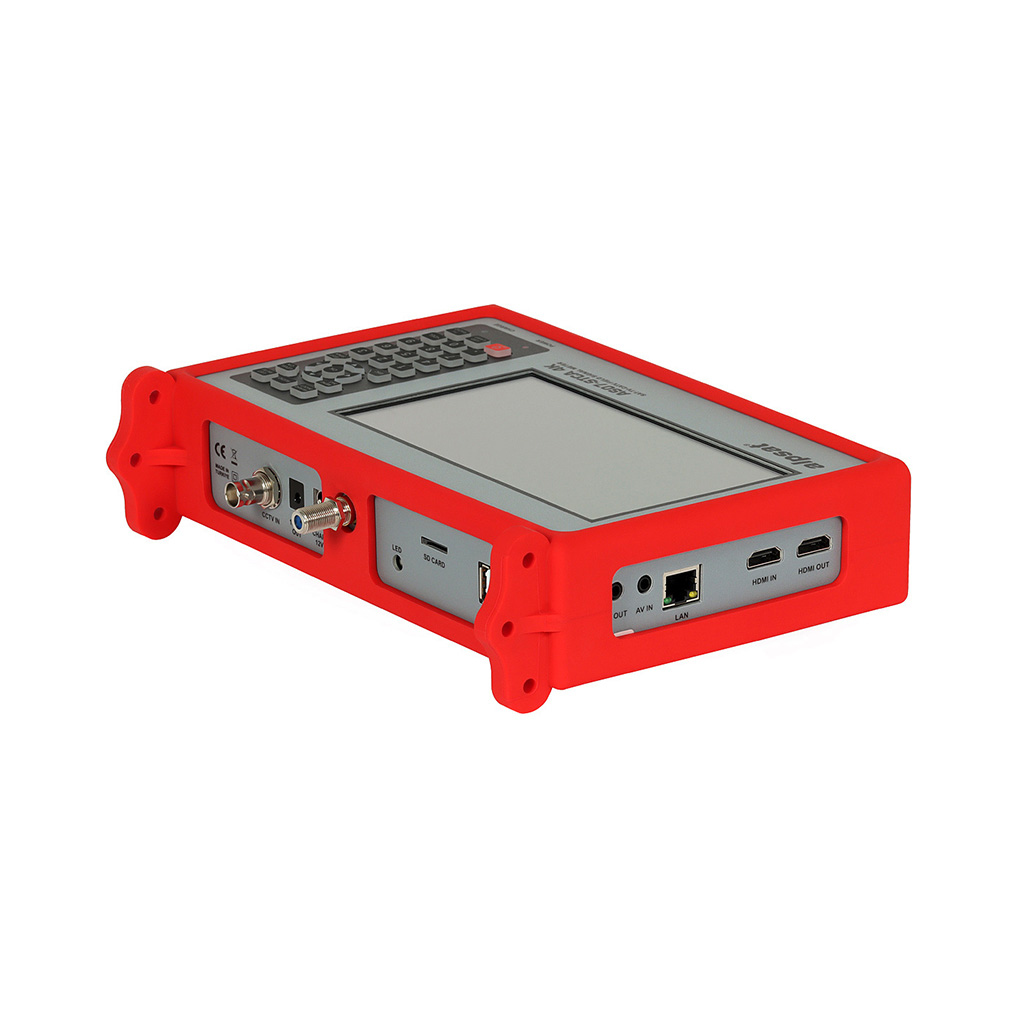

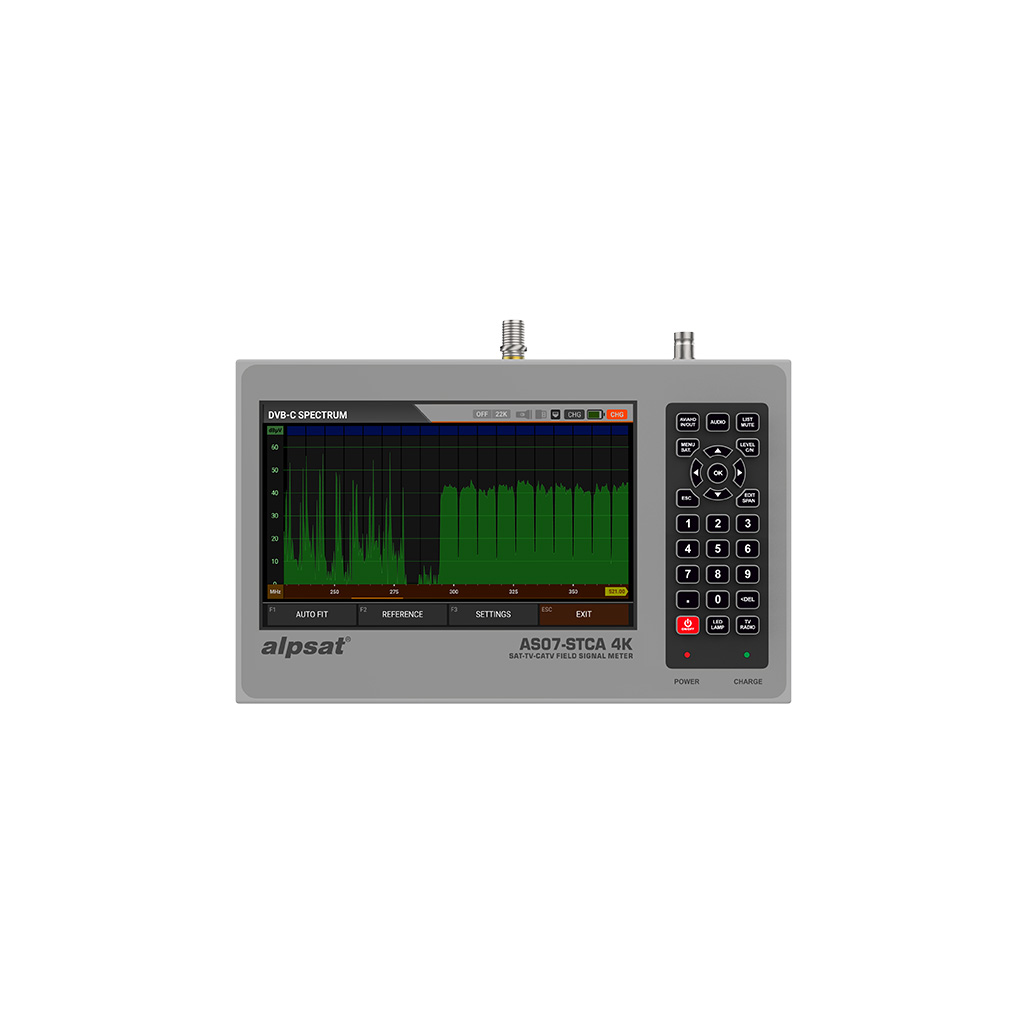

AS07STCA-4K

ALPSAT DVB SIGNAL ANALYZER

DVB S-S2 / T-T2 / C / J.83B / ISDB-T COMBO Signal Analyzer

AS07 STCA 4K-Main

AS07 STCA 4K MAIN FEATURES

Dvb S-S2 / T-T2 / C / J.83b / Isdb-T Combo Signal Analyzer
Single Rf Input 45-2150mhz 75Ohm F Connector
7” High Resolution Touch Screen
H.264, H.265 4K Video Display

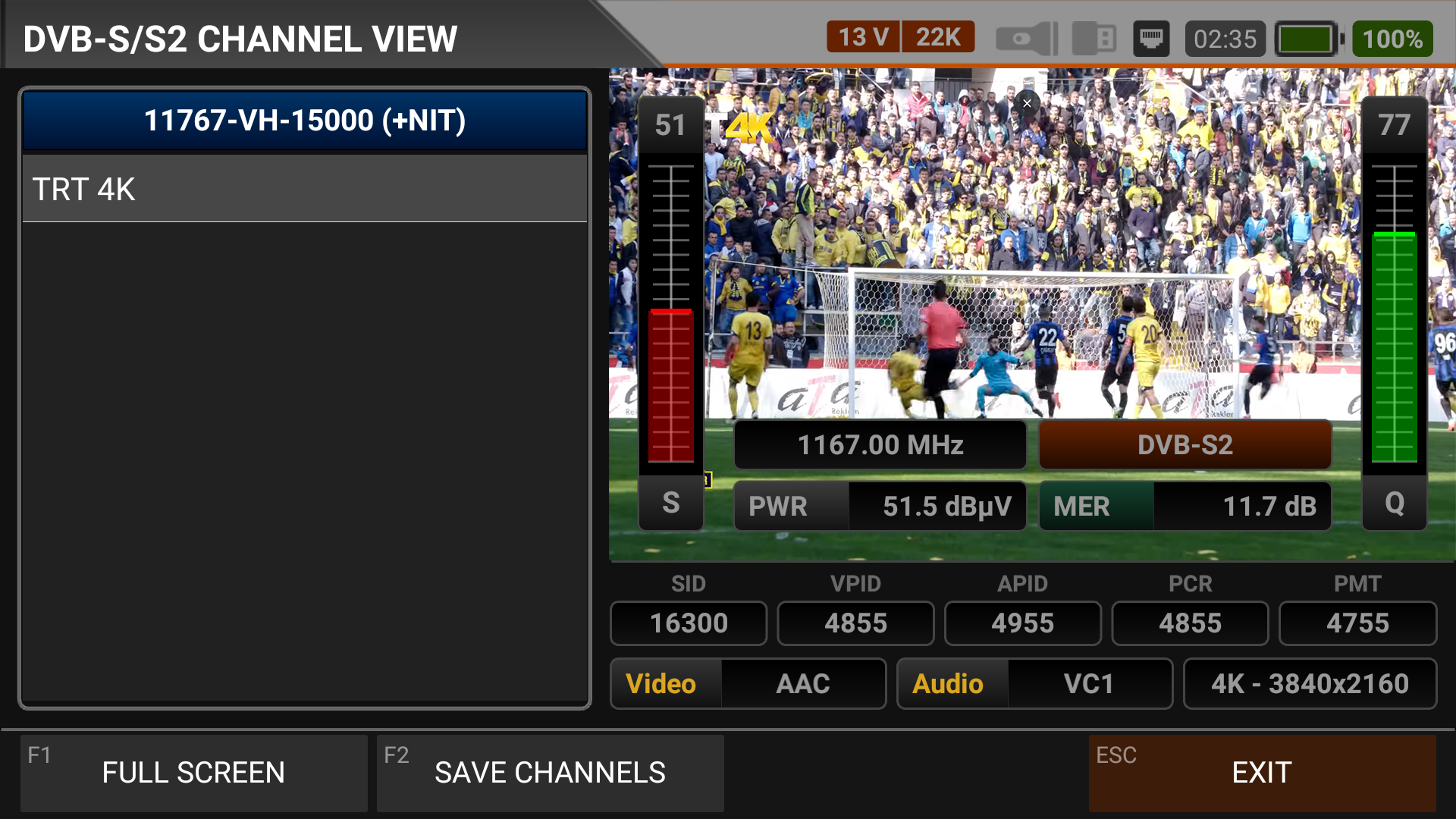

Program List And Audio&Video Pıd Information On One Screen.
1.9 Ghz High-Speed Processor – 2GB RAM/16GB Memory
5000mah 7.4v Replaceable Lith-Ion Battery. It Can Work For 3-4 Hours.
Software & Frequency Database Update Via Usb Memory And Network
Programmable 50 Catv Plans, 50 Terresterial Plans, 250 Satellite Memory

10,000 Frequency And Channel Memory
Backlit Numeric Silicone Keypad
Battery Protection / Automatic Shut-Off Feature
Led Torch Light For Dark Environments
Voltage Test Screen For End User Testing.
1.2 Kg With Battery
Dimensions 240mm X 155mm X 50mm
Operating Range 0 °C To +50 °C
Relative Humidity 90%

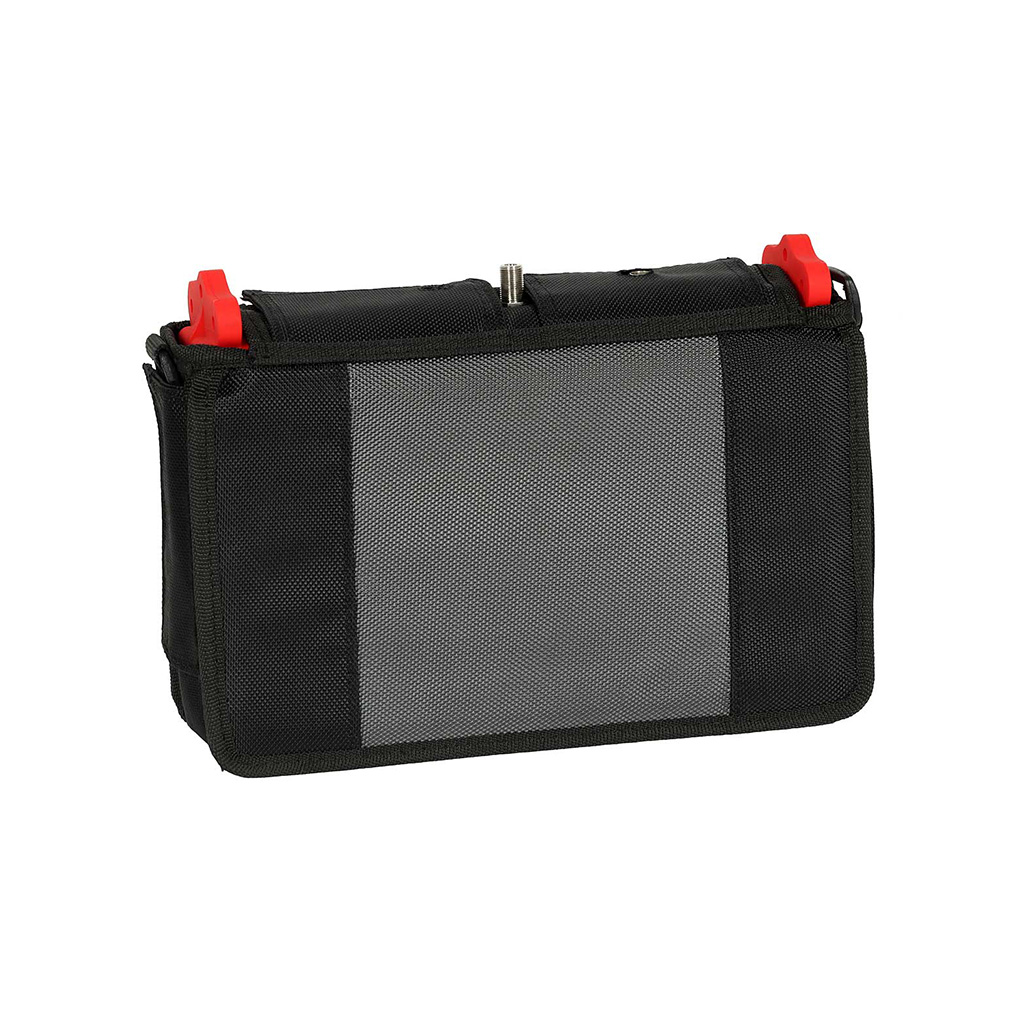

With Carrying Bag

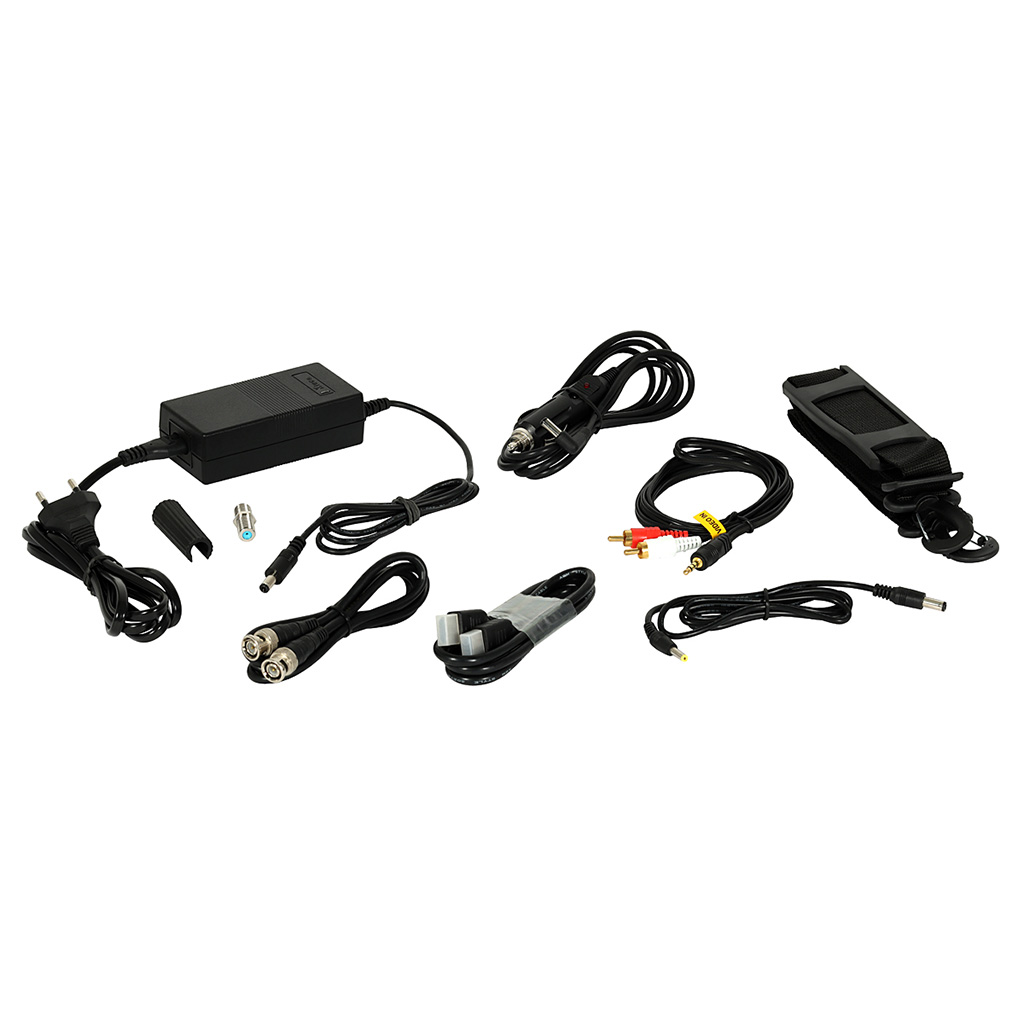

12Volt 1.5A Charger And Car Charging Cable

DVB-S / DVB-S2 DIGITAL SATELLITE FEATURES

Dvb S/S2 Sat: 950-2150 Mhz Frequency Measurement Range
-80 to 0 dBm Power Measurement Range

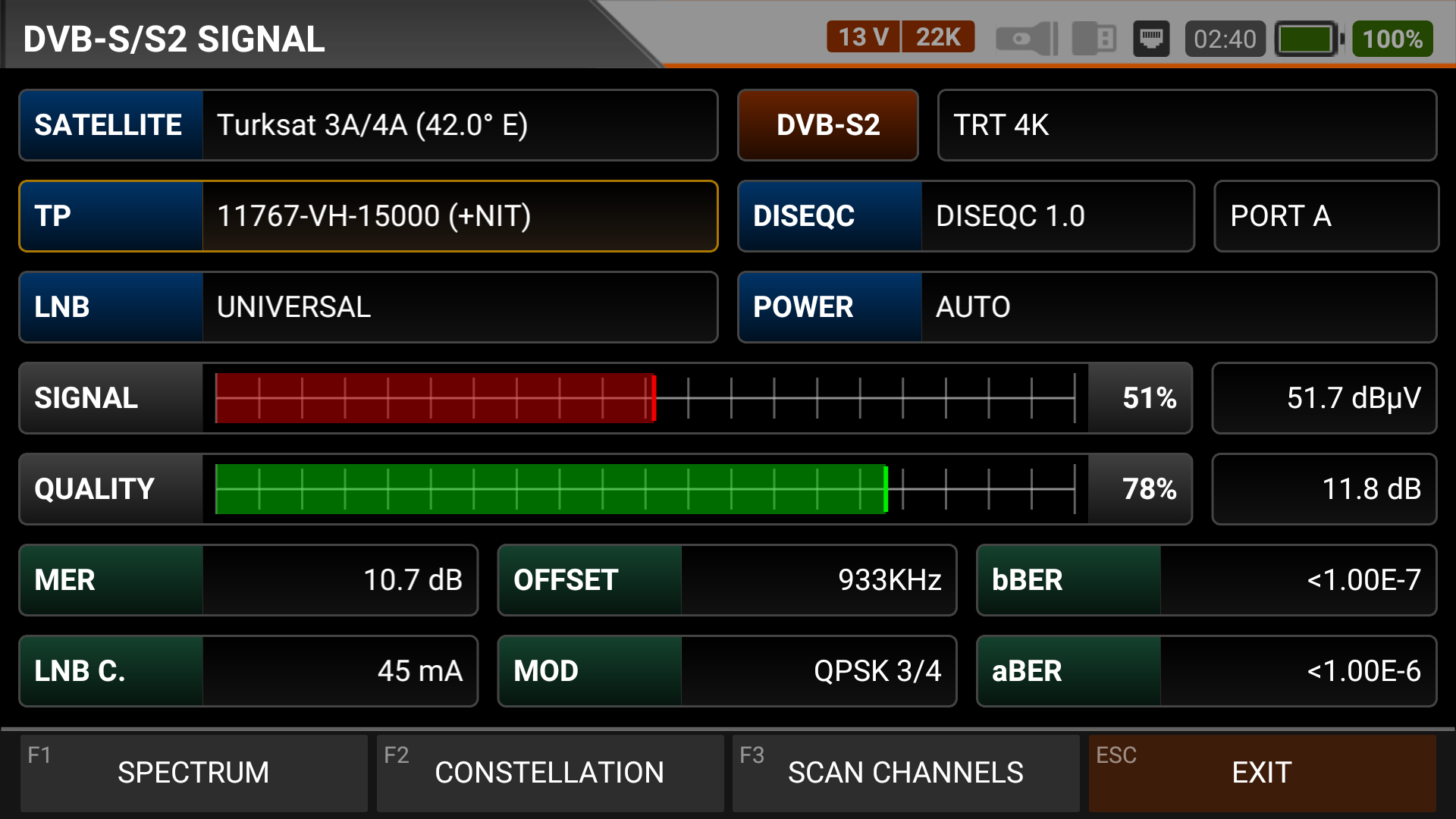

Ber, Mer, C/N Digital Measurement Information
Average 1 dB Measurement Accuracy (2.5dB Max.)

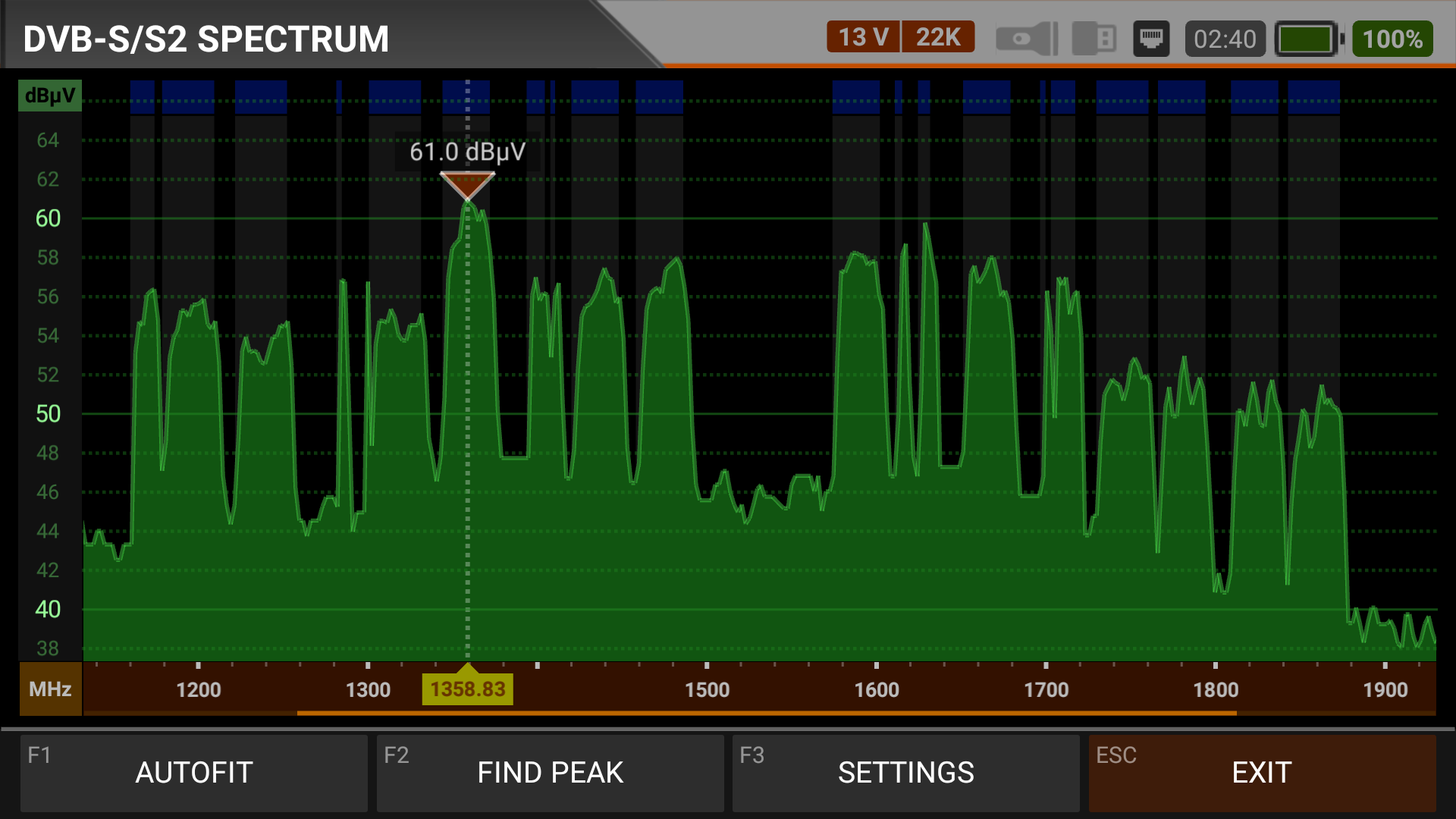

Spectrum Analyzer with Real Time and Image Memory
50, 75, 150, 300, 600, 1200mhz Spectrum Span Ranges
Automatic NIT Frequency Recognition and Channel Finding Feature on Spectrum Screen.

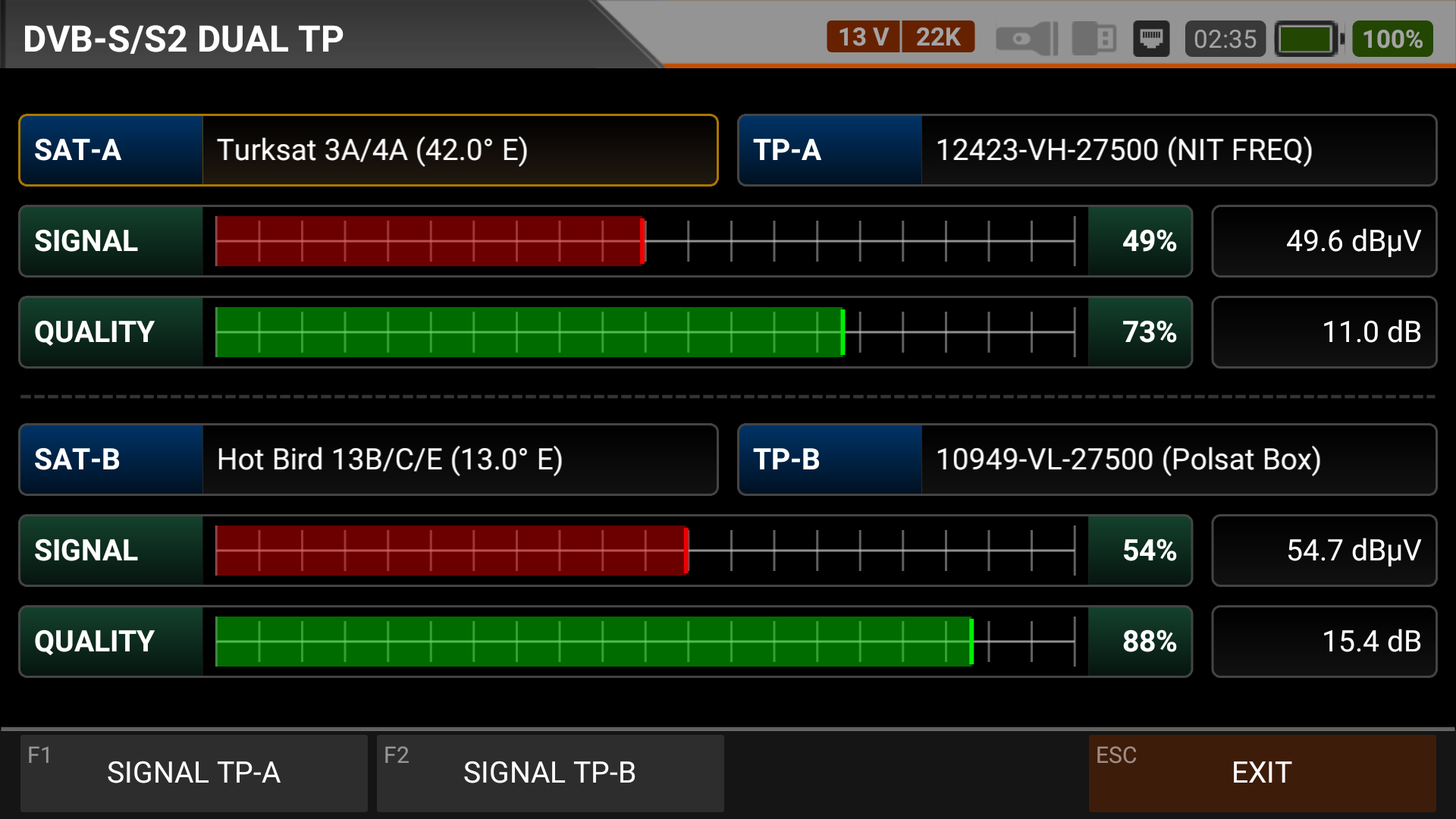

Tp Control Menu Showing 4 Tp for 1 Satellite and 8 Tp for 2 Satellites on a Single Screen
Measuring 2 Satellite Signals on a Single Screen for Dual Feed Lnbler

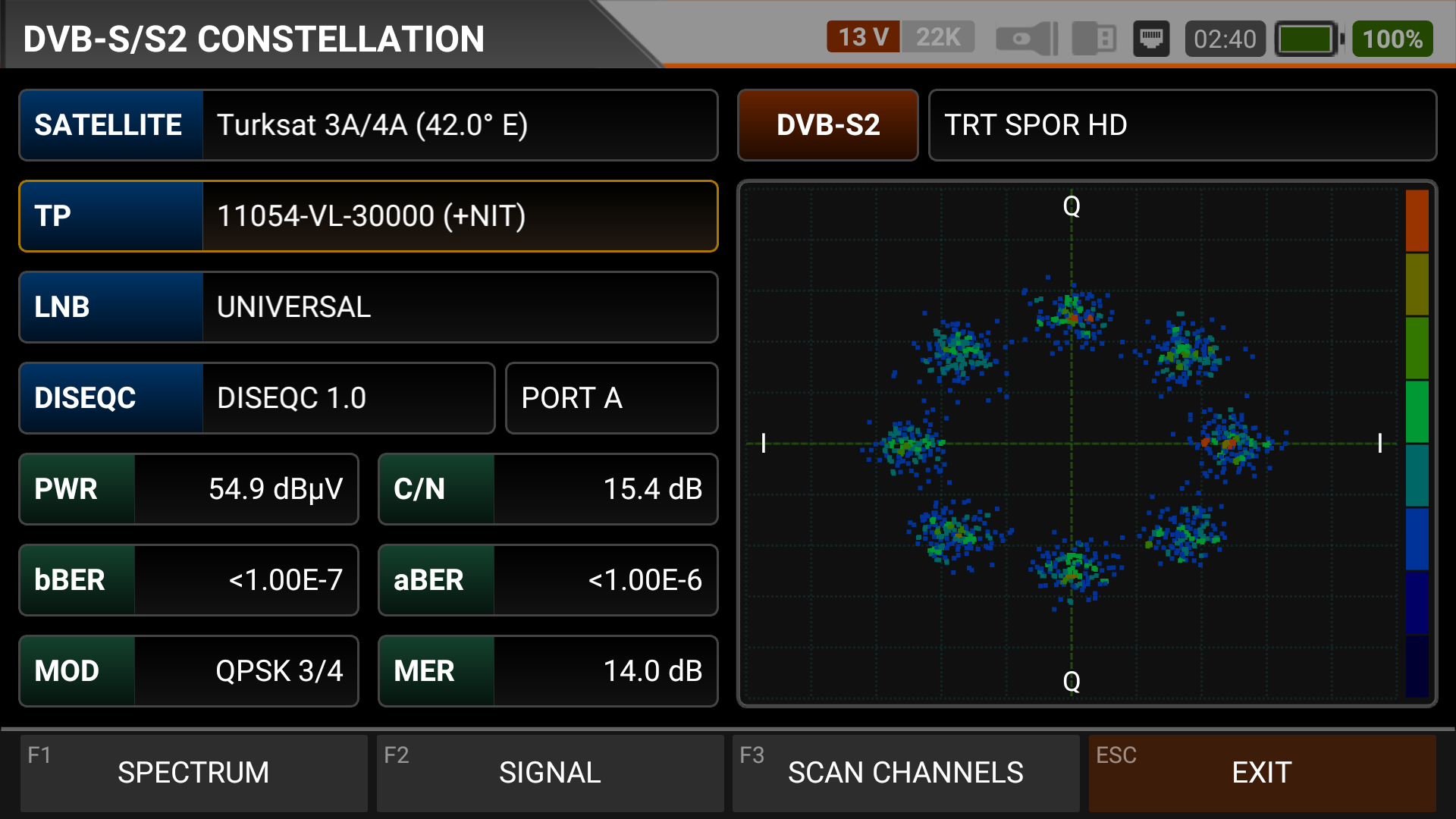

Conselation Screen for qPsk & 8Psk Digital Satellite Signals.
Automatic Diseqc 1.0-1.1-Unicable Ports Discovery Feature

Total 5000 Tp Memory from 250 Current Satellites
Automatic Signal Recognition Assistant
4K Dvb-S/S2 Tv Video
Fec: Dvb-S:1/2, 2/3, 3/4, 5/6, 7/8 –
Dvb-S2: 1/2, 2/3, 3/4, 5/6, 8/9, 9/10, 2/5, 3/5
1 -45ms/S Fully Automatic Symbol Rate.
Diseqc 1.X, Diseqc 2.X And Usals Support
Unicable 1&2 En50494/En50607 Jess Support
13/18/21v – 500ma Lnb Supply
32 Different Ka, Ku, C, L / R Band Lnb Types
dBm, dBuv and dBmv Power Levels
Sound Warning Proportional to Show of Power

DVB-CABLE TV FEATURES

Dvb C And Analog Cable Tv: 45 – 1002 Mhz Frequency Range
-90 To 0 Dbm Power Measurement Range
Ber, Mer, C/N Digital Measurement Information
V/A Difference Indicator for Analog Cable Tv 4db-26db
Analog Audio Carrier Setting 4.5mhz, 5.5Mhz, 6.0Mhz, 6.5Mhz
Average 1 Db Measurement Accuracy (2.5 Db Max.)

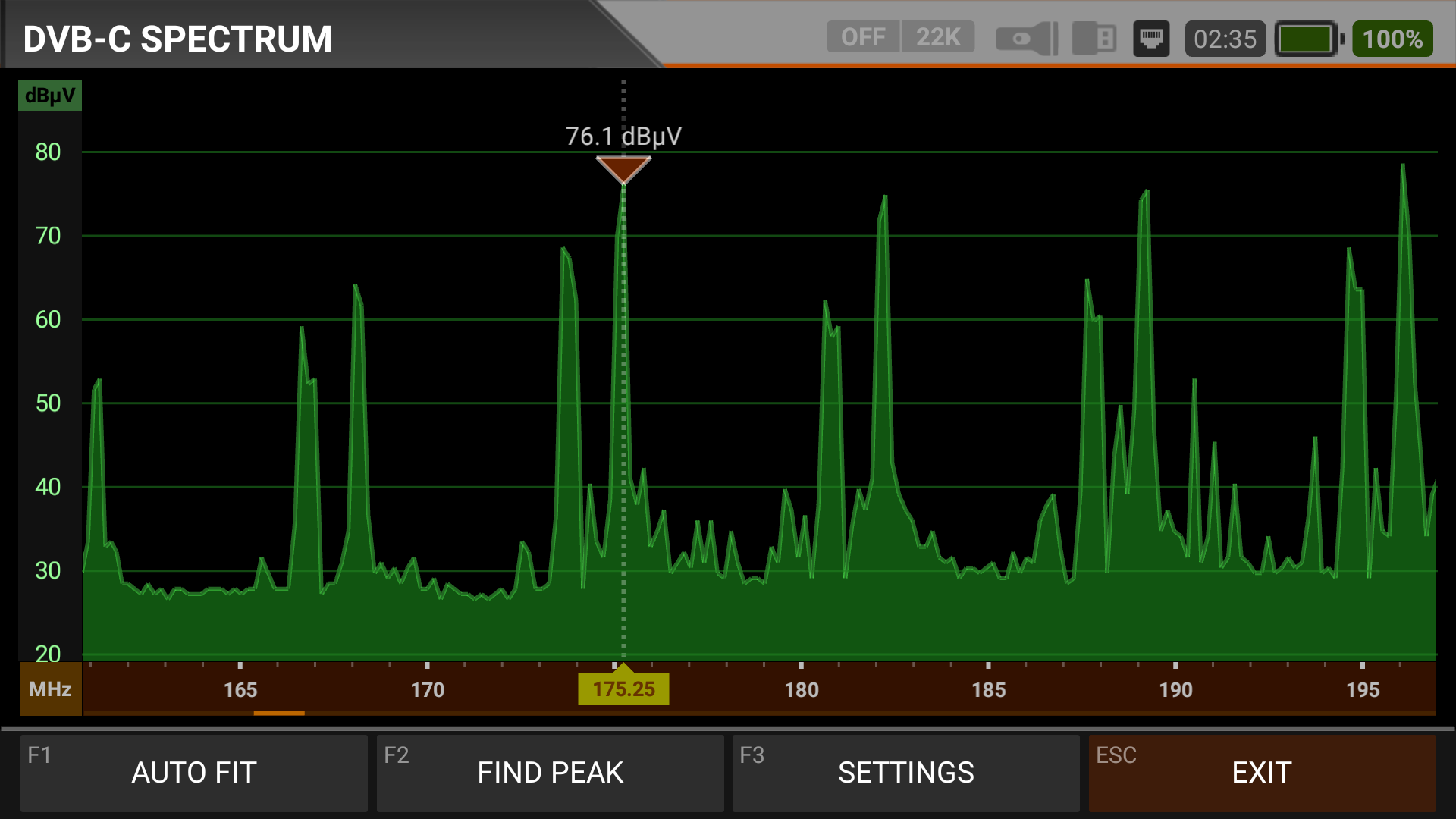

Spectrum Analyzer with Real Time and Image Memory
Full, 15, 30, 50, 100, 200, 500mhz Spectrum Span Range
Automatic NIT Frequency Recognition and Channel Finding Feature on Spectrum Screen.
Band Head and End Measurement with Tilt / Limit Function
Automatic Band Scan and Add to Frequency Plan

Changing Frequency Plan Content with Keypad
Catv Constellation: 16Qam, 32Qam, 64Qam, 128Qam, 256Qam

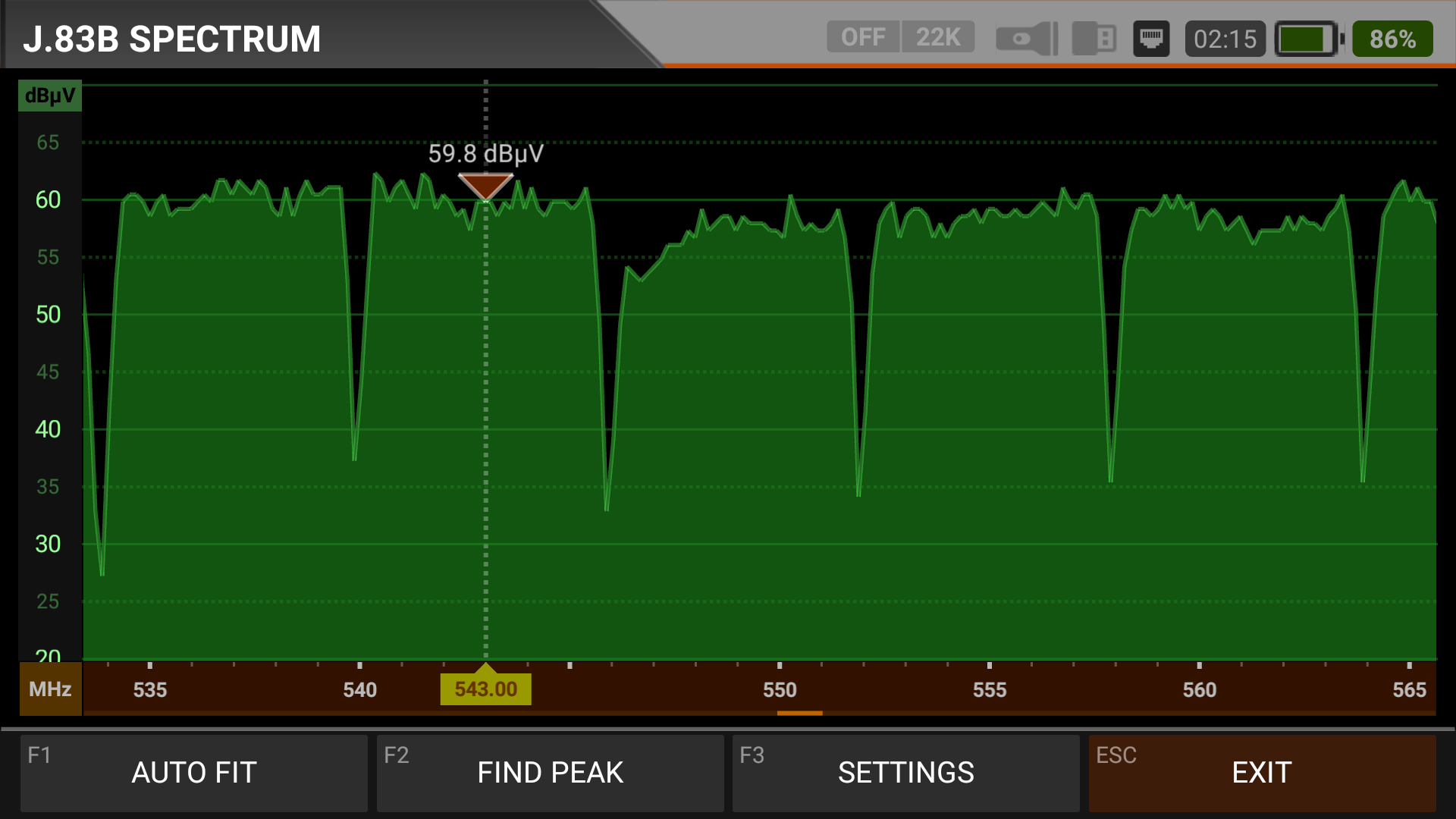

Dvb-C & Qam Annex A/C And J.83b Additional Feature
Symbol Rate: 2 To 6.999ms/S – Fully Automatic
6 Mhz, 7 Mhz, 8 Mhz Channel Bandwidth
More than 4000 Tp Frequencies in 30 Frequency Plans
Automatic Signal Analysis Assistant
4K Digital Cable Tv Video Display
dBm, dBuv and dBmv Power Levels
Sound Warning Proportional to Show of Power

DVB-Terrestrial TV Features

Dvb T/T2 And Terrestrial Analog : 45 – 1002 Mhz Frequency Range
-90 To 0 dBm Power Measurement Range
Ber, Mer, C/N Digital Measurement Information
V/A Difference Indicator for Analog Terrestrial Broadcasting 4db-26db
Analog Audio Carrier Setting 4.5mhz, 5.5Mhz, 6.0Mhz, 6.5Mhz
Average 1 Db Measurement Accuracy (2.5 Db Max.)
Spectrum Analyzer with Real Time and Image Memory
Full, 15, 30, 50, 100, 200, 500mhz Spectrum Span Range
Automatic NIT Frequency Recognition and Channel Finding Feature on Spectrum Screen.
Band Head and End Measurement with Tilt / Limit Function
Automatic Band Scan and Add to Frequency Plan

Changing Frequency Plan Content with Keypad
Terrestrial Constellation: Qpsk, 16qam, 64qam (Dvb-T) 256qam (Dvb-T2)
Fec : Dvb-T: 1/2, 2/3, 3/4, 5/6, 7/8, Dvb-T2:1/2, 2/3, 3/4, 5/6, 7/8, 3/5, 4/5
1.7 Mhz, 5mhz, 6 Mhz, 7 Mhz, 8 Mhz Frequency Bandwidth
5v, 12v, 20v/250ma Antenna Supply Voltage
More than 4000 Tp Frequencies in 30 Frequency Plans
Automatic Signal Analysis Assistant
Hd & Sd Digital Terrestrial Tv Video Display
dBm, dBuv and dBmv Power Levels
Sound Warning Proportional to Show of Power

AHD-TVI-CVI ANALOG CCTV KAMERA TEST MONİTÖR ÖZELLİĞİ

<ul>
<li>8mp AHD Camera Support</li>
<li>8mp TVI Camera Support</li>
</ul>

<ul>
<li>5mp CVI Camera Support</li>
<li>576px Analog Video Support</li>
</ul>
