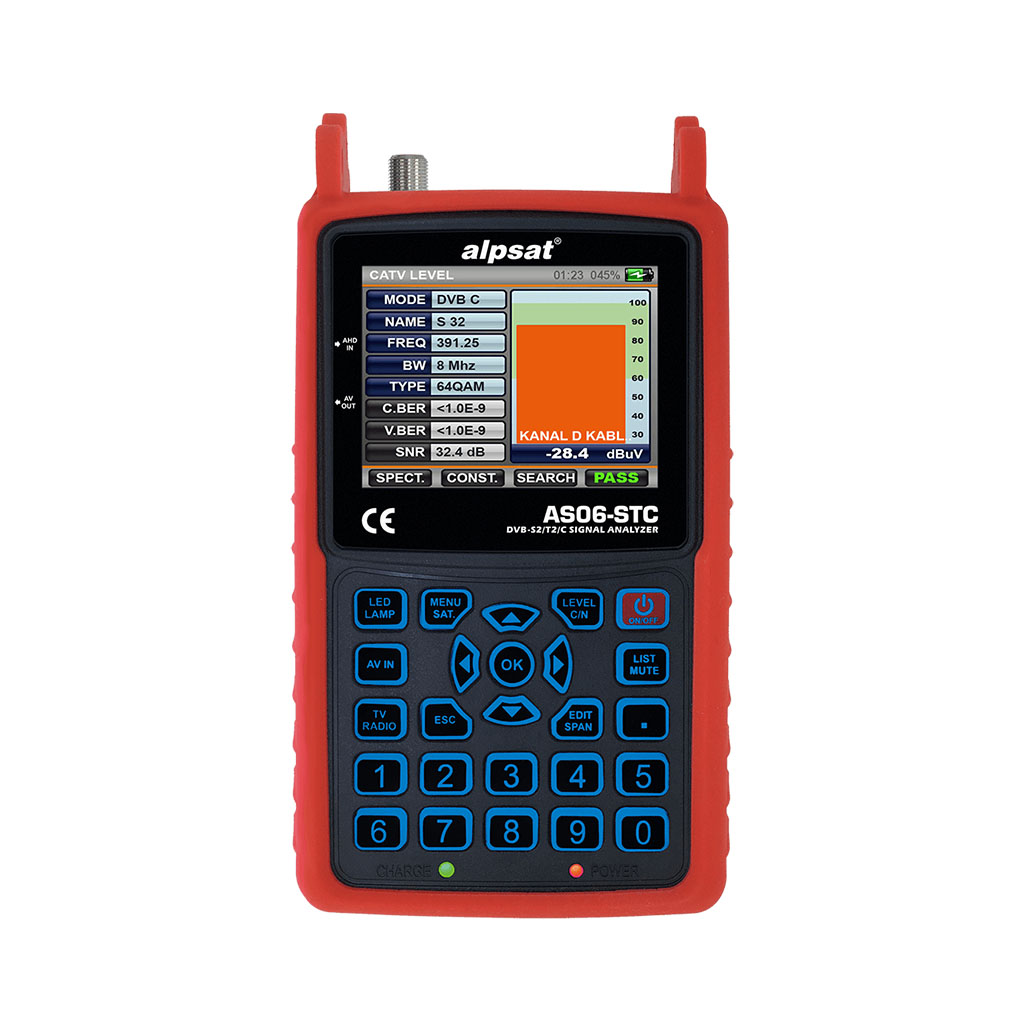

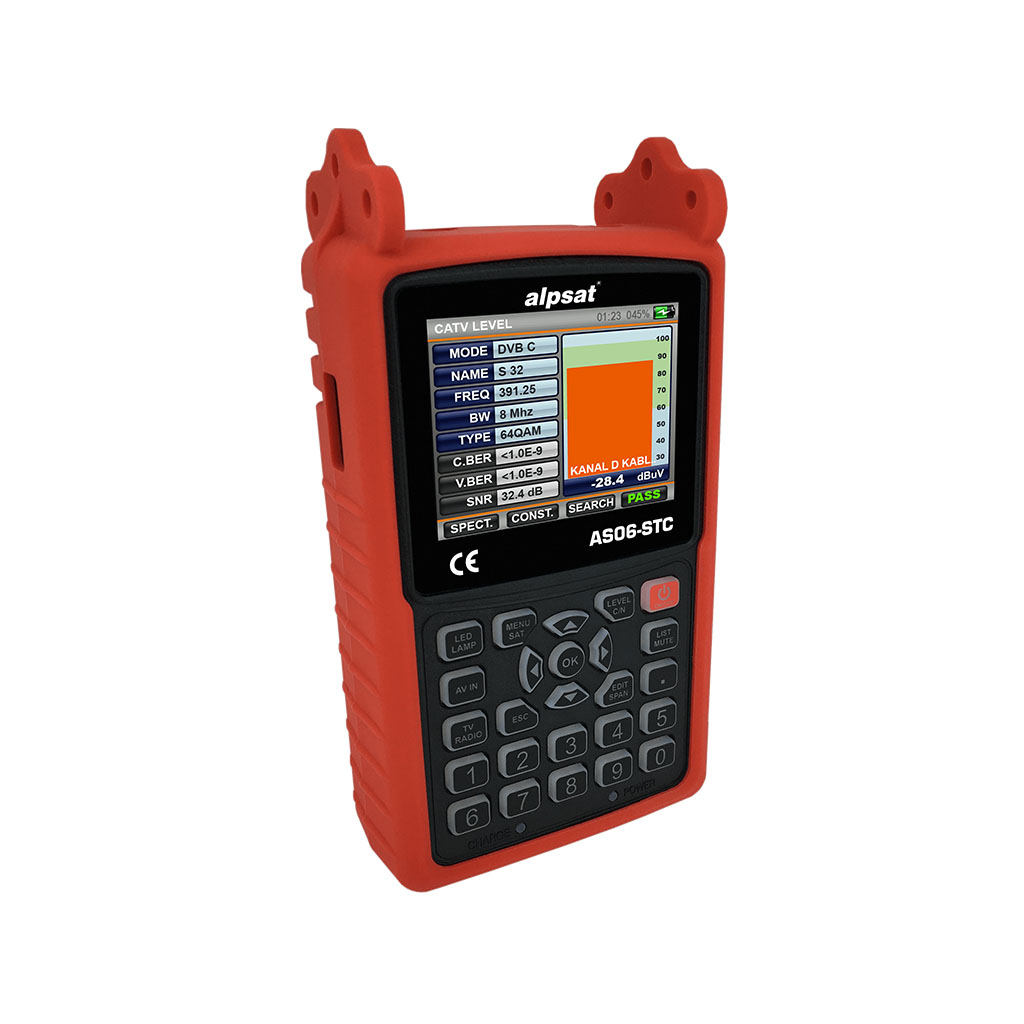

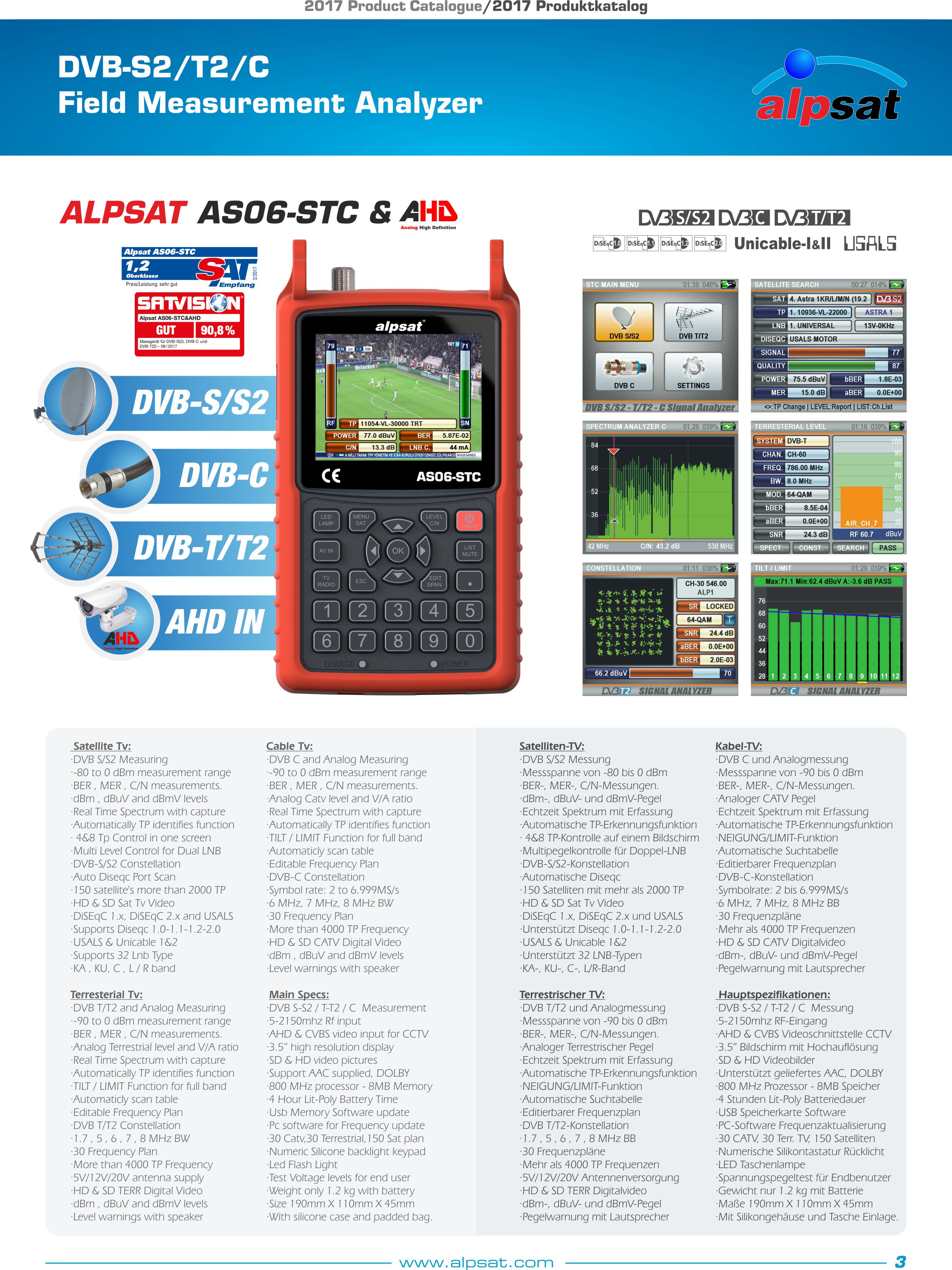

AS06STC-AHD V2

ALPSAT SIGNAL ANALYZER

DVB-S / S2, DVB-C, DVB-T / T2 + ANALOG signal measurement. Real-Time Spectrum and AHD-TVI-CVI-CVBS Input.

600x450test

MAIN FUNCTIONS

  • DVB S-S2 / T-T2 / C  COMBO Signal Analyzer
  • All in one 45-2150mhz 75 ohm (“F”) Rf input
  • AHD-TVI-CVI and Analog video input for CCTV cameras
  • 3.5” high resolution and high brightness display
  • MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs all on one screen.
  • Support AAC supplied, DOLBY
  • 800 MHz processor speed – 8MB Memory
  • 3000mAh 7.4V replaceable Lit-Ion Battery with up to 4 hours duration
  • Usb Memory Software upgrade and Frequncy Database update
  • Pc software for Frequency database update
  • 30 Catv , 30 Terresterial , 150 Sat programmable plan by PC or Local Keyboard.
  • 5000 frequency memory
  • Numeric Silicone keypad with backlight
  • Power save timer functions
  • Led Flash Light
  • Test Voltage levels for end user
  • Weight only 1.2 kg with battery
  • Size 190mm X 110mm X 45mm
  • Temperature range 0 °C to +50 °C
  • Humidity Up to 90% non condensing

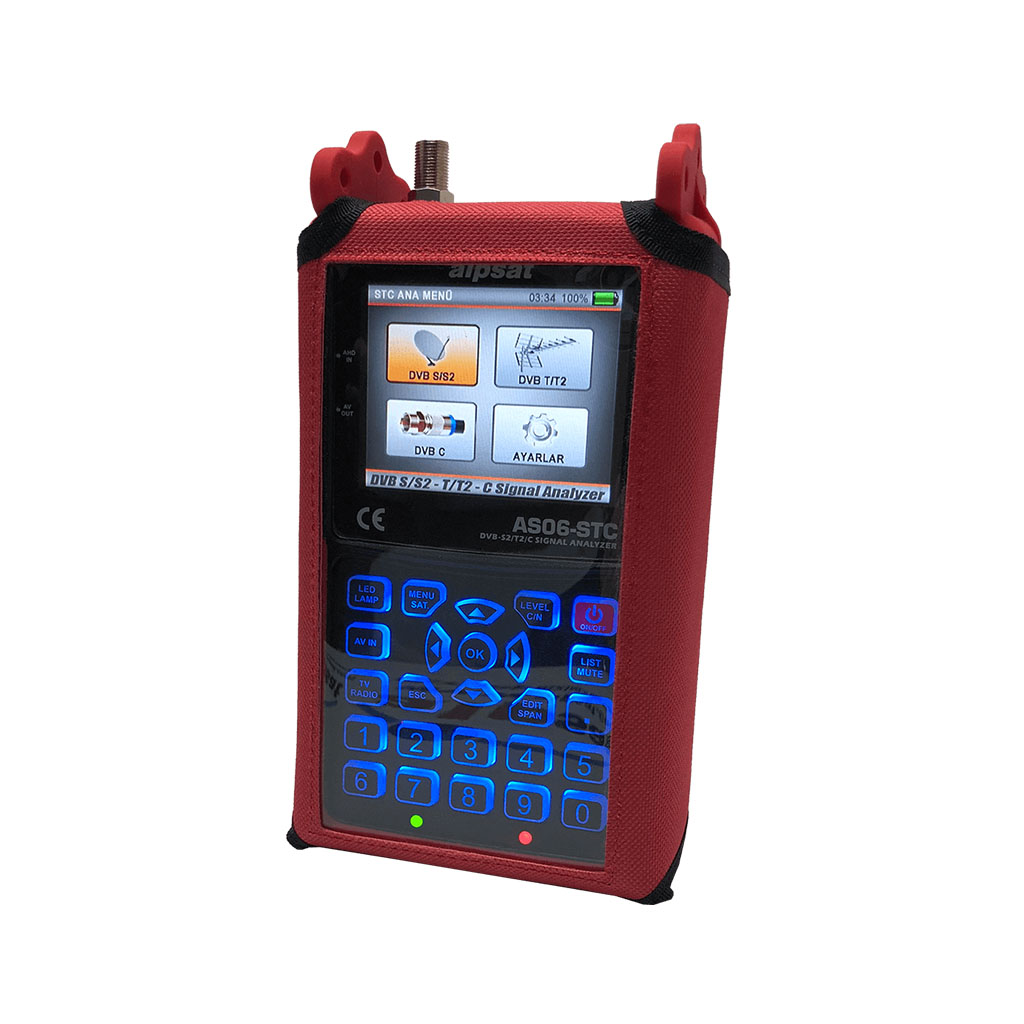

  • With silicone case and padded bag.
  • 12Volt 1.5A Charger and Car Lighter Charger

DIGITAL DVB-S / DVBS-2 SATELLITE SPECIFICATIONS

  • DVB-S/S2 Measuring SAT: 950 – 2150 Mhz
  • -80 to 0 dBm power measurment range
  • BER , MER , C/N digital measurments.
  • Level Measurement Accuracy 1 dB typ. (2.5 dB max.)
  • Spectrum Analyzer: Real Time Spectrum with capture
  • 50 , 75 , 150 , 300 , 600 , 1200mhz Spectrum Span
  • Automatically TP identifies NIT function in spectrum menu
  • Tp Control : 4 Tp’s Levels of one and two Satellite in one screen
  • Multi Sat Level Control: Dual Feed LNB 2 satellite’s levels in one screen
  • Satellite Constellation: Qpsk & 8psk for Sat.
  • Auto Port Scan: Diseqc 1.0-1.1-Unicable ports search for sat.
  • 150 satellite’s more than 2000 TP Frequency current database
  • Automatic Signal Quality analysis assistant
  • HD & SD Sat Tv Video
  • FEC: DVB-S:1/2, 2/3, 3/4, 5/6, 7/8 –
  • DVB-S2: 1/2, 2/3, 3/4, 5/6, 8/9, 9/10, 2/5, 3/5
  • Symbol Rate: 1 to 45MS/s Full automatic selection
  • DiSEqC 1.x, DiSEqC 2.x and USALS
  • Supports Diseqc 1.0-1.1-1.2-2.0 , USALS
  • Unicable 1&2 EN50494/EN50607
  • Lnb Power Supply : 13/18/21V – 500mA
  • Supports 32 Lnb Type
  • KA , KU, C , L / R band
  • dBm , dBuV and dBmV levels
  • Level warnings with buzzer

CHANNEL LIST

VIDEO AND INFO SCREEN

VIDEO AND SIGNAL LEVELS

CONSTELLATION EKRANI

SATELLITE SEARCH

SIGNAL REPORT

AUTO DISEQC PORT

MULTI LEVEL SCREEN

FULL BAND SPECTRUM

C/N SPECTRUM

1 SAT. TP CONTROL

2 SAT. TP CONTROL

CATV SPECIFICATIONS

  • DVB-C and Analog CATV Measuring  : 45 – 1002 MHz
  • -90 to 0 dBm power measurment range
  • BER , MER , C/N digital measurments.
  • Analog Catv level and V/A ratio 4dB to 26dB
  • Analog Audio carrier 4,5MHz, 5,5 MHz, 6,0 MHz, 6,5 MHz
  • Level Measurement Accuracy 1 dB typ. (2.5 dB max.)
  • Spectrum Analyzer: Real Time Spectrum with capture
  • 15 , 30 , 50 , 100 , 200 , 500 , 1000mhz Spectrum Span
  • Automatically TP identifies NIT function in spectrum menü
  • TILT / LIMIT Function for full band
  • Automaticly scan and prapare search table
  • Edit Frequency Plan database by Pc or Keypad
  • Catv Constellation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
  • DVB-C & QAM Annex A/C
  • Symbol rate: 2 to 6.999MS/s – Automatic selection
  • 6 MHz, 7 MHz, 8 MHz Channel Bandwidth
  • 30 Frequency Plan more than 4000 TP Frequency
  • Automatic Signal Quality analysis assistant
  • HD & SD CATV Digital Video
  • dBm , dBuV and dBmV levels
  • Level warnings with buzzer

CHANNEL LIST

VIDEO AND INFO SCREEN

VIDEO AND SIGNAL LEVELS

CATV SINGAL LEVELS

C/N SPECTRUM

FULL BAND SPECTRUM

TILT / LIMIT SCREEN

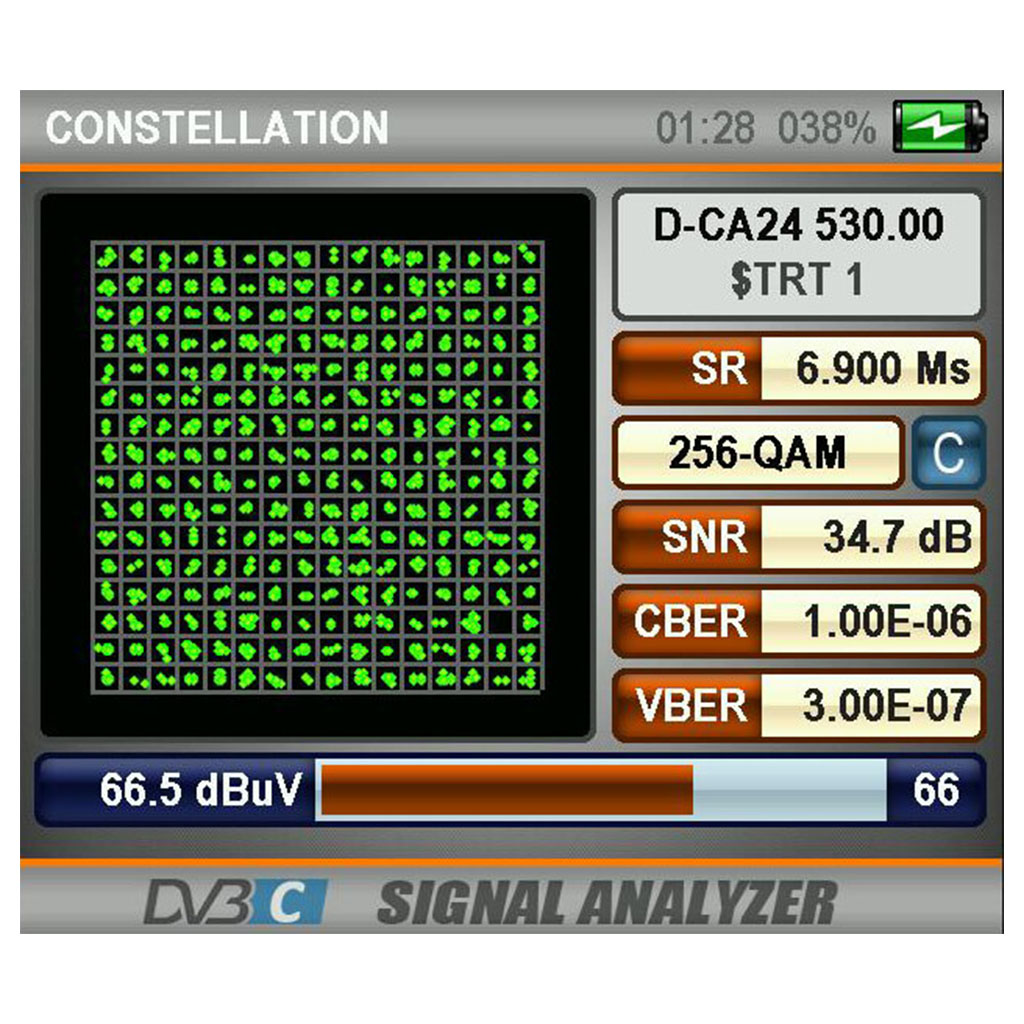

CONSTELLATION SCREEN

TERRESTERIAL SPECIFICATIONS

  • DVB-T/T2 and Analog Terresterial Measuring : 45 – 1002 MHz
  • -90 to 0 dBm power measurment range
  • BER , MER , C/N digital measurments.
  • Analog Terresterial level and V/A ratio 4dB to 26dB
  • Analog Audio carrier 4,5MHz, 5,5 MHz, 6,0 MHz, 6,5 MHz
  • Level Measurement Accuracy 1 dB typ. (2.5 dB max.)
  • Spectrum Analyzer: Real Time Spectrum with capture
  • 15 , 30 , 50 , 100 , 200 , 500 , 1000mhz Spectrum Span
  • Automatically TP identifies NIT function in spectrum menü
  • TILT / LIMIT Function for full band
  • Automaticly scan and prapare search table
  • Edit Frequency Plan database by Pc or Keypad
  • Terr Constellation: QPSK, 16QAM, 64QAM (DVB-T) 256QAM (DVB-T2)
  • FEC : DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 , DVB-T2:1/2, 2/3, 3/4, 5/6, 7/8, 3/5, 4/5
  • 1.7 MHz , 5MHz , 6 MHz, 7 MHz, 8 MHz Channel Bandwidth
  • 30 Frequency Plan more than 4000 TP Frequency
  • 5V , 12V , 20V/250mA antenna power supply
  • Automatic Signal Quality analysis assistant
  • HD & SD TERR Digital Video
  • dBm , dBuV and dBmV levels
  • Level warnings with buzzer

CHANNEL LIST

VIDEO AND SIGNAL LEVELS

TERRESTRIAL SIGNAL LEVELS

TILT / LIMIT SCREEN

SPECTRUM ANALYZER

FULL BAND SPECTRUM

FREQUENCY SCAN TABLE

CONSTELLATION SCREEN

AHD -TVI - CVI - Analog CCTV Camera Input:

  • 8MP AHD Cameras
  • 8MP TVI Cameras
  • 5MP CVI Cameras
  • 576px Analog Video Input

PC EDITOR SOFTWARE

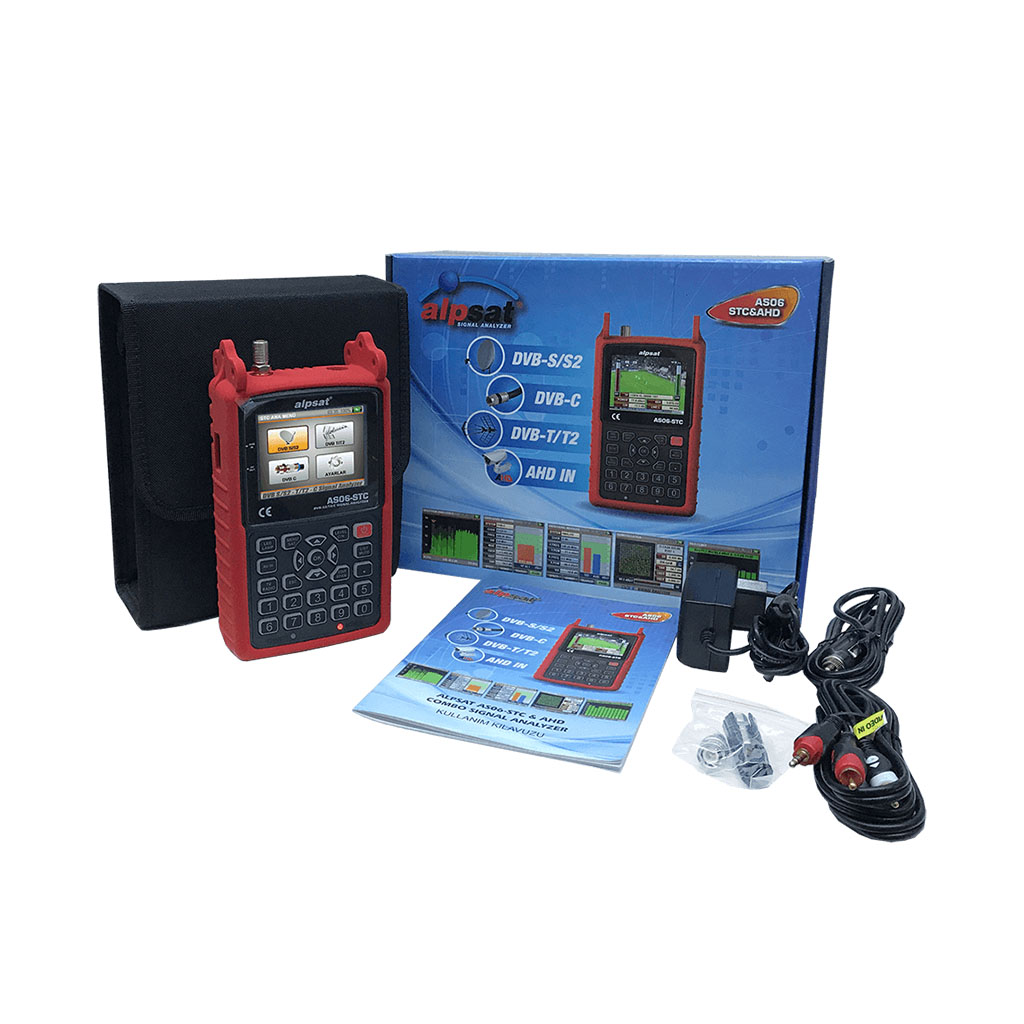

BOX INCLUDES

1 piece Black ALPSAT AS06-STC
1 piece Red Silicone Cover
1 piece Red Cover Bag
1 piece Black Carrying Bag
1 piece Audio-Video Cable
1 piece F-F Connector
1 piece Bnc Connector
1 piece Turnings Aparatus
1 piece Charge Adaptor
1 piece Car Charge Cable
1 piece English-German-Turkish User Guide

REVIEW VIDEOS

FILES AND DOCUMENTS

File Name Version Date Software Firmware Manual Brochure
AS06-STC&AHD v2.995 15.06.2022  Download  Open  Download  Open  Download
AS06-STC&AHD V2.91 22.02.2020  Download  Open  Download  Open  Download
AS06-STC&AHD v2.90 23.06.2019  Download  Open  Download  Open  Download
AS06-STC&AHD v2.86 29.03.2019  Download  Open  Download  Open  Download
AS06-STC&AHD v2.84 12.03.2019  Download  Open  Download  Open  Download
AS06-STC&AHD v2.84 12.03.2019  Download  Open  Download  Open  Download
AS06-STC&AHD v2.82 23.09.2018  Download  Open  Download  Open  Download
